MTD 13785-8 (1988) Lawn Tractor

Model: 13785-8 (1988)

Back To Assemblies

Save Part Not Listed?
product name

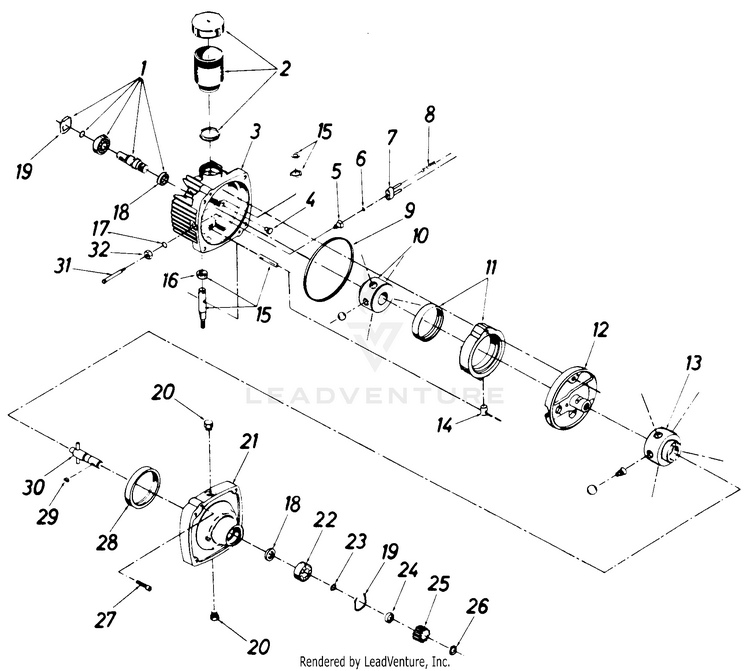

Hydrostatic

...
...
1
KIT-INPUT MTD-ET-990067-000
...
2
KIT RESERVOIR MTD-ET-990077-000
...
3
Kit Cover MTD-ET-990176-000
...
4
Button MTD-ET-101597-000
...
5
O-RING-GUI MTD-ET-024234-000
...
6
O-RING MTD-ET-008761-010
...
7
Bracket Pins Subassembly MTD-ET-024166-000
...
8
Valve Spring MTD-ET-072149-000
...
9
RING-SQ CU MTD-ET-008771-162
...
10
PUMP ROTOR MTD-ET-022712-000
...
11
Cam Ring Subassembly MTD-ET-102449-000
...
12
PINTLE SUBASSEMBLY MTD-ET-102532-000
...
13
MOTOR ROTOR BALL S MTD-ET-104111-000
...
14
Cam Ring Insert MTD-ET-095203-000
...
15
KIT-CONTRO MTD-ET-990083-000
...
16
OIL SEAL MTD-ET-093895-000P
...
17
O-RING MTD-ET-008761-013
...
18
OIL SEAL -3 MTD-ET-093955-000
...
19
Retaining Ring MTD-ET-091231-000
...
20
RING-PLUG MTD-ET-025090-006
...
21
Body MTD-ET-032278-000
...
22
BALL BEARING (Output) MTD-ET-090797-000
...
23
SNAP RING MTD-ET-097121-000
...
24
Spacer MTD-ET-095202-000
...
25
DRIVE GEAR MTD-ET-040511-000
...
26
RING-RETAI MTD-ET-096098-066
...
27
Socket Hd. Scr. 5/16-18 x 1.25" Lg. MTD-ET-095912-125
...
28
RACE-MOTOR MTD-ET-040519-000
...
29
WOODRUFF KEY #3 MTD-ET-009476-000
...
30
SHAFT-OUTP MTD-ET-022892-000
...
31
SHAFT-DUMP MTD-ET-062240-000
...
32
NUT-GASKET MTD-ET-024235-000
