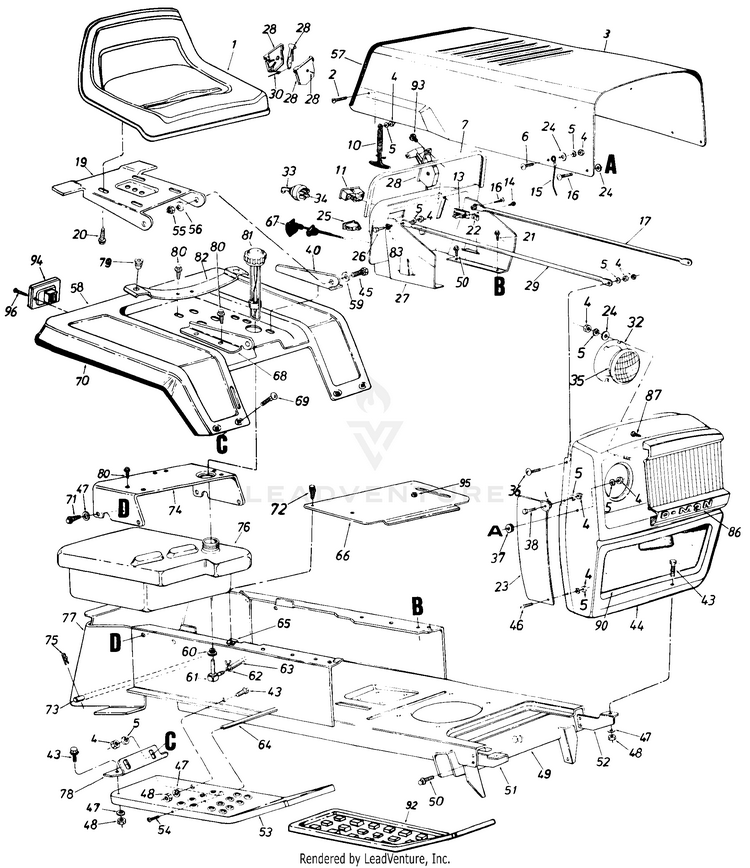

MTD 13785-7 (1987) Lawn Tractor

Model: 13785-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
SEAT-W/RNF MTD-757-0336
...
2
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
3
HOOD MTD-13808
...
4
HEX NUT 1/4-20 MTD-912-0287
...
5
L-Wash. 1/4" I.D. MTD-936-0329
...
6
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
7
Vinyl Molding Strip 29" MTD-731-0511
...
10
HOOD LOCK ASSEMBLY MTD-723-0296
...
11
Ammeter MTD-925-0925
...
13
CIRCUIT BREAKER MTD-753-0685
...
14
Hex Tap Scr. #10 x .50" Lg. MTD-710-0351
...
15
HOOD STOP MTD-727-0199
...
16
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
17
BRACE-BOTTOM MTD-749-0651
...
xx
FOAM STRIP MTD-722-0157
...
19
SEAT PIVOT BRACKET MTD-783-0039A
...
20
Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg. MTD-710-0623
...
21
Hex Thd. Rolling Scr. 1/4" x .50" Lg. MTD-710-0599
...
22
NUT-HEX JAM MTD-712-0344
...
23
Grille Side Panel R.H. MTD-14748
...
xx
Grille Side Panel L.H. (Not Shown) MTD-14749
...
24
Fl-Wash. 1/4" I.D. MTD-736-0173
...
25
Light Switch MTD-925-0634
...
26
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
27
DASH PANEL ASS'Y. MTD-16427
...
28
Throttle Control Box Ass'y. MTD-831-0823A
...
29
BRACE-BOTTOM MTD-749-0651
...
30
35" THROTTLE CABLE MTD-946-0503
...
xx
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
32
RING HOLDE MTD-09960
...
33
Key MTD-925-0201
...
34
Ignition Switch MTD-925-0267B
...
35
Head Light MTD-925-0222
...
36
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
37
RUBBER WASHER MTD-735-0144
...
38
Truss Mach. Scr. 1/4-20 x .5" MTD-710-0286
...
40
BRACKET-SE MTD-15803
...
43
Hex Scr. 5/16-18 x .75" Lg. MTD-710-0118
...
44
Grille Ass'y. MTD-14044
...
45
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
46
Truss Mach. Scr. 1/4-20 x .5" MTD-710-0286
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
LOWER FRAME ASS'Y. MTD-13820
...
50
Hex Thd. Rolling Scr. 5/16" x.75" Lg. MTD-710-0726
...
51
BRACKET-GR MTD-13862
...
52
BRACKET-GR MTD-13863
...
53
RUNNING BOARD R.H. MTD-13828
...
xx
RUNNING BOARD L.H. (Not Shown) MTD-13827
...
54
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
55
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
56
Bell-Wash. .34" I.D. x .88 O.D. MTD-736-0242
...
57
Vinyl Moulding Strip 30" MTD-731-0511
...
58
Fender Ass'y. MTD-16448
...
59
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
60
BUSHING (Gas Tank) MTD-935-0149
...
61
90ø Nipple MTD-751-3054
...
62
HOSE CLAMP MTD-726-0207
...
63
FUEL HOSE 1/4-24" MTD-751-22813-24
...
64
ROD-RUNNING BOARD MTD-738-0435
...
65
Speed Nut #10-24 MTD-712-0147
...
66
Transmission Cover Ass'y. MTD-17151
...
67
Choke Control 44.0" Lg. MTD-946-0613A
...
68
BRACKET-SE MTD-15802
...
69
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
70
Trim Strip 81" Lg. MTD-731-0511
...
71
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
72
Truss Hd. Scr. #10 x .50" Lg. MTD-710-0351
...
73
HITCH ROD MTD-738-0482
...
74
CHANNEL-SE MTD-15849
...
75
Internal Cotter Pin MTD-714-0147
...
76
FUEL TANK MTD-751-0367
...
77
HITCH PIATE MTD-13813
...
78
BRACKET-FENDER (RH) MTD-15846
...
xx
Fender Brkt. L.H. (Not Shown) MTD-15847
...
79
GROMMET MTD-731-0555
...
80
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0607
...
81
CAP W/GAUGE-GAS MTD-751-0370
...
82
Seat Spring MTD-732-0431
...
83
External Wash. 1/4" I.D. MTD-736-0222
...
86
Headlight Bezel MTD-731-0501
...
87
SCREW-TRUSS MACH AB-TAPP #8 X MTD-710-0200
...
90
GRILLE INSERT MTD-13730
...
92
FOOT PAD-LARGE MTD-731-0755
...
93
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
94
TAIL LAMP MTD-725-1128
...
95
BUSHING MTD-731-0405
...
96
SCREW #6-20 x .625 MTD-710-0936
