MTD 13785-7 (1987) Lawn Tractor

Model: 13785-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

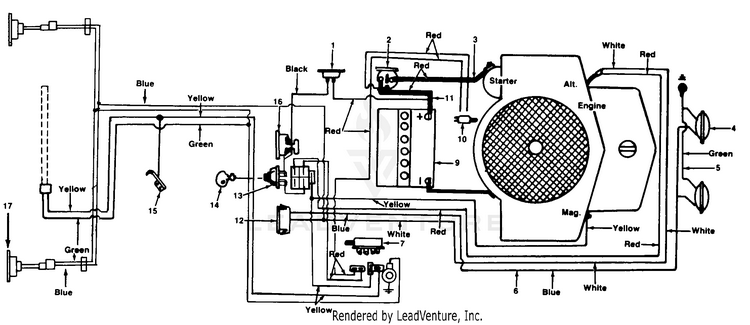

Electrical

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
Solenoid MTD-925-0771
...
3
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
4
Head Light MTD-925-0222
...
5
WIRE MTD-725-0916A
...
6
WIRE HARNESS MTD-725-1131
...
7
Safety Switch MTD-925-0465A
...
xx
WIRE ASSEMBLY (BLACK) (#6X14) MTD-629-0739
...
9
BATTERY MTD-725-0453
...
10
SWITCH MTD-925-0268
...
11
Wire MTD-725-0563
...
12
Light Switch MTD-925-0634
...
13
Ignition Switch MTD-925-0267B
...
14
Key MTD-925-0201
...
15
SAFETY SWITCH KIT MTD-725-0759
...
16
Ammeter MTD-925-0925
...
17
TAIL LAMP MTD-725-1128
