MTD 13765-9 (1989) Lawn Tractor

Model: 13765-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

46"

...
...
1
STABILIZER-DECK MTD-17347-0637
...
2
BRACE-DIAGONAL MTD-17264
...
3
BRACKET-CH Optional MTD-16521
...
4
CHUTE DEFLECTOR Optional MTD-753-0567
...
5
PLATE-CHUT MTD-16757
...
6
DECK ASSEM MTD-17218C
...
xx
46" DECK ASS'Y. COMP. MTD-17212
...
7
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
8
Hinge Pin MTD-911-0792
...
9
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
11
TORSION SPRING Optional MTD-732-0542
...
12
SPRING WASHER BELL MTD-736-0270
...
13
CONNECTING ROD MTD-738-0392
...
15
Screw, 5/16-18 x .625 MTD-710-0604A
...
16
IDLER MTG. BRKT. MTD-17261
...
17
Hex Bolt 5/16-24 x 1" Lg. (Spec.) MTD-710-0888
...
18
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
19
Hex Nut 5/16-24 Thd. MTD-912-3057
...
20
Lock Wash. 5/16" I.D. MTD-936-0119
...
21
Bell-Wash. 5/16" I.D. MTD-736-0242
...
22
SPINDLE ASSEMBLY (RH) (R.H. & Center) MTD-917-0912
...
23
SPINDLE ASSEMBLY (LH) (L.H.) MTD-717-0913
...
26
Hex Bolt 5/16-24 x 1.0" Lg. (Spec.) MTD-710-0888
...
27
HHCS:3/8-24:.875:GR8:STD MTD-710-0696
...
28
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
31
14.88" BLADE MTD-942-0486
...
32
HIGH LIFT BLADE 16.28" MTD-742-0487
...
33
Blade Adapter MTD-748-0300
...
35
Deck Brake Brkt. Ass'y. MTD-97116
...
36
Idler Bracket MTD-17213A-0637
...
37
RH Belt Cover, Deck 46" MTD-17258E
...
38
BELT KEEPER BRACKET MTD-17260
...
39
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
40
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
41
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
42
Hex Wash. Hd. Tap-Scr. 1/4 -20 x .5" Lg. MTD-710-0599
...
43
Hex Bolt 5/16-24 x 1.25" Lg. (Grade 5) MTD-710-0672
...
44
SCREW 1/4-28 x 1.50 GR5 MTD-710-0698
...
46
BELT GUARD ROD MTD-711-0747
...
47
HEX NUT MTD-712-0117
...
48
Hex Nut 5/16-24 Thd. MTD-912-3057
...
49
Hex Nut 1/4-28 Thd. MTD-712-0138
...
50
Hex Nut 3/8-24 Thd. MTD-712-0241
...
51
HEX NUT 1/4-20 MTD-912-0287
...
52
HEX JAM NUT 5/8-18 MTD-712-0318
...
53
CABLE ASSEMBLY MTD-727-0426
...
54
Extension Spring 6.17" Lg. MTD-932-0594A
...
55
Extension Spring 3.97" Lg. MTD-932-0429A
...
56
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
57
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
60
Bell-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317
...
61
L-Wash. 1/4" I.D. MTD-936-0329
...
62
FLAT WASHER .323 ID x 3 x .125 MTD-736-0416
...
63
Shld. Spacer .625" I.D. MTD-938-0347
...
64
Shld. Spacer MTD-748-0234
...
65
SPACER MTD-750-0214
...
66
Spacer.326" I.D. MTD-750-0470
...
67
V-Belt MTD-954-0349
...
68
V-Belt MTD-954-0350
...
69
Fl-ldler w/Flanges 3.50" O.D. MTD-956-0365
...
70
PULLEY-5.00 DIA MTD-756-0519
...
71
PULLEY MTD-756-0520
...
72
Clevis Pin 1/4" Dia. x .53" Lg. Not used on electric clutch models MTD-911-0701
...
73
Hex Nut 3/8-16 Thd. Not used on electric clutch models MTD-712-0798
...
74
Intern. Cotter Pin 5/16" Dia tt MTD-714-0104
...
75
Intern. Cotter Pin 3/8 Dia. MTD-714-0145
...
76
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
77
Deck Wheel w/Insert 5" Dia. MTD-753-04856A
...
78
L-Wash. 3/8" I.D. MTD-736-0169
...
79
Fl-Wash..531" I.D. MTD-736-0192
...
80
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
81
Shoulder Bolt MTD-938-3056
...
82
Hex Wash. Hd. Tap-Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
83
Torsion Spring MTD-732-0602A
...
84
Hinge Mtg. Brkt. MTD-703-1693A
...
85
PUSH NUT MTD-726-0106
...
86
CHUTE ASSEMBLY MTD-631-05229
...
87
Spacer 5/8" I.D. x 7/8" O.D. MTD-950-0932A

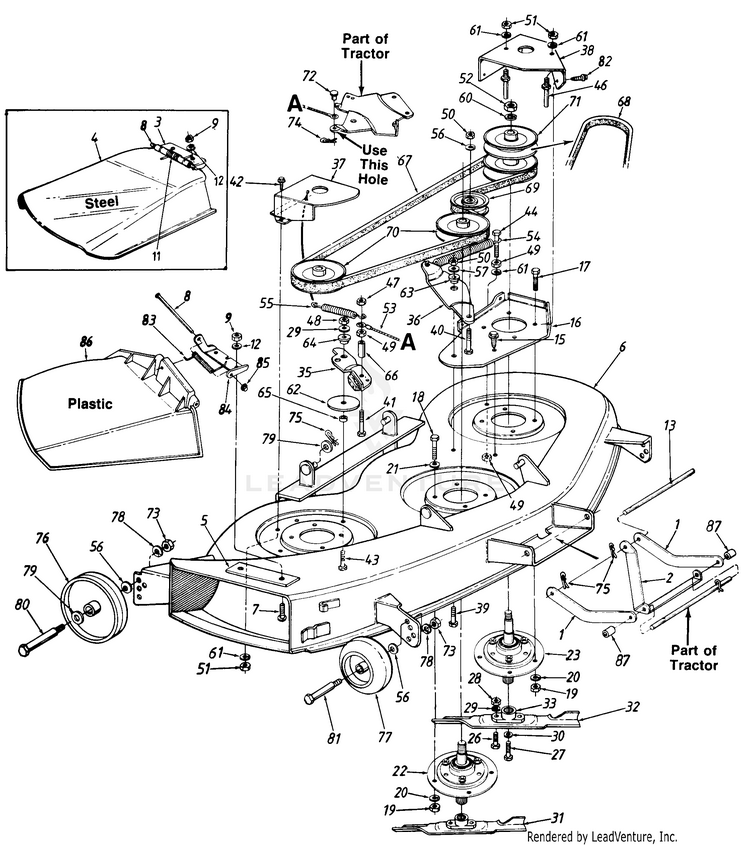

Schematic Image Zoomed
