MTD 13765-9 (1989) Lawn Tractor

Model: 13765-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
STEERING COLUMN ASS Y. MTD-16512
...
2
Lower Steering Shaft MTD-938-0763
...
3
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
5
HEX NUT 5/8-18 MTD-712-0337
...
6
Steering Gear Segment MTD-717-0943C
...
7
Bell-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317
...
8
Hex Nut 3/8-24 Thd. MTD-712-0241
...
9
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
STEERING SEGMENT MTD-738-0768
...
12
Fl-Wash. .64" I.D. x 1.24" O.D. MTD-736-0187
...
13
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A
...
14
Ball Joint, 3/8-24 MTD-923-3018
...
15
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
16
IDLER BRACKET MTD-16888A-0637
...
17
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343
...
18
SPACER MTD-950-0532
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
Hex Nut 5/16-24 Thd. MTD-912-3057
...
21
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
22
BRACKET-BE MTD-16894
...
23
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
24
SCREW 3/8-24 x .80 MTD-710-0793
...
25
Screw, 5/16-18 x .625 MTD-710-0604A
...
26
DRAG LINK KIT MTD-753-0674
...
27
PLATE-PIVOT MTD-16896
...
28
PLATE-PIVOT MTD-16897
...
29
Hex Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
30
STEERING ARM ASSEMBLY BLACK MTD-983-0061A-0637
...
31
ROD-DECK CONNECTING MTD-738-0777A
...
32
Pivot Bar Shld. Bolt 3/8-16 x 5/8" Lg. MTD-738-0775
...
33
Hub Cap MTD-931-0484A
...
34
COTTER PIN-5/32 DIA x 1.00 MTD-914-0121
...
35
Flat Washer MTD-736-0316
...
36
Flange Brg. .757" I.D. MTD-741-0523
...
37
TIE ROD MTD-747-0721
...
38
BAR ASSY-PIVOT (POWDER BLACK) MTD-96843-0637
...
39
PIVOT SUPPORT BRACKET BLACK MTD-16889A-0637
...
40
Pivot Bar Support Brkt.-Rear MTD-16890A-0637
...
41
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0188
...
42
Front Axle Ass'y. L.H. MTD-738-0781
...
43
FRONT AXLE AS,S'Y.-R.H. MTD-738-0782
...
44
Bowed Washer MTD-936-0286
...
45
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160
...
46
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331
...
47
Hex Nut 3/8-16 Thd. MTD-712-0798
...
48
NEEDLE BEARING MTD-941-0515
...
49
Fl-Wash. .71" I.D. x 1.5" O.D. MTD-736-0316
...
50
WHEEL ASS'Y. COMP. MTD-734-1570
...
xx
TIRE-15 x 6 MTD-734-0864
...
51
634-0023 W MTD-734-1568
...
52
PUSH CAP MTD-926-0271
...
53
HOLD DOWN BATTERY ROD MTD-911-0222A
...
54
CARRIER-BA MTD-13379
...
55
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
HEX NUT 1/4-20 MTD-912-0287
...
58
BATTERY MTD-725-0453A
...
59
BATERY COVER MTD-731-0707
...
60
Wing Nut 1/4-20 Thd. MTD-912-0113
...
61
STEERING BELLOW MTD-731-0559B
...
xx
FLAT WASHER MTD-736-0418
...
64
STEERING WHEEL MTD-731-0806A
...
65
Steering Wheel Cap MTD-931-0220
...
66
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
67
FRAME-LOWE MTD-17359
...
68
PIVOT BAR END CAP MTD-731-1049
...
69
Grease Fitting MTD-737-0146
...
xx
Internal Cotter Pin MTD-714-0149B
...
71
Hub Cap MTD-931-0484A
...
73
Oval Hd. Cr.-Sunk Scr. #10 x 5/8" Lg. MTD-710-0837
...
74
FLANGE BEARING MTD-741-0356A
...
75
TUBELESS VALVE MTD-934-0255

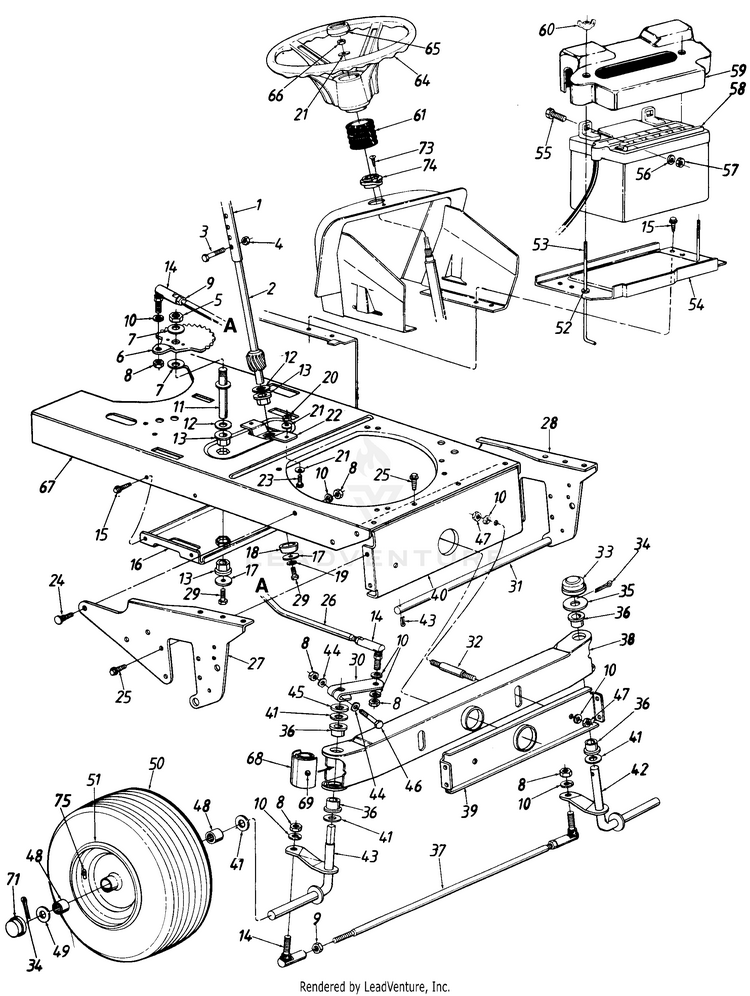

Schematic Image Zoomed
