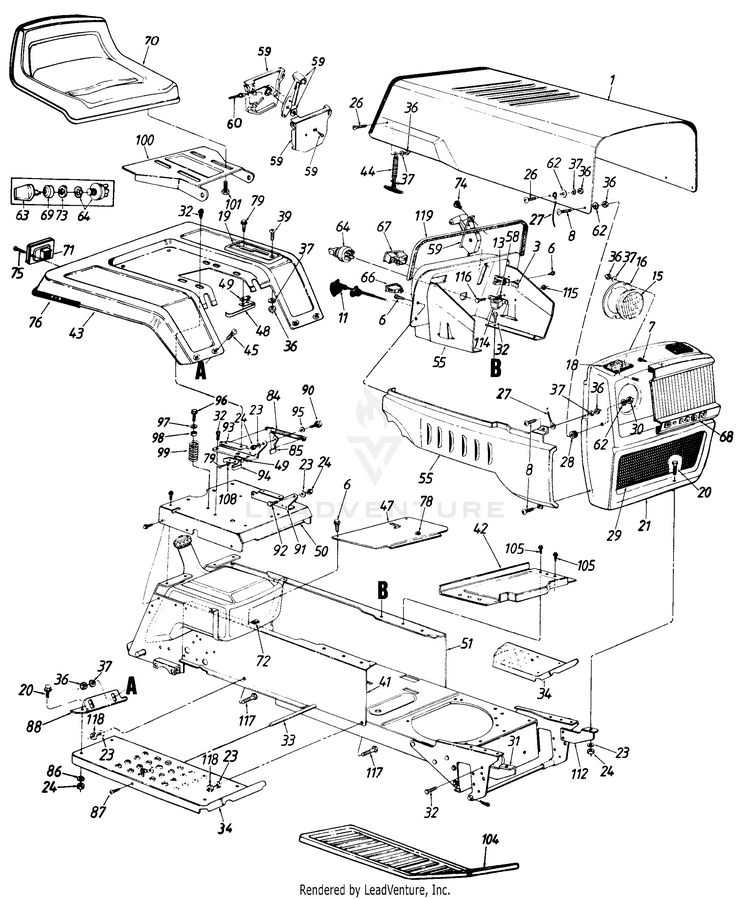

MTD 13765-9 (1989) Lawn Tractor

Model: 13765-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
HOOD MTD-13808
...
3
NUT-HEX JAM MTD-712-0344
...
6
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
7
SCREW-TRUSS MACH AB-TAPP #8 X MTD-710-0200
...
8
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
11
Choke Control 44.0" Lg. MTD-946-0613A
...
13
CIRCUIT BREAKER 20 AMP MTD-725-1382
...
15
Head Light MTD-925-0222
...
16
RING HOLDE MTD-09960
...
18
FOAM STRIP MTD-722-0157
...
19
BRACKET-INDEX SPEED MTD-731-1070
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
Grille MTD-14044
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
26
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
27
HOOD STOP MTD-727-0199
...
28
RUBBER WASHER MTD-735-0144
...
29
INSERT-GRILLE MTD-731-0881
...
30
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
31
BRACKET-GR MTD-13862
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
33
ROD-RUNNING BOARD MTD-738-0435
...
34
RUNNING BOARD (RH) MTD-16922
...
xx
RUNNING BOARD (LH) MTD-16921
...
36
HEX NUT 1/4-20 MTD-912-0287
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
39
Truss Mach. Scr. 1/4-20 x .62" Lg. MTD-710-0946
...
41
R.H SIDE FRAME MTD-17360
...
42
CARRIER-BA MTD-13379
...
43
629 Rear Fender MTD-17425
...
44
HOOD LOCK ASSEMBLY MTD-723-0296
...
45
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
47
Transmission Panel MTD-17392
...
48
SAFETY SWITCH KIT MTD-725-0759
...
49
Insulatop Nut Plate MTD-926-0320
...
50
PIVOT BRACKET ASSEMBLY MTD-983-0108A-0637
...
51
L.H. SIDE FRAME MTD-17361
...
55
Side Cover R.H. MTD-731-1064
...
xx
Side Cover L.H. (Not Shown) MTD-731-1063
...
58
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
59
Throttle Control Box Ass'y. MTD-831-0823A
...
60
Throttle Wire MTD-946-0634
...
62
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
63
KEY WOGO-YM MTD-725-1123
...
64
Ignition Switch MTD-925-0267B
...
xx
Dash Panel MTD-16942
...
66
Light Switch MTD-925-0634
...
67
Ammeter MTD-925-0925
...
68
Headlight Bezel MTD-731-0501
...
69
Ignition Switch Cap MTD-725-1347
...
70
SEAT MTD-957-0360A
...
71
TAIL LAMP MTD-725-1128
...
72
Speed Nut #10Z MTD-726-0139
...
73
IGNITION SWITCH NUT MTD-925-1346
...
74
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
75
SCREW #6-20 x .625 MTD-710-0936
...
76
Trim Strip 81" MTD-731-0511
...
78
BUSHING MTD-731-0405
...
79
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
84
Extension Spring MTD-932-0581B
...
85
BRACKET-SEAT LIFT MTD-17239C
...
86
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
87
Truss Machine Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
88
BRACKET-FENDER (RH) MTD-15846
...
xx
Fender Bracket L.H. MTD-15847
...
90
Shld. Bolt .437" Dia. x .268" MTD-738-0296
...
91
BRACKET-SE MTD-17243
...
92
Shoulder Bolt MTD-938-0155
...
93
BRACKET-SE MTD-17244
...
94
Outer Seat Spring Switch MTD-925-1303
...
95
Spr. Wash. 7/16" I.D. MTD-936-0141
...
96
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
97
Fl-Wash....344" I.D. MTD-736-0159
...
98
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
99
COMPRESSION SPRING MTD-732-0588
...
100
SEAT PIVOT BRACKET MTD-783-0039A
...
101
Hex Tap Scr. 3/8-16 x .75" MTD-710-0623
...
104
LARGE FOOT PAD MTD-731-1052
...
105
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
108
WASHER-FIBER MTD-736-0426
...
112
BRACKET-GR MTD-13863
...
114
Solenoid MTD-925-0771
...
115
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
116
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
117
Rib Neck Bolt 5/16-24 x .75" Lg. MTD-710-1012
...
118
Hex Nut 5/16-24 Thd. MTD-912-3057
...
119
Trim Strip 29" Lg. MTD-731-0511
