MTD 13735-9 (1989) Lawn Tractor

Model: 13735-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...

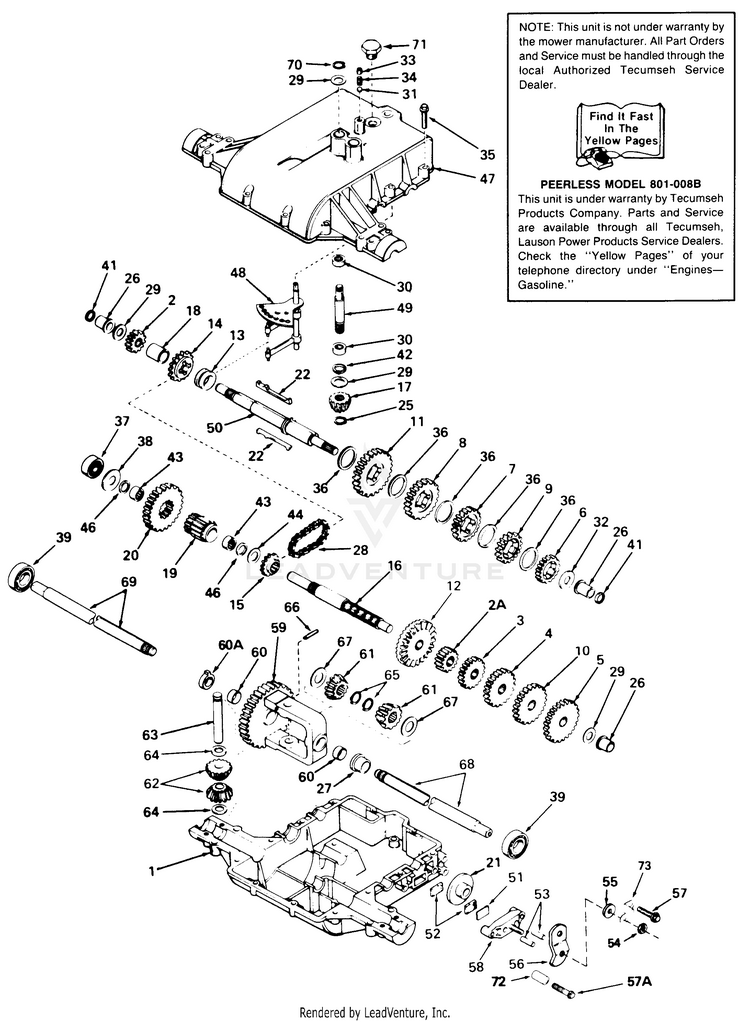

1
Case: Transaxle MTD-PE-770071A
...
2
Gear: Spur (15 teeth) MTD-PE-778136
...
2A
Gear: Spur (12 teeth) MTD-PE-778145
...
3
SPUR GEAR (20 TEET MTD-TC-778126A
...
4
SPUR GEAR (25 TEET MTD-TC-778127A
...
5
GEAR, SPUR (30 TEETH) MTD-PE-778129A
...
6
SPUR GEAR-20T MTD-TC-778121A
...
7
SPUR GEAR (25 TEET MTD-TC-778123A
...
8
SPUR GEAR (30 TEET MTD-TC-778124A
...
9
Gear: Spur (22 teeth) MTD-PE-778122A
...
10
Gear: Spur (28 teeth) MTD-PE-778128A
...
11
Gear: Spur (37 teeth) MTD-PE-778146A
...
12
SPUR GEAR-42T MTD-TC-778137A
...
13
COLLAR-SHIFT MTD-TC-784266
...
14
SPROCKET (18 TEET MTD-TC-786083
...
15
Sprocket (9 teeth) MTD-PE-786082
...
16
SHAFT MTD-TC-776204
...
17
BEVEL GEAR-INPUT MTD-TC-778113A
...
18
Spacer MTD-PE-786074
...
19
Pinion: Output MTD-PE-778138
...
20
Gear: Output MTD-PE-778139
...
21
Disk: Brake MTD-PE-790003
...
22
KEY MTD-TC-792089B
...
25
E-RINGXT RET .521 MTD-TC-788040
...
26
FLANGED BUSHING MTD-TC-780105A
...
27
BUSHING MTD-TC-780118A
...
28
CHAIN-ROLLER (No. 41 Chain: 24 Links) MTD-TC-786081
...
29
THRUST WASHER MTD-TC-780072
...
30
Bearing: Needle MTD-PE-780122
...
31
BALL-5/16 GRADE 20 MTD-TC-792077A
...
32
WASHER MTD-PE-780109
...
33
SCREW MTD-TC-792078
...
34
SPRING MTD-TC-792079
...
35
HEX SCREW HD TAP-1 MTD-TC-792073A
...
36
Shift Washer (Cupped) MTD-TC-780108
...
37
Bearing: Ball MTD-PE-780121
...
38
Washer: Flat MTD-PE-780113
...
39
Bearing: Ball MTD-PE-780119
...
41
Ring: Square Cut MTD-PE-788051
...
42
Ring: Square Cut MTD-PE-788057
...
43
Bearing: Needle MTD-PE-780112
...
44
Washer: Flat MTD-PE-780114
...
46
SEAL MTD-TC-788053
...
47
Cover: Transaxle MTD-PE-772082
...
48
Rod & Fork Ass'y.: Shift MTD-PE-784290
...
49
INPUT SHAFT MTD-TC-776140
...
50
Shaft: Brake MTD-PE-776184A
...
51
Plate: Brake Pad MTD-PE-790007
...
52
BRAKE PAD KIT (1 PKG = 2 PADS ) MTD-TC-799021
...
53
Pin, Dowel MTD-PE-786026
...
54
Locknut: 5/16-24 MTD-PE-792075
...
55
Washer: Flat MTD-PE-792076
...
56
Lever: Brake MTD-PE-790004
...
57
HEX SCREW HD TAP-1 MTD-TC-792073A
...
57A
Screw: Hex Hd. Thread Forming: 1/4-20 x 21/4 MTD-PE-792085
...
58
Holder: Brake Pad MTD-PE-790025
...
59
Gear Ass'y.: Differential (Incl. 2 of No. 60) MTD-PE-778053A
...
60
Bushing MTD-PE-780064
...
60A
Bushing MTD-PE-780120
...
61
Gear: Bevel MTD-PE-778166
...
62
Pinion: Bevel MTD-PE-778131
...
63
Pin: Drive MTD-PE-786034
...
64
Washer: Thrust MTD-PE-780065
...
65
Ring: Retaining MTD-PE-792125
...
66
Pin: Roll MTD-PE-792040
...
67
WASHER MTD-PE-780001
...
68
Axle (15-1/4" Long) MTD-PE-774643
...
69
Axle (13-3/8" Long) MTD-PE-774642
...
70
Retaining Ring MTD-TC-792035
...
71
PLUG MTD-PE-792074
...
72
Spacer MTD-PE-786066
...
73
Bracket: Brake Lever MTD-PE-786086
