MTD 13735-9 (1989) Lawn Tractor

Model: 13735-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Electrical

...
...
1
BATTERY MTD-725-0453A
...
2
Solenoid MTD-925-0771
...
3
CIRCUIT BREAKER 20 AMP MTD-725-1382
...
4
Ammeter MTD-925-0925
...
5
Ignition Switch MTD-925-0267B
...
6
Light Switch MTD-925-0634
...
7
SWITCH MTD-925-0268
...
8
Safety Switch MTD-925-0465A
...
9
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
10
Electric Wire 7.5" Lg. MTD-725-0563
...
11
6 GA. BLACK WIRE MTD-725-0996
...
12
Head Light MTD-925-0222
...
13
TAIL LAMP MTD-725-1128
...
14
Wire Harness MTD-725-1388
...
15
KIT-SAFETY SWITCH MTD-753-0580

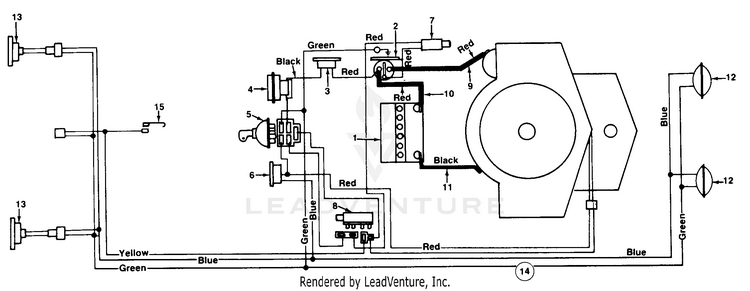

Schematic Image Zoomed
