MTD 13735-7 (1987) Lawn Tractor

Model: 13735-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

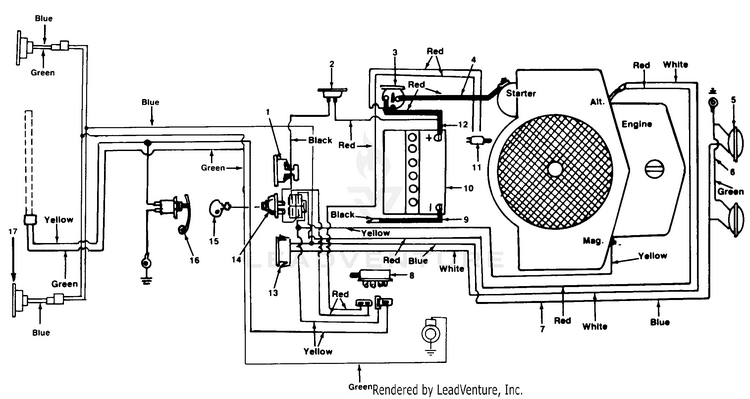

Electrical

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
Solenoid MTD-925-0771
...
3
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
4
SWITCH MTD-925-0268
...
5
WIRE MTD-725-0916A
...
6
Head Light MTD-925-0222
...
7
WIRE HARNESS MTD-725-1131
...
8
Safety Switch MTD-925-0465A
...
9
6 GA. BLACK WIRE MTD-725-0996
...
10
BATTERY MTD-725-0453
...
11
Wi re MTD-725-0563
...
12
Ammeter MTD-925-0925
...
13
Light Switch MTD-925-0634
...
14
Ignition Switch MTD-925-0267B
...
15
Key MTD-925-0201
...
16
KIT-SAFETY SWITCH MTD-753-0580
...
17
TAIL LAMP MTD-725-1128
