MTD 137-672-000 (Style 2) (1987) Lawn Tractor

Model: 137-672-000 (Style 2) (1987)

Back To Assemblies

Save Part Not Listed?
product name

Style 2), (573, 583, 553, 563, 663, 673, 683, 693

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
SAFETY SWITCH KIT MTD-725-0759
...
3
SAFETY SWITCH MTD-925-0819A
...
4
Key MTD-925-0201
...
5
Ignition Switch MTD-925-0267B
...
6
Light Switch MTD-925-0634
...
7
STRIP-FOAM 1/2X1.0 MTD-722-0135
...
8
Ammeter MTD-925-0925
...
9
WIRE ASSEMBLY (BLACK) (#6X14) MTD-629-0739
...
10
BATTERY MTD-725-0453
...
11
SAFETY SWITCH MTD-725-0577
...
12
WIRE MTD-725-0916A
...
13
HEADLAMP SOCKET MTD-925-1058A
...
16
Miniature Lamp 12V Socket Type MTD-925-0963
...
17
Wire Harness MTD-725-1179
...
18
Electric Wire 27.0" Lg. MTD-725-1080
...
19
WIRE ASSEMBLY (RED) (#6X32.5) MTD-629-0740
...
20
Solenoid MTD-925-0771

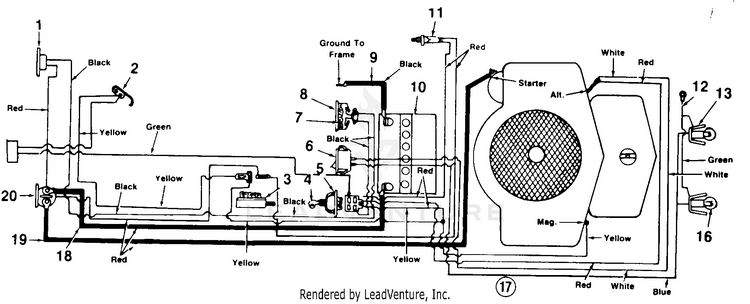

Schematic Image Zoomed
