MTD 13685-9 (1989) Lawn Tractor

Model: 13685-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...

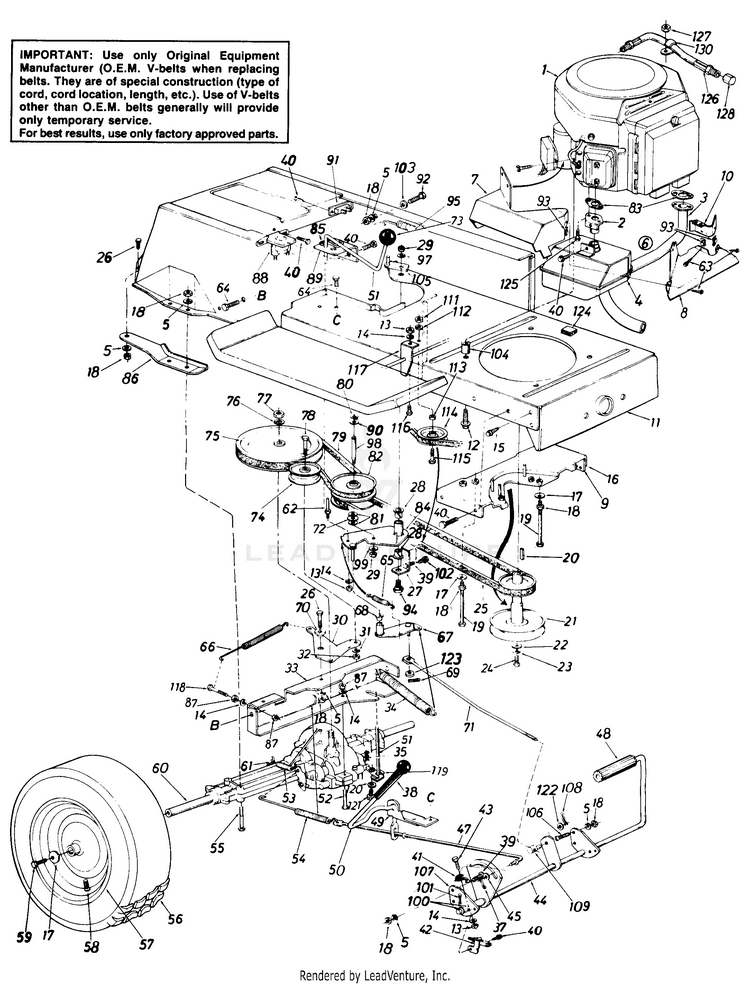

1
Engine MTD-NA
...
2
INLET TUBE ASSEMBLY MTD-751-0470
...
3
Formed Tube Ass'y. MTD-751-0471
...
4
MUFFLER SUB ASSEMBLY MTD-751-0472
...
5
Lock Wash. 5/16" I.D. MTD-936-0119
...
6
EXHAUST MUFFLER COMP. MTD-751-0469
...
7
Muffler Heat Shield MTD-16875
...
8
HEAT SHIELD-FR MTD-16876A
...
9
Brake Cable Brk't. MTD-16371
...
10
SHIELD-HEA MTD-16877
...
11
FRAME-LOWER MTD-15930B
...
12
Hex Wash. Hd. TT-Tap Scr. 3/8-16 Thd. MTD-710-1035
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Hex Wash. Hd. AB-Tap Scr. 5/16" x.75" Lg. MTD-710-0726
...
16
Belt Guard Brkt. Ass'y. MTD-16219A
...
17
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
Hex Bolt 5/16-18 x 4.00" MTD-710-0190
...
20
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
21
PULLEY MTD-756-0530
...
22
Fl-Wash. 7/16" I.D. x 1.25" MTD-736-0322
...
23
L-Wash. 7/16" I.D. MTD-736-0171
...
24
Hex Bolt 7/16-20 x 1.50" Lg. MTD-710-0757
...
25
Variable Speed Belt MTD-954-0280A
...
26
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
27
BEARING SHAFT BRACKET ASS'Y . MTD-16553
...
28
Flanged Brg. 5/8" I.D. MTD-741-0591
...
29
Hex Nut 3/8-24 Thd. MTD-712-0241
...
30
IDLER BRACKET MTD-15891C-0637
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Nut 3/8-24 Thd. MTD-712-0241
...
33
BRACKET-TRANS SUP MTD-15945E-0637
...
xx
Ext. Spring .94" O.D. x 6.7 MTD-732-0459C
...
35
Inter. Cotter Pin MTD-714-0149B
...
36
Fl-Wash. .34" I.D. x .62" O.D. x .033 MTD-736-0204
...
37
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
38
Grip Black MTD-720-0223
...
39
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
40
Hex Wash. Hd. Self-Tap Scr. 1/4-20 X .50" Lg. MTD-710-0599
...
41
SWITCH-ACTUATOR MTD-732-0582
...
42
SAFETY SWITCH MTD-725-0577
...
43
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
44
Clutch & Brake Pedal Ass'y. MTD-16235A
...
45
Fl-Wash. MTD-936-0117
...
xx
HEX SCREW 5/16-18 x 4.50 GR5 MTD-710-0402
...
47
BRAKE ROD MTD-747-0519
...
48
FOOT PAD MTD-735-0239A
...
49
BRACKET-BRAKE LEVER MTD-15889B
...
50
Hill Holder Brake Handle MTD-15888
...
51
SHIFT LEVE MTD-16430
...
52
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
53
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
54
Ext. Spring .59n O.D. x 7 08" MTD-932-0413
...
55
Hex Bolt 5/16-18 x 2.75" MTD-710-0176
...
56
WHEEL ASSEMBLY W/TIRE 18 x 9.5 x COLOR MTD-734-0817
...
xx
TIRE-18.0X9.50-8-DOGBONE TRD MTD-734-0448
...
57
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
58
TUBELESS VALVE (Service Only) MTD-934-0255
...
59
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
60
KIT-TRANSAXLE 1S MTD-717-1050
...
61
Brake Return Spring Anchor MTD-932-0722A
...
62
Belt Keeper, .25 DIA X 3.0 MTD-911-1000
...
63
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
64
Screw, 5/16-18 x .625 MTD-710-0604A
...
65
EXTENSION SPRING MTD-732-0568
...
66
EXTENSION SPRING MTD-932-0384
...
67
Variable Speed Torque Brkt. Ass'y. MTD-16554A-0637
...
68
FLANGE BEARING MTD-741-0419
...
69
Cotter Pin 3/32" Dia. MTD-714-0507
...
70
Shoulder Spacer .500" Dia. x.27" Lg. MTD-748-0234
...
71
CONTROL LINK MTD-747-0530A
...
72
THRUST BEARING MTD-941-0405
...
73
Knob MTD-920-0232
...
74
Fl-ldler Pulley 3.25" x 1.0" MTD-756-0643A
...
75
PULLEY MTD-756-0374
...
76
L-Wash. 1/2" I.D. MTD-736-0921
...
77
NUT MTD-712-3029
...
78
Hex Bolt 3/8-24 x .75" Lg. MTD-710-0539
...
79
Variable Speed Belt MTD-954-0281
...
80
Snap Ring .56" Dia. MTD-916-0114
...
81
Fl-Wash. MTD-736-0355
...
82
Variable Speed Pulley Ass'y. 5" O.D. MTD-917-0800A
...
83
Gasket-Exhaust MTD-BS-691613
...
84
BRACKET ASSEMBLY-VAR SP MTD-16354B
...
85
Comp. Spring Clip MTD-732-0525
...
86
BRACKET-AXLE SUP-R MTD-14770
...
xx
BRACKET-AXLE SUP-L (Not Shown) MTD-14769A
...
87
Hex Nut 1/4-28 Thd. MTD-712-0138
...
88
Solenoid MTD-925-0771
...
89
BRACKET-SHIFT LEVER MTD-16429A
...
90
Teflon Washer MTD-736-0414
...
91
CIRCUIT BREAKER 20 AMP MTD-725-1382
...
92
SCREW 5/16-18 x 1.50 GR5 MTD-710-0959
...
93
UNKNOWN MTD-NA
...
94
Shld. Bolt 3/8-24 x 3.12" Lg. MTD-938-0755
...
95
EXTENSION SPRING MTD-932-0307A
...
97
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
98
Shaft 56" Dia. x 3.875" Lg. MTD-938-0569
...
99
Bell-Wash. .39" I.D. x 1.12" MTD-736-0331
...
100
Fl-Wash. MTD-936-0256
...
101
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
102
Screw, 5/16-18 x .625 MTD-710-0604A
...
103
Fl-Wash. .34" I.D. x 1.12" O.D. MTD-736-0231
...
104
Spacer 5/1 6" I.D. MTD-750-0748
...
105
BELT GUARD MTD-16067
...
106
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
107
LIFT BRACKET PEDAL MTD-15835A
...
108
Cotter Pin 3/32 x .75" MTD-714-0507
...
109
Ferrule MTD-911-0198
...
111
Hex Nut 3/8"-16 Thd. MTD-712-0798
...
112
L-Wash. 3/8" I.D. MTD-736-0169
...
113
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
...
114
Fl-Idler w/Flanges 2.75" O.D. MTD-956-0217
...
115
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
116
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
117
Spring Hanger Bracket MTD-16181
...
118
HEX SCREW 1/4-28 x 1.25 GR5 MTD-710-0428
...
119
LINK ASSEMBLY MTD-16437A
...
120
SPRING WASHER BELL MTD-736-0270
...
121
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
122
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
123
FLAT WASHER MTD-736-0275
...
124
STRIP-FOAM-3/8X3/4X14 MTD-722-0155
...
125
Hex Bolt w/Washer MTD-710-1037
...
126
OIL DRAIN HOSE MTD-727-0434
...
127
Jam Nut, 3/8-16 MTD-912-3008
...
128
CAP - OIL DRAIN MTD-737-0143
...
130
CLIP-CABLE MTD-726-3009
