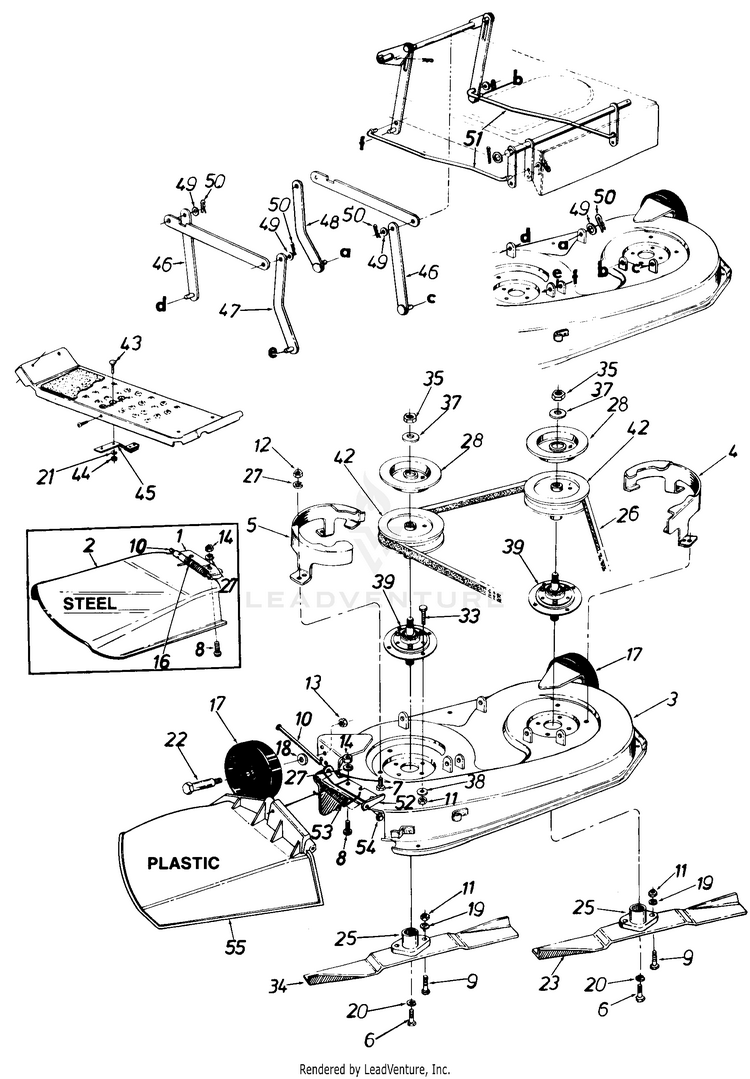

MTD 13685-9 (1989) Lawn Tractor

Model: 13685-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

38"

...
...
1
BRACKET-CH Optional MTD-16521
...
2
CHUTE DEFLECTOR Optional MTD-753-0567
...
3
DECK ASSEMBLY K MTD-16575A
...
xx
KIT-DECK 38" (For Service Only) MTD-801-6576
...
4
BELT GUARD MTD-16607
...
5
BEIT GUARD DECK-R.H. MTD-16608A
...
6
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
7
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
8
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
9
Hex Bolt Special 5/16-24 x 1.0" MTD-710-0888
...
10
Hinge Pin MTD-911-0792
...
11
Hex Nut 5/16-24 Thd. MTD-912-3057
...
12
Hex Nut 1/4-28 Thd. MTD-712-0138
...
13
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
14
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
16
TORSION SPRING Optional MTD-732-0542
...
17
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
18
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
21
L-Wash. 1/4" I.D. MTD-936-0329
...
22
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
23
19.38" BLADE (HI LIFT) MTD-942-0473A
...
25
Blade Adapter MTD-748-0300
...
26
V-Belt MTD-954-0329A
...
27
SPRING WASHER BELL MTD-736-0270
...
28
BRAKE DISC MTD-09322
...
33
BOLT 5/16X1.05 LG MTD-710-1013
...
34
19.38" BLADE (HI LIFT) MTD-942-0473A
...
35
HEX JAM NUT 5/8-18 MTD-712-0318
...
37
L-Wash. 518" I.D. MTD-736-0158
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
Blade Spindle Ass'y. Comp. (Incl. Ref. 33) MTD-753-05319
...
42
51" Dia. Pulley MTD-756-0486
...
43
Carr. Bolt 1/4-20 x .62 Not part of deck assembly complete MTD-710-0134
...
44
HEX NUT 1/4-20 Not part of deck assembly complete MTD-912-0287
...
45
Blade Brake Assembly Not part of deck assembly complete MTD-961-0168D
...
46
DECK HANGER LINK ASS'Y. Not part of deck assembly complete MTD-14804
...
47
HANGER-DECK L (Dog Leg) MTD-14800
...
48
DECK HANGER LINK ASS'Y. Not part of deck assembly complete MTD-15925
...
49
Fl-Wash. .53" I.D. x 93" 0.D. Not part of deck assembly complete MTD-736-0160
...
50
Inter. Cotter Pin .501 Dia. Not part of deck assembly complete MTD-714-0101
...
51
STABILIZER ROD Not part of deck assembly complete MTD-711-0790A
...
52
Hinge Mtg. Brkt. MTD-703-1693A
...
53
Torsion Spring MTD-732-0602A
...
54
PUSH NUT MTD-726-0106
...
55
CHUTE ASSEMBLY MTD-631-05229
