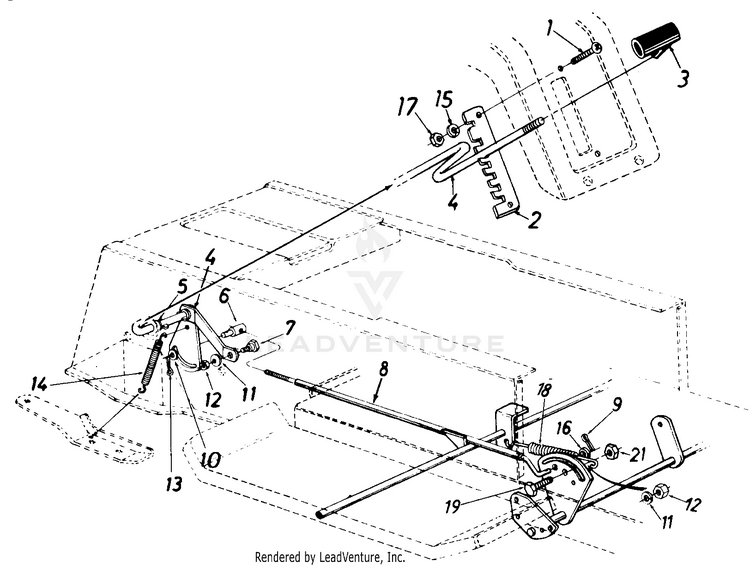

MTD 13665-7 (1988) Lawn Tractor

Model: 13665-7 (1988)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
Truss Mach. Scr. 1/4-20 x .62" Lg. MTD-710-0946
...
2
Speed Selector Plate MTD-17080
...
3
Shift Knob MTD-720-0209
...
4
Speed Selector Cam Ass'y. MTD-17088
...
5
Flat Washer .53" I.D. x .93" MTD-736-0192
...
6
Ferrule MTD-911-0198
...
7
Shoulder Bolt MTD-938-0155
...
8
SPEED CONTROL ROD MTD-16355
...
9
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
10
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Cotter Pin 3/32 Dia. x .75" MTD-714-0507
...
14
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
Fl-Wash. .47" I.D. x .88" O.D. MTD-736-0226
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
Ext. Spring 4.74" Lg. MTD-932-0470A
...
19
Hex Cap Bolt 5/16-18 x 1" Lg. (Grade 5) MTD-710-0376
...
21
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
