MTD 13665-7 (1988) Lawn Tractor

Model: 13665-7 (1988)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
SPRING-HOOD MTD-732-0559
...
2
HOOD MTD-16646
...
4
Fl-Wash. .203" I.D. MTD-736-0931
...
5
Hood Stop 7" Lg. MTD-723-0302
...
6
Pop Rivet .188 Dia. MTD-928-0123
...
7
BATERY COVER MTD-731-0707
...
8
BATTERY MTD-725-0453
...
9
HOLD DOWN BATTERY ROD MTD-911-0222A
...
10
BATTERY BRACKET MTD-12747
...
11
PVC FOAM MTD-722-0138
...
12
RING HOLDE MTD-09960
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Head Light MTD-925-0222
...
18
Hex Nut 3/8-16 Thd. MTD-712-0798
...
19
GRILLE MTD-14779
...
20
L-Wash. 3/8" I.D. MTD-736-0169
...
21
Shld. Bolt .50" Dia. x .84 MTD-738-0145
...
22
Lower Frame MTD-14606
...
23
GRILLE MOUNT BRKT. MTD-16643
...
24
Front Pivot Brkt. MTD-14619
...
25
GRILLE MOUNT BRKT MTD-16644
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
27
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
28
GRILLE INSERT MTD-13730
...
29
Running Board (R.H. & L.H.) MTD-14604
...
30
TAIL LAMP MTD-725-1128
...
31
FOOT PAD MTD-731-0753
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
36
Fender Mount Brace MTD-15848
...
37
Fender MTD-17087
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
FRAME-SIDE (RH) MTD-14602G-0637
...
41
FOAM STRIP MTD-722-0157
...
42
RETAINER-HOOD SPRI MTD-731-0895
...
43
SCREW #10-16 x .500 MTD-710-0697
...
44
SCREW #6-20 x .625 MTD-710-0936
...
45
L.H. SIDE FRAME MTD-14603
...
46
Shift Cover MTD-16433
...
47
SAFETY SWITCH KIT MTD-725-0759
...
48
Insulatop Nut Plate MTD-926-0320
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
SEAT-W/SWITCH-BL MTD-757-0333
...
59
Wing Nut 1/4-20 Thd. MTD-912-0113
...
60
Choke Control 44.0" Lg. MTD-946-0613A
...
61
Truss Mach. Tap Scr. #10 x .50" Lg. MTD-710-0351
...
62
Washer .39" I.D. x .62" O.D. MTD-736-0413
...
63
Hex Wash. Hd. AB-Tap Scr. #8 x .50 MTD-710-0227
...
64
SCREW-TRUSS MACH AB-TAPP #8 X MTD-710-0200
...
65
Bezel MTD-731-0501
...
69
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
70
PANEL-SIDE GRILLE MTD-16280
...
xx
PANEL-SIDE GRILLE MTD-16283
...
71
Dash Panel Ass y. MTD-16285
...
72
Throttle Control Box Ass'y. MTD-831-0823A
...
73
Throttle Wire MTD-946-0634
...
74
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
75
Ignition Switch MTD-925-0267B
...
79
Key MTD-925-0201
...
80
HEX SCREW 1/2-13X1.00 MTD-710-0865
...
81
L-Wash. 1/2" I.D. MTD-736-0921
...
82
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
83
SEAT SPRING MTD-732-0458
...
84
Light Switch MTD-925-0634
...
86
Ammeter MTD-925-0925
...
88
Molding Strip 27" Lg. MTD-731-0511
...
89
ROD-RUNNING BOARD MTD-738-0526
...
93
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
94
LOCK NUT 1/4 x 28 MTD-712-0380
...
95
Trim Strip 31.0" Lg. MTD-731-0511
...
97
Speed Nut #10Z MTD-726-0139
...
100
Brake Cable Bracket MTD-16371
...
101
Cable Tie MTD-726-0197

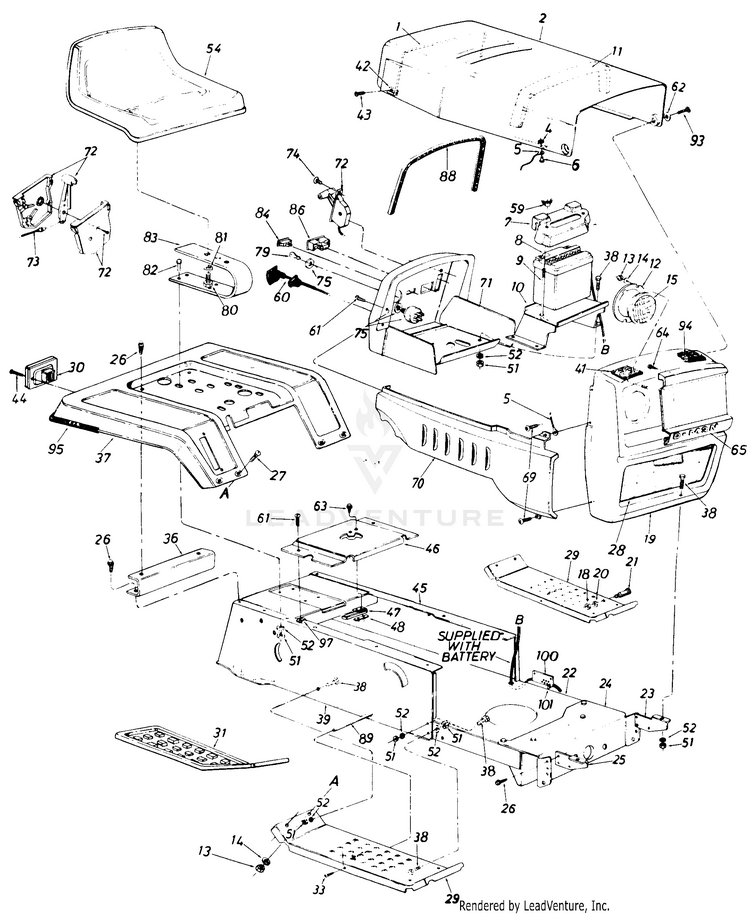

Schematic Image Zoomed
