MTD 13611S (1985) Lawn Tractor

Model: 13611S (1985)

Save Part Not Listed?
product name

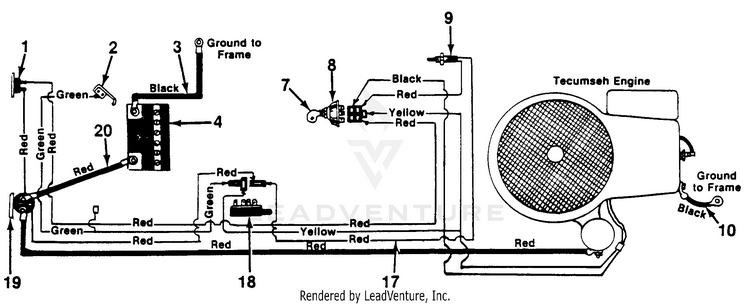

Electrical

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
SAFETY SWITCH KIT (Reverse Safety) MTD-725-0759
...
3
WIRE (Black Negative) MTD-725-0975
...
4
BATTERY MTD-753-0607
...
7
Key MTD-925-0201
...
8
Ignition Switch MTD-925-0267B
...
9
SWITCH (Clutch) MTD-925-0268
...
10
WIRE (Black Engine) MTD-725-0976
...
17
WIRE HARNESS MTD-725-1007
...
18
Safety Switch (P.T.O.) MTD-725-0803B
...
19
Solenoid MTD-925-0771
...
20
WIRE-ELEC (Red Positive) MTD-725-0150

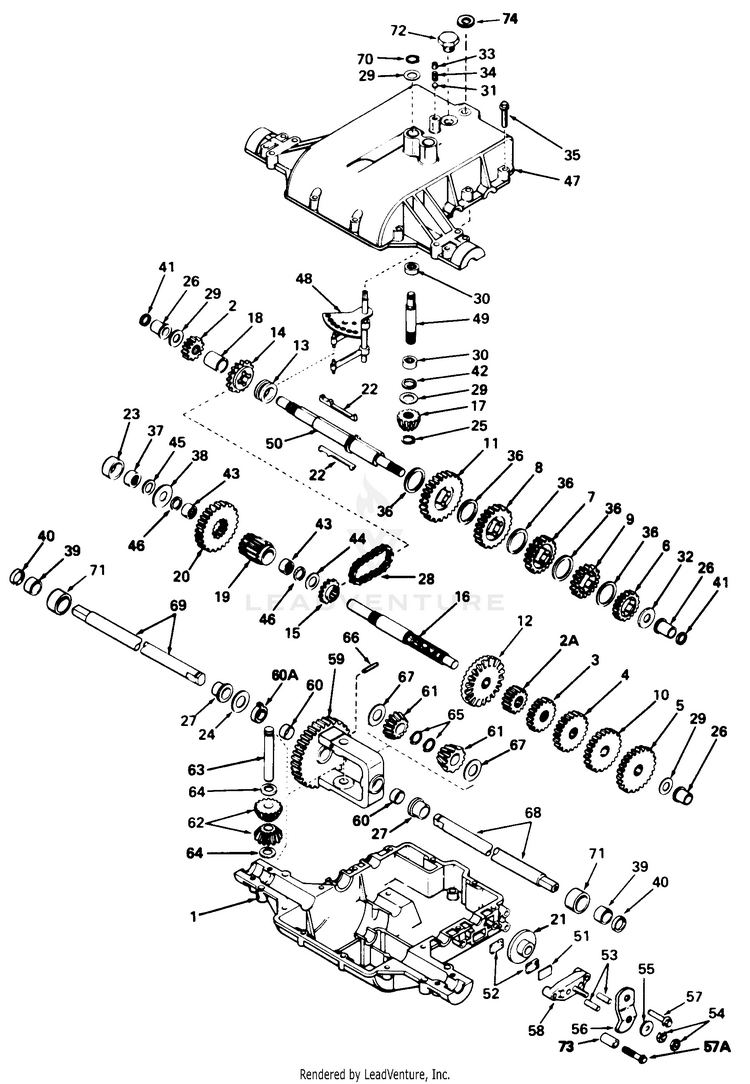

Five-Speed

...
...
1
Case, Transaxle MTD-PE-770071A
...
2
Gear, Spur (15 Teeth) MTD-PE-778136
...
2A
Gear, Spur (12 Teeth) MTD-PE-778145
...
3
Gear, Spur (15 Teeth) MTD-PE-778151
...
4
SPUR GEAR (20 TEET MTD-TC-778126A
...
5
GEAR, SPUR (30 TEETH) MTD-PE-778129A
...
6
SPUR GEAR-20T MTD-TC-778121A
...
7
SPUR GEAR (30 TEET MTD-TC-778124A
...
8
SPUR GEAR (35 TEET MTD-TC-778125
...
9
SPUR GEAR (25 TEET MTD-TC-778123A
...
10
SPUR GEAR (25 TEET MTD-TC-778127A
...
11
Gear, Spur (37 Teeth) MTD-PE-778146A
...
12
SPUR GEAR-42T MTD-TC-778137A
...
13
COLLAR-SHIFT MTD-TC-784266
...
14
SPROCKET (18 TEET MTD-TC-786083
...
15
Sprocket (9 Teeth) MTD-PE-786082
...
16
Shaft, Counter MTD-PE-776181
...
17
BEVEL GEAR-INPUT MTD-TC-778113A
...
18
Spacer MTD-PE-786074
...
19
Pinion, Output MTD-PE-778138
...
20
Gear, Output MTD-PE-778139
...
21
Disc, Brake MTD-PE-790003
...
22
KEY MTD-TC-792089B
...
23
Spacer MTD-PE-786075
...
24
WASHER MTD-PE-780001
...
25
E-RINGXT RET .521 MTD-TC-788040
...
26
FLANGED BUSHING MTD-TC-780105A
...
27
Bushing, Flanged MTD-PE-780118
...
28
CHAIN-ROLLER MTD-TC-786081
...
29
THRUST WASHER MTD-TC-780072
...
30
THRUST BEARING MTD-TC-780086
...
31
BALL-5/16 GRADE 20 MTD-TC-792077A
...
32
WASHER MTD-PE-780109
...
33
SCREW MTD-TC-792078
...
34
SPRING MTD-TC-792079
...
35
HEX SCREW HD TAP-1 MTD-TC-792073A
...
36
Shift Washer (Cupped) MTD-TC-780108
...
37
Bearing, Needle MTD-PE-780111
...
38
Washer, Flat MTD-PE-780113
...
39
Bearing, Needie MTD-PE-530105
...
40
Seal, Oil MTD-PE-788042
...
41
Ring, Square Cut MTD-PE-788051
...
42
Ring, Square Cut MTD-PE-792001
...
43
Bearing, Needle MTD-PE-780112
...
44
Washer, Flat MTD-PE-780114
...
45
Ring, Square Cut MTD-PE-788052
...
46
SEAL MTD-TC-788053
...
47
Cover, Transaxle MTD-PE-772077B
...
48
Rod and Fork Ass'y., Shift MTD-PE-784290
...
49
INPUT SHAFT MTD-TC-776140
...
50
Shaft, Brake MTD-PE-776184A
...
51
Plate, Brake Pad MTD-PE-790007
...
52
BRAKE PAD KIT (1 PKG = 2 PADS ) MTD-TC-799021
...
53
Pin, Dowel MTD-PE-786026
...
54
Lock Nut, 5/16-24 MTD-PE-792075
...
55
Washer, Flat MTD-PE-792076
...
56
Lever, Brake MTD-PE-790004
...
57
HEX SCREW HD TAP-1 MTD-TC-792073A
...
57A
Screw, Hex Hd. Thread Forming, 1/4-20 x 2-1/4 MTD-PE-792085
...
58
Holder, Brake Pad MTD-PE-790005
...
59
Gear Ass'y., Differential (Incl. 2 of No. 60) MTD-PE-778053A
...
60
Bushing MTD-PE-780064
...
60A
Bushing MTD-PE-780120
...
61
GEAR, BEVEL MTD-PE-778067
...
62
BEVEL GEAR MTD-PE-778068
...
63
Pin Drive MTD-PE-786034
...
64
Washer, Thrust MTD-PE-780065
...
65
Ring, Retaining MTD-PE-792018
...
66
Pin, Roll MTD-PE-792040
...
67
WASHER MTD-PE-780001
...
68
Axle (14-7/8" Long) MTD-PE-774420
...
69
Axle (13" Long) MTD-PE-774419
...
70
Retaining Ring MTD-TC-792035
...
71
Spacer MTD-PE-786084
...
72
PLUG MTD-PE-792074
...
73
Spacer MTD-PE-786066
...
74
Washer MTD-PE-792083

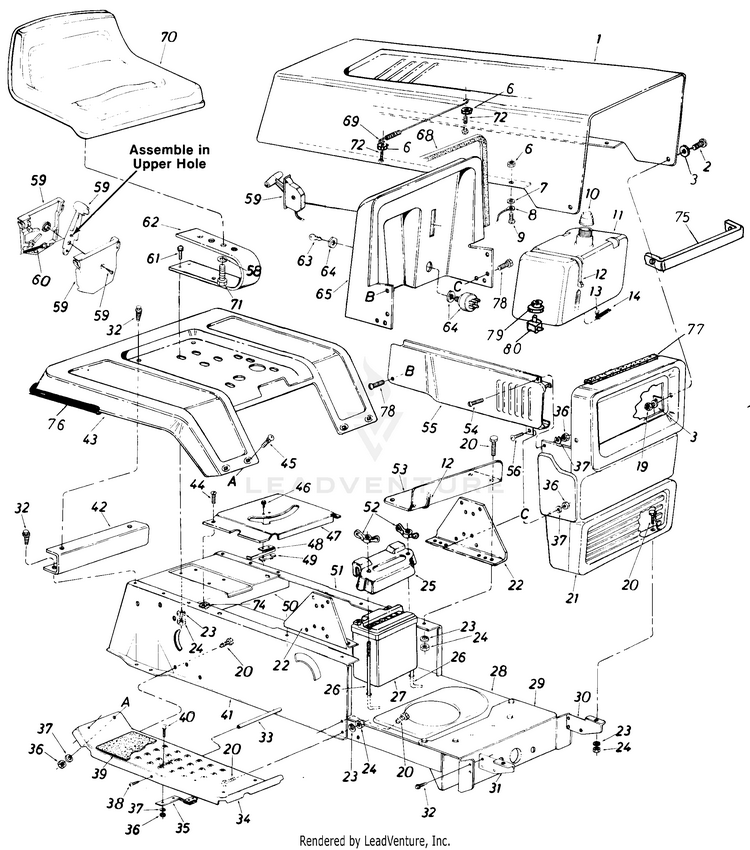

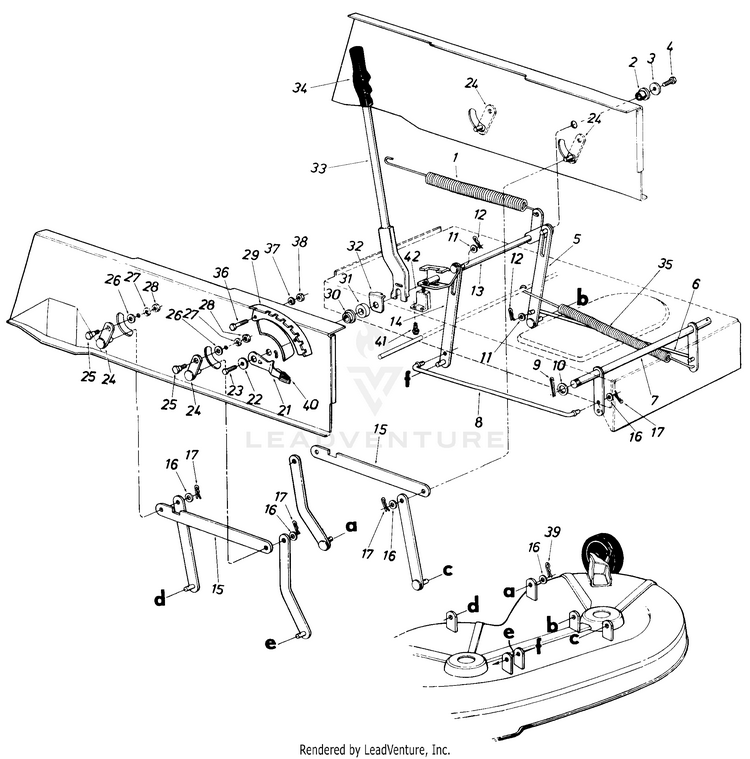

Lawn

...
...
1
EXTENSION SPRING MTD-932-0307A
...
2
Flange Bearing .632 ID MTD-741-0487C
...
3
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 MTD-736-0231
...
4
Screw, 5/16-18 x .625 MTD-710-0604A
...
5
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
6
ROD-STABILIZER MTD-711-0738
...
7
STABILIZER SHAF T ASS'Y. MTD-14647
...
8
ROD-STABILIZER MTD-711-0738
...
9
Cotter Pin 1/8" Dia. x 11/4" Lg. MTD-714-0470
...
10
Fl-Wash 635" I.D. x 1.12" O.D MTD-736-0156
...
11
Fl-Wash. .531" I.D. x .940" O.D. MTD-736-0192
...
12
Inter. Cotter Pin .50" Dia. MTD-714-0101
...
13
LIFT SHAFT ASS'Y. MTD-14641
...
14
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
15
CONNECTING ROD MTD-09735
...
16
Fl-Wash. .40" I.D. x .88" O.D. MTD-736-0300
...
17
Inter. Cotter Pin For 3/8 Rod MTD-714-0104
...
21
HEIGHT ADJUSTMENT LEVER MTD-732-0412
...
22
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 MTD-736-0231
...
23
Screw, 5/16-18 x .625 MTD-710-0604A
...
24
LINK ASSEMBLY- MTD-09721
...
25
Shld. Bolt .437" Dia. x .180" Lg. (5/16-18) MTD-738-0140
...
26
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Index Brk't. MTD-14633
...
30
FLANGE WASHER MTD-736-0341
...
31
RUBBER WASHER MTD-735-0216
...
32
Retainer Washer Lift Handle MTD-14654
...
33
Lift Handle Ass'y. MTD-14645
...
34
LIFT HANDLE GRIP (Lift Handle) MTD-720-0157
...
35
EXTENSION SPRING MTD-732-0440
...
36
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
37
Lock Wash. 5/16" I.D. MTD-936-0119
...
38
HEX NUT 5/16-18 MTD-712-3010
...
39
Inter. Cotter Pin MTD-714-0101
...
40
KNOB-HGT ADJ-BLACK MTD-08540
...
41
Hex AB-Tap Scr. #10 x .50" Lg. MTD-710-0351
...
42
Safety Switch MTD-725-0803B

Lawn

...
...
1
Hood MTD-15808
...
2
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
3
Fl-Wash 296" I.D. x .62" O.D. MTD-736-0463
...
6
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
7
Fl-Wash. .203" I.D. x .41" O.D. x .040 MTD-736-0931
...
8
Brake Cable 11.75" Lg. MTD-727-0290A
...
9
Truss Hd. Scr. #10-24 x 1/2" MTD-710-0473
...
10
GAUGE-GAS MTD-723-0333
...
11
KIT-FUEL TANK W/CA MTD-753-0503
...
12
Cable Tie MTD-726-0230
...
13
HOSE CLAMP MTD-726-0207
...
14
FUEL HOSE 1/4-24" MTD-751-22813-24
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
Grille MTD-15805
...
22
DASH SUPPORT BRACKET MTD-15818
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
BATTERY COVER MTD-731-0708
...
26
HOLD DOWN BATTERY ROD MTD-911-0222A
...
27
BATTERY MTD-753-0607
...
28
Lower Frame MTD-14606
...
29
Front Pivot Brk't. MTD-14619
...
30
BRACKET-GR MTD-15821
...
31
BRACKET-GRILLE (RH) MTD-15822
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
33
ROD-RUNNING BOARD MTD-738-0526
...
34
Running Board (R.H. & L.H.) MTD-14604
...
35
BLADE BRAKE ASSEMBLY MTD-961-0197
...
36
HEX NUT 1/4-20 MTD-912-0287
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
38
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
39
FOOT PAD MTD-723-0360
...
40
Carriage Bolt 1/4-20 x .62" Lg.* MTD-710-0134
...
41
FRAME-SIDE (RH) MTD-14602G-0637
...
42
Fender Mount Brace MTD-15848
...
43
Rear Fender MTD-15887
...
44
Truss Mach. Tap Screw #10 x .50" MTD-710-0351
...
45
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
46
Truss Hd. Scr. #10-24 x .50" Lg. MTD-710-0473
...
47
Transmission Panel MTD-15823
...
48
SAFETY SWITCH KIT MTD-725-0759
...
49
Insulatop Nut Plate MTD-926-0320
...
50
Hitch Plate MTD-14607
...
51
L.H. SIDE FRAME MTD-14603
...
52
Wing Nut 1/4-20 Thd. MTD-912-0113
...
53
SUPPORT-GA MTD-14605
...
54
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
55
SIDE COVER R.H. MTD-15814
...
xx
SIDE COVER L.H. (Not Shown) MTD-15815
...
56
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
58
L-Wash. 1/2" I.D. MTD-736-0921
...
59
Throttle Control Box Ass'y. MTD-831-0796A
...
60
Throttle Control Wire MTD-946-0500
...
61
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
62
SEAT SPRING MTD-732-0458
...
63
Key MTD-925-0201
...
64
Ignition Switch MTD-925-0267B
...
65
DASH PANEL MTD-15809
...
68
Trim Strip 27" Lg. MTD-731-0511
...
69
EXTENSION SPRING MTD-732-0462
...
70
Seat Ass'y. MTD-757-0299
...
71
Hex Bolt 1/2-13 x 1.00" Lg. MTD-710-3131
...
72
CHAIN ADJUSTMENT BOLT MTD-910-0749
...
xx
Nut, Hex Lock, #10-24 MTD-712-0102A
...
74
Speed Nut #10Z MTD-726-0139
...
75
TIE-STRAP MTD-15931
...
76
Trim Strip 81" Lg. MTD-731-0511
...
77
STRIP-FOAM-3/8X3/4X14 MTD-722-0155
...
78
Hex Wash. Hd. Tap Scr. x .75" Lg. MTD-710-0642
...
79
BUSHING MTD-935-0149
...
80
90 Elbow MTD-751-3054

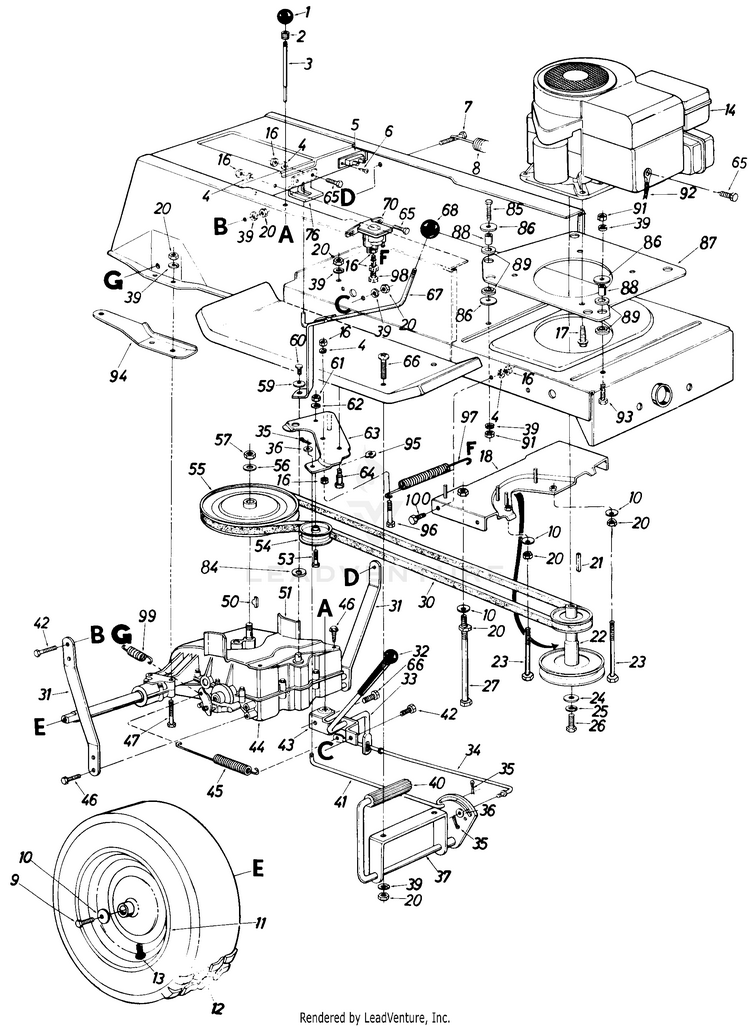

Lawn

...
...
1
Ball Knob 1.25" O.D. x 1/4-20 Thd. MTD-720-0187
...
2
Compression Spring .30" O.D. x 1.00" Lg. MTD-732-0145
...
3
LOCKOUT ROD MTD-711-0742
...
4
L-Wash. 1/4" I.D. MTD-936-0329
...
5
CIRCUIT BREAKER MTD-753-0685
...
6
Truss Hd. Phil. Scr. #10 x 1/2" Lg. MTD-710-0351
...
7
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0528
...
8
EXTENSION SPRING MTD-932-0307A
...
9
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
10
Bell-Wash. 5/16" I.D. MTD-736-0242
...
11
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
12
WHEEL ASSEMBLY W/TIRE 18 x 9.5 x COLOR MTD-734-0817
...
xx
TIRE-18.0X9.50-8-DOGBONE TRD MTD-734-0448
...
13
TUBELESS VALVE (Service Only) MTD-934-0255
...
14
Engine B&S 252707-0645-0 MTD-NA
...
16
HEX NUT 1/4-20 MTD-912-0287
...
17
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
18
Belt Guard Brk't. Ass'y. MTD-14643
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
22
PULLEY MTD-756-0373
...
23
Hex Bolt 5/16-18 x 5.25" Lg. MTD-710-0833
...
24
Fl-Wash. 7/16" I.D. x 1.25" O.D. x .180 MTD-736-0322
...
25
L-Wash. 7/16" I.D. MTD-736-0171
...
26
Hex Bolt 7/16-20 x 1.50" Lg. MTD-710-0757
...
27
Hex Bolt 5/16-18 x 5.25" Lg.* MTD-710-0833
...
30
Drive Belt (PTO) MTD-954-0266A
...
31
BRACE-TRAN MTD-14653
...
32
GRIP (Hand Brake) MTD-720-0143
...
33
Hill Holder Brake Handle MTD-747-0386
...
34
BRAKE ROD MTD-747-0385
...
35
Cotter Pin 3132" Dia. x 1 .00" MTD-714-0111
...
36
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0204
...
37
Brake and Clutch Pedal Ass'y. MTD-14623
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
FOOT PAD MTD-735-0239A
...
41
CLUTCH ROD MTD-747-0390
...
42
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
43
Brake Lock and Handle Support Brk't. MTD-14634
...
44
Transaxle Complete MTD-NA
...
45
Ext. Spring .59n O.D. x 7 08" MTD-932-0413
...
46
Screw, 5/16-18 x .625 MTD-710-0604A
...
47
Hex Bolt 5/16-18 x 2.50" Lg. MTD-710-0378
...
50
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
51
Transaxle Belt Keeper MTD-14631
...
53
Hex Bolt 3/8-16 x 1.50" Lg.* MTD-710-0344
...
54
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
55
PULLEY MTD-756-0374
...
56
L-Wash. 1/2" I.D. MTD-736-0921
...
57
NUT MTD-712-3029
...
59
SPRING WASHER BELL MTD-736-0270
...
60
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
61
Hex Nut 3/8-16 Thd. MTD-712-0798
...
62
L-Wash. 3/8" I.D. MTD-736-0169
...
63
BRACKET-ID MTD-14656
...
64
Shld. Scr. .437" Dia. x 1.80" Lg. (5/16-18) MTD-738-0140
...
65
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
66
Truss Hd. Mach. 5/16-18 x .75" Lg. MTD-710-0323
...
67
Shift Lever Ass'y MTD-14627
...
68
Knob MTD-920-0232
...
70
Solenoid MTD-925-0771
...
76
Shift Lever Pivot Brk't. MTD-14630
...
84
WASHER-HDN MTD-717-0234
...
85
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
86
Fl-Wash. 1.25" O.D. x .320" I.D. MTD-736-0343
...
87
ENGINE MOUNTING PLATE MTD-14791
...
88
SPACER MTD-950-0539
...
89
Engine Mounting Grommet MTD-722-0153
...
91
Hex Nut 5/16-24 Thd. MTD-912-3057
...
92
WIRE-ELEC- 7.25IN MTD-725-0122
...
93
Hex Bolt 5/16-24 x 1.50" Lg.* MTD-710-0624
...
94
BRACKET-AXLE SUP-R MTD-14770
...
xx
BRACKET-AXLE SUP-L (Not Shown) MTD-14769A
...
95
Spr. Wash. 7/16" I.D. MTD-936-0141
...
96
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
97
EXTENSION SPRING MTD-932-0384
...
98
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
99
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
100
Hex Bolt 1/4-28 x .75" Lg. Grade 5 MTD-710-0412

Lawn

...
...
1
Steering Wheel Cap MTD-931-0220
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Belleville Wash. .345" I.D. MTD-736-0242
...
4
STEERING WHEEL MTD-731-0356
...
5
STEERING BELLOW MTD-731-0559B
...
6
STEERING C MTD-14775
...
7
FLANGE BEARING MTD-741-0356A
...
8
Internal Cotter Pin 1/4" Dia. MTD-714-0147
...
9
Fl-Wash. .438" I.D. x 1.37" O.D. MTD-936-0319
...
10
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
11
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
12
Fl-Wash. .38" I.D. x 1.0" O.D. MTD-936-0206
...
13
Spacer.380" I.D. x .625" O.D. x .227 MTD-950-0535
...
14
BUSHING .380 ID MTD-941-0475
...
15
Hex Wash. Hd. Self-Tap Scr. MTD-710-0726
...
16
DRAG LINK ASSEMBLY KIT MTD-753-0339
...
17
Front Pivot Brk't. MTD-14619
...
18
Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd. MTD-738-0527
...
19
Hex Nut 3/8-16 Thd. MTD-712-0798
...
20
L-Wash. 3/8" I.D. MTD-736-0169
...
21
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
22
STEERING ARM F RONT AXLE MTD-14611
...
23
Hex Bolt 5/16-24 x 2.00" Lg. Grade 5 MTD-710-0772
...
24
FLANGE BEARING MTD-941-0225
...
25
Pivot Bar Ass'y. MTD-753-0642-0637
...
26
AXLE-FR (LH) MTD-94649
...
27
Hex Nut 3/8-24 Thd. MTD-712-0241
...
28
L-Wash. 3/8" I.D. MTD-736-0169
...
29
Ball Joint MTD-923-0156
...
30
TIE ROD MTD-711-0613
...
31
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
32
Front Axle Ass'y.-R.H. MTD-14650A
...
33
Wheel Ass'y. Comp. MTD-634-0056B-0911
...
xx
Tire Only MTD-734-0498
...
34
WHEEL RIM GREY MTD-753-0838-0662
...
xx
Flange Bearing .632 ID MTD-741-0487C
...
xx
TUBELESS VALVE MTD-934-0255
...
xx
Grease Fitting MTD-737-0146
...
35
Flange Bearing .632 ID MTD-741-0487C
...
36
Fl-Wash. .635 I.D. x 1.591' O.D. MTD-736-0285
...
37
Hub Cap MTD-931-0484A
...
38
Cotter Pin 118" Dia. x 1.25" Lg.* MTD-714-0470
...
39
Fl-Wash. .635" I.D. x 1.20" O.D. MTD-736-0156
...
40
Push Cap 5/8" Dia. Rod MTD-726-0214
...
42
Cotter Pin 118" Dia. x 1.0" Lg. MTD-714-0115
...
43
Hex L-Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
Fl-Wash. .344" I.D. x 1.25" O.D. MTD-736-0231
...
46
SPACER MTD-950-0532
...
47
Hex Nut 3/8-24 Thd. MTD-712-0241
...
48
L-Wash. 3/8n l.D.* MTD-736-0169
...
49
HEX NUT 5/16-18 MTD-712-3010
...
50
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
GEAR-SEGMENT MTD-917-0468
...
52
FLANGE BEARING MTD-941-0225
...
53
Fl-Wash. (Hardened) MTD-736-0187
...
54
STEERING SHAFT-LOWER MTD-738-0522A
...
55
CLEVIS PIN .25 x 1.00 MTD-711-0684
...
57
Oval Hd. Cr. Sunk Scr. #10 x 5/8" Lg. MTD-710-0837
...
58
Bell-Wash. MTD-736-0242
...
59
Fl-Wash. (Hardened) MTD-736-0187

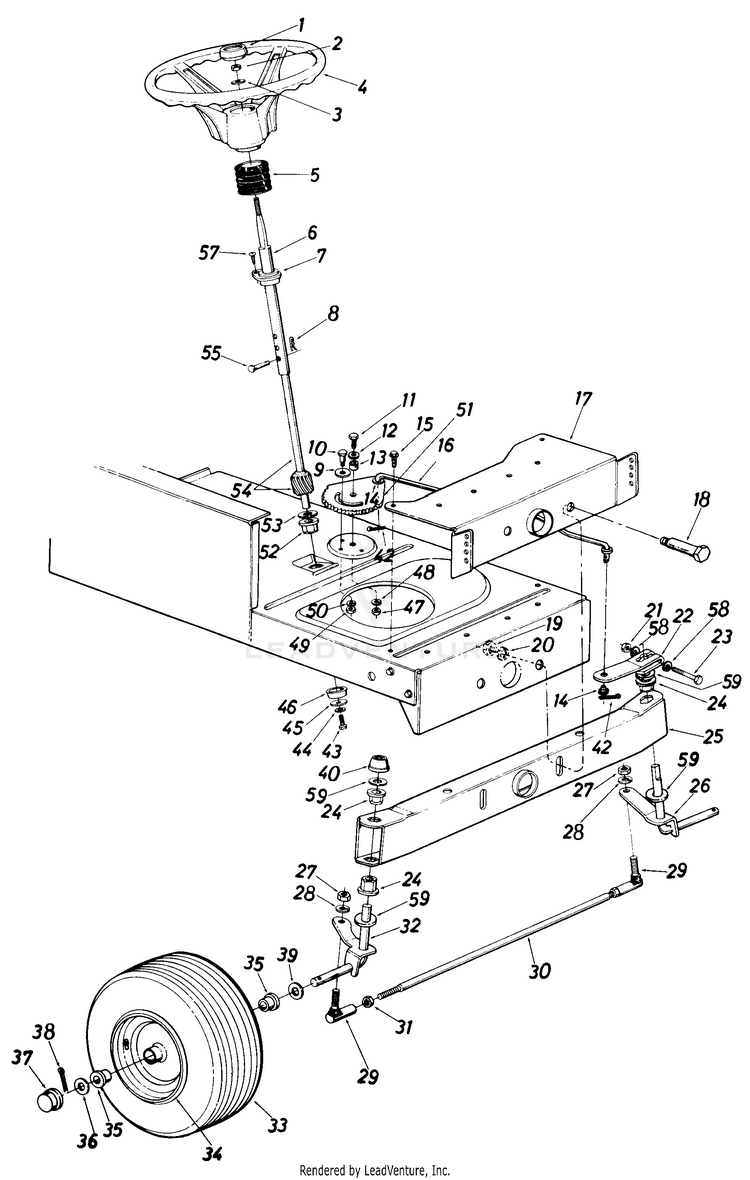

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
