MTD 13607-7 (1987) Lawn Tractor

Model: 13607-7 (1987)

Back To Assemblies

Save Part Not Listed?

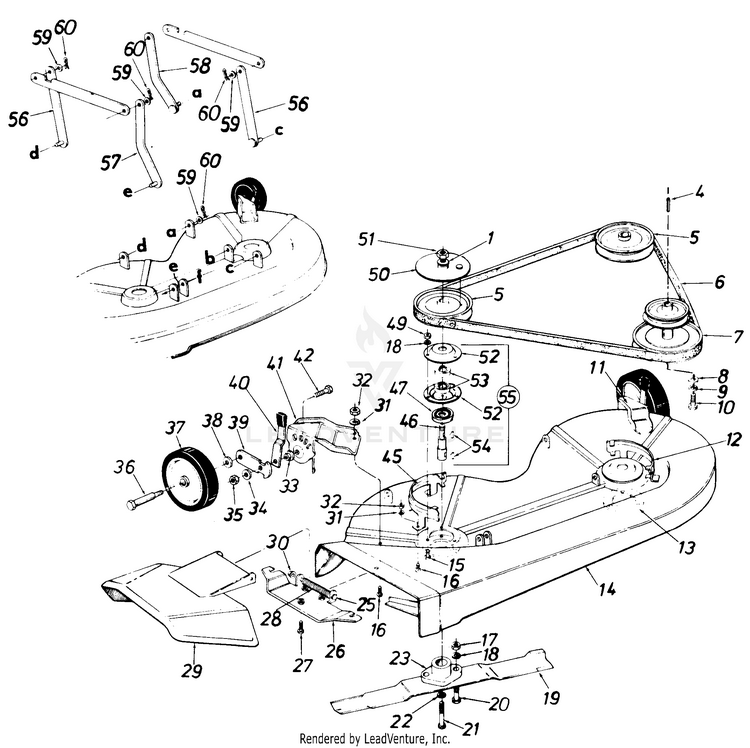

product name

38"

...
...
1
L-Wash. 5/8" I.D. MTD-736-0158
...
4
Sq. Key 1/4" x 1/4" x 2.00" Not part of deck assembly complete MTD-914-0114
...
5
Pulley 4.75" O.D. MTD-756-0251
...
6
V-Belt 21/32 x 69" Lg. MTD-954-0145A
...
7
See Lawn Tractor Manual Not part of deck assembly complete MTD-NA
...
8
Fl-Wash. 7/16" I.D. x 1.25 O.D. x .180 Not part of deck assembly complete MTD-736-0322
...
9
L-Wash. 7/16" I.D. Not part of deck assembly complete MTD-736-0171
...
10
Hex Bolt 7/16-20 x 1.50' Lg. Not part of deck assembly complete MTD-710-0757
...
11
BRACKET-WH MTD-09082
...
12
BELT GUARD MTD-16607
...
13
Plate Deck Reinforcement MTD-09164A-0637
...
14
38" Deck Ass'y. MTD-14662
...
xx
38" Deck Ass'y. Comp. (Service Only) MTD-14777
...
15
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
16
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
17
Hex Nut 5/16-24 Thd. MTD-912-3057
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
BLADE 19" MTD-742-0122
...
20
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
21
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
22
L-Wash. 3/8" I.D. (Heavy Duty) MTD-736-0217
...
23
BLADE ADAP MTD-10769
...
25
HINGE PIN MTD-711-0571
...
26
ADAPTER MTD-11396
...
27
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
28
TORSION SPRING MTD-732-0261
...
29
Chute Cover Ass'y. Comp. MTD-11633
...
30
PUSH NUT MTD-726-0106
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
32
Hex Nut 1/4-28 Thd. MTD-712-0138
...
33
SHOULDER SPACER MTD-748-0279
...
34
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
35
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
36
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
37
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
38
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
39
BAR-WHEEL PIVOT MTD-10937
...
40
LEVER ASSEMBLY-SPRING MTD-14082
...
41
BRACKET-WH MTD-09080
...
42
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
45
BELT GUARD DECK R.H. MTD-16608
...
46
BLADE SPINDLE MTD-911-0255
...
47
SHIELD-BRG MTD-13703
...
49
HEX NUT 5/16-18 MTD-712-3010
...
50
BRAKE DISC MTD-09322
...
51
HEX NUT MTD-912-0261
...
52
Bearing Housing MTD-08253B
...
53
BALL BEARING MTD-741P0919B
...
54
#6 Hi-Pro Key 5/32" x 5/8" Dia. MTD-714-0365
...
55
BLADE SPINDLE ASSEMBLY MTD-09321
...
56
DECK HANGER LINK ASS'Y. Not part of deck assembly complete MTD-14804
...
57
HANGER-DECK L (Dog Leg) Not part of deck assembly complete MTD-14800
...
58
DECK HANGER LINK ASS'Y. Not part of deck assembly complete MTD-15925
...
59
Fl-Wash. .53" I.D. x .93" O.D. Not part of deck assembly complete MTD-736-0160
...
60
Inter. Cotter Pin .50" Dia. Not part of deck assembly complete MTD-714-0101
...
xx
BLADE BRAKE ASSEMBLY (38" Deck) Not part of deck assembly complete MTD-961-0197
