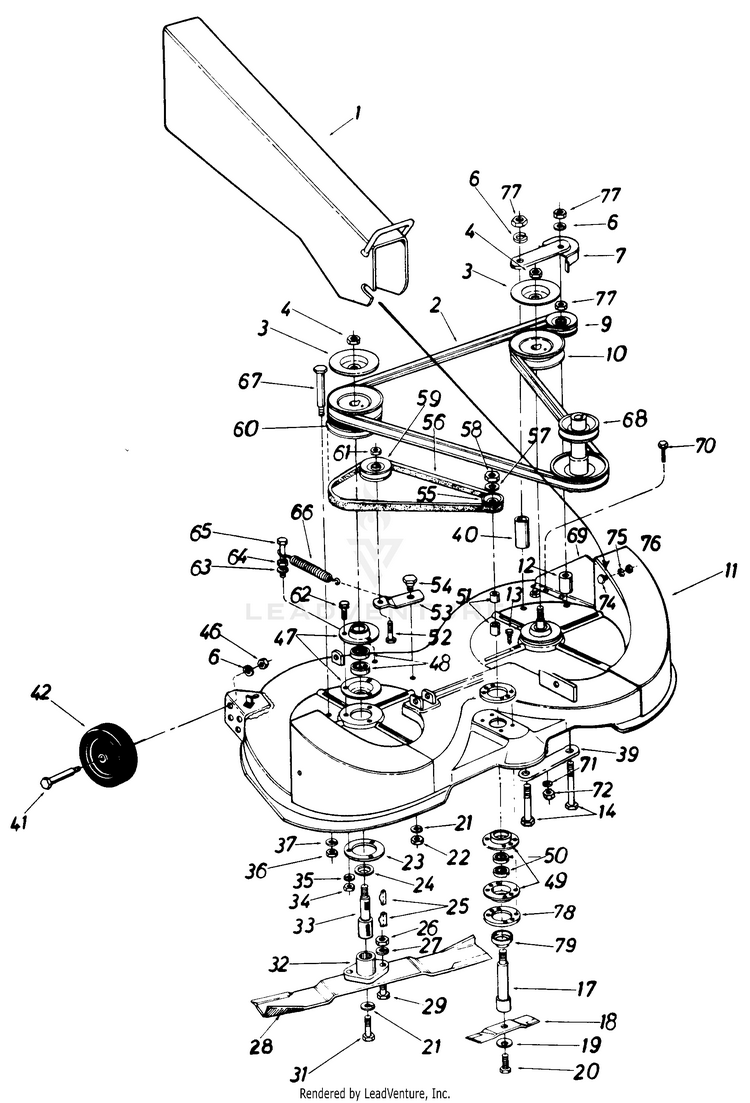

MTD 13565-7 (1987) Lawn Tractor

Model: 13565-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

40"

...
...
1
Chute Extension Ass'y. Not part of deck assembly complete MTD-16083
...
xx
Chute Extension Ass'y. R.H. (Not Shown) Not part of deck assembly complete MTD-16084
...
2
HEX BELT 1/2X84 MTD-954-0270
...
3
BRAKE DISC MTD-09322
...
4
HEX NUT MTD-912-0261
...
xx
Jam Nut, 3/8-16 MTD-912-3008
...
6
L-Wash. 3/8" I.D. MTD-736-0169
...
7
Idler Pulley Belt Guard Ass'y. MTD-15877
...
xx
Jam Nut, 3/8-16 MTD-912-3008
...
9
Idler Pulley MTD-956-0399
...
10
PULLEY MTD-756-0397
...
11
40" Rear Discharge Deck MTD-16075
...
12
Spacer .40" I.D. x 1.25" O.D. x 1.59" Lg. MTD-750-0586
...
13
Screw, Hex MTD-710-0788
...
14
Hex Bolt 3/8-24 x 3.75" Lg. MTD-710-0902
...
xx
L-Wash. 1/4" I.D. MTD-936-0329
...
xx
Hex Nut 1/4-28 Thd. MTD-712-0138
...
17
BLADE SPINDLE MTD-738-0557
...
18
6.5" BLADE MTD-742-0252
...
19
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
20
HHCS:3/8-24:.875:GR8:STD MTD-710-0696
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Jam Nut, 3/8-16 MTD-912-3008
...
23
Plate Deck Reinforcement MTD-09164A-0637
...
24
SHIELD-BRG MTD-13703
...
25
#6 Hi-Pro Key 5/32 x 5/8" Dia. MTD-714-0365
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
20" HIGH LIFT BLADE R.H. MTD-742-0254
...
xx
BLADE-20IN (Not Shown) MTD-742-0253
...
29
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
31
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
32
BLADE ADAP MTD-10769
...
33
SPINDLE MTD-738-0396
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
Lock Wash. 5/16" I.D. MTD-936-0119
...
36
Jam Nut, 3/8-16 MTD-912-3008
...
37
L-Wash. 3/8" I.D. MTD-736-0169
...
39
PLATE-REIN MTD-15878
...
40
SPACER MTD-750-0593
...
41
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
42
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
46
Jam Nut, 3/8-16 MTD-912-3008
...
47
Bearing Housing MTD-08253B
...
48
BALL BEARING MTD-741P0919B
...
49
BEARING HOUSING MTD-15319B
...
50
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
51
SPACER MTD-948-0201
...
52
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
53
Idler Bracket MTD-15358
...
54
Shld. Bolt .625" Dia. x .170"Lg. MTD-738-0281
...
55
PULLEY MTD-756-0406
...
56
V-BELT 3/8 x 39 MTD-954-0271
...
57
Bell-Wash. .63" I.D. x 1.05" O.D. MTD-736-0317
...
58
HEX NUT MTD-712-3015
...
59
Idler Pulley MTD-756-1035A
...
60
Double Pulley MTD-756-0398
...
61
Hex Top L-Jam Nut 3/8-16 Thd. MTD-712-0181
...
62
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
63
L-Wash. 1/4" I.D. MTD-936-0329
...
64
HEX NUT 1/4-20 MTD-912-0287
...
65
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
66
Extension Spring 3.97" Lg. MTD-932-0429A
...
67
Shoulder Screw MTD-938-0481A
...
68
PULLEY Not part of deck assembly complete MTD-756-0428
...
69
Inner Chute Extension L.H. MTD-16081
...
xx
Inner Chute Extension R.H. (Not Shown) MTD-16082
...
70
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
71
L-Wash. 1/4" I.D. MTD-936-0329
...
72
Hex Nut 1/4-28 Thd. MTD-712-0138
...
74
SHOULDER SCREW MTD-738-0183
...
75
L-Wash. 3/8" I.D. MTD-736-0169
...
76
Jam Nut, 3/8-16 MTD-912-3008
...
77
Hex Nut 3/8-24 Thd. MTD-712-0241
...
78
Reinforcement Plate MTD-16348B
...
79
SHIELD-BEA MTD-16400
