product name

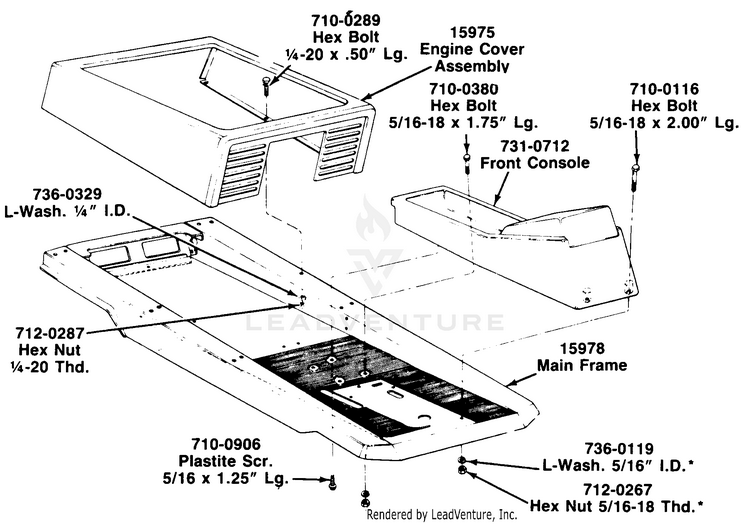

MTD 13518-8 (1988) Lawn Tractor

Model: 13518-8 (1988)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
712-0287
HEX NUT 1/4-20 MTD-912-0287
...
736-0329
L-Wash. 1/4" I.D. MTD-936-0329
...
710-0289
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
15975
COVER ASSEMBLY MTD-15975
...
710-0380
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
731-0712
CONSOLE-FR MTD-731-0712
...
710-0116
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
15978
FRAME MTD-15978
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
710-0906
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
