MTD 13518-7 (1987) Lawn Tractor

Model: 13518-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

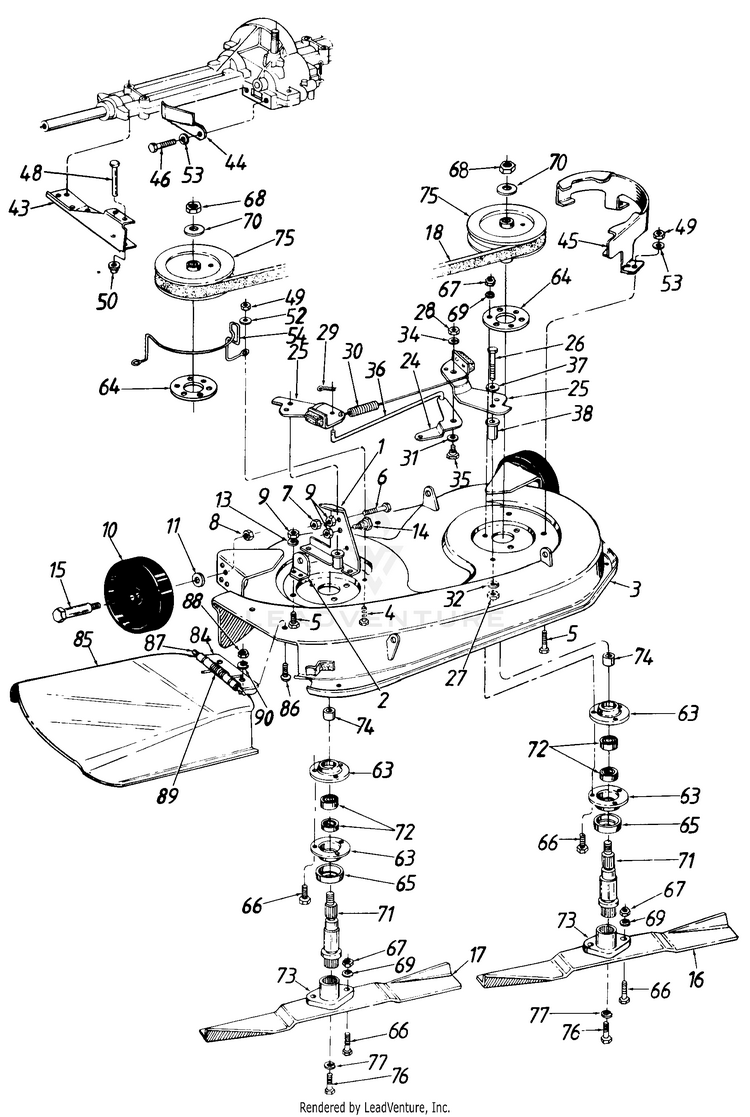

32"

...
...
1
BRACKET-DECK MTD-17094
...
2
Rear Deck Brkt. R.H. MTD-17096
...
3
DECK ASSEMBLY MTD-17102
...
xx
32" Deck Ass'y. Comp. (Service Only) MTD-17242
...
4
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
5
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0285
...
6
Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg. MTD-710-0778
...
7
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
8
Hex L-Nut 3/8-16 Thd. MTD-712-0181
...
9
HEX NUT 1/4-20 MTD-912-0287
...
10
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
11
Bell-Wash. .380" I.D. x .88 MTD-736-0105
...
13
L-Wash. 1/4" I.D. MTD-936-0329
...
14
SHOULDER SCREW MTD-738-0183
...
15
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
16
L.H HIGH-LIFT BLADE MTD-742-0477
...
17
R.H. HIGH-LIFT BLADE MTD-742-0480
...
18
V-BELT-1/2 x 47.0 MTD-954-0290
...
xx
V-BELT 1/2 x 63 MTD-954-0347
...
xx
EXTENSION SPRING MTD-732-0575
...
xx
BRACKET AS MTD-17241
...
xx
Spacer 5/16" I.D. x 1/2" O.D. x 31/32" MTD-750-0470
...
xx
Spacer 3/4" I.D. x 1-1/4" O.D. X 1/2" MTD-711-0469
...
24
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160
...
25
Deck Brake Brkt. Ass'y. MTD-97116
...
26
Hex Bolt 5/16-18 x 3.25" Lg. MTD-710-3056
...
27
Hex Nut 5/16-24 Thd. MTD-912-3057
...
28
HEX NUT MTD-712-0117
...
29
Hex Nut 1/4-28 Thd. MTD-712-0138
...
30
Spring, extension, .50 Od x 4.35 MTD-732-0428B
...
31
SPACER .255" 1 .D. MTD-750-0583
...
32
UNKNOWN MTD-NA
...
xx
Shld. Spacer .625" I.D. MTD-938-0347
...
34
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
35
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
36
Wave Washer .53" I.D. MTD-736-0232
...
37
Shld. Spacer .27" Lg. MTD-748-0234
...
38
SPACER MTD-750-0702
...
xx
Flat Wash. 1/4" MTD-736-0176
...
xx
L-Wash. 3/8" I.D. MTD-736-0169
...
xx
HEX NUT 3/8-16 GR5 MTD-712-3017
...
xx
Hex L-Nut 3/8-24 Thd. MTD-712-0241
...
43
GUARD-BELT-LOWER MTD-15625
...
44
Lower Inside Belt Guard MTD-17117
...
45
BELT GUARD MTD-17164
...
46
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
48
WELD PIN .25 x 2.5 MTD-710-0586
...
49
HEX NUT 1/4-20 MTD-912-0287
...
50
PUSH NUT MTD-726-0106
...
xx
IDLER PULLEY MTD-756-0515
...
52
PULLEY MTD-756-0517
...
53
L-Wash. 1/4" I.D. MTD-936-0329
...
54
Bell-Wash. 5/16" I.D. MTD-736-0242
...
xx
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
63
Bearing Housing MTD-08253B
...
64
Plate Deck Reinforcement MTD-09164A-0637
...
65
SHIELD-BRG MTD-13703
...
66
Hex Bolt 5/16-24 x 1.0" Lg. (Special) MTD-710-0888
...
67
Hex Nut 5/16-24 Thd. MTD-912-3057
...
68
HEX JAM NUT 5/8-18 MTD-712-0318
...
69
Lock Wash. 5/16" I.D. MTD-936-0119
...
70
Bell-Wash. 5/8" I.D. MTD-736-0317
...
71
SHAFT SPINDLE MTD-938-0707A
...
72
BALL BEARING MTD-741P0919B
...
73
Blade Adapter MTD-748-0300
...
74
Spacer MTD-750-0456
...
75
PULLEY MTD-756-0516
...
76
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
77
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
84
BRACKET-CH MTD-16521
...
85
CHUTE DEFLECTOR MTD-753-0567
...
86
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
87
Hinge Pin MTD-911-0792
...
88
HEX NUT 1/4-20 MTD-912-0287
...
89
TORSION SPRING MTD-732-0542
...
90
UNKNOWN MTD-NA
