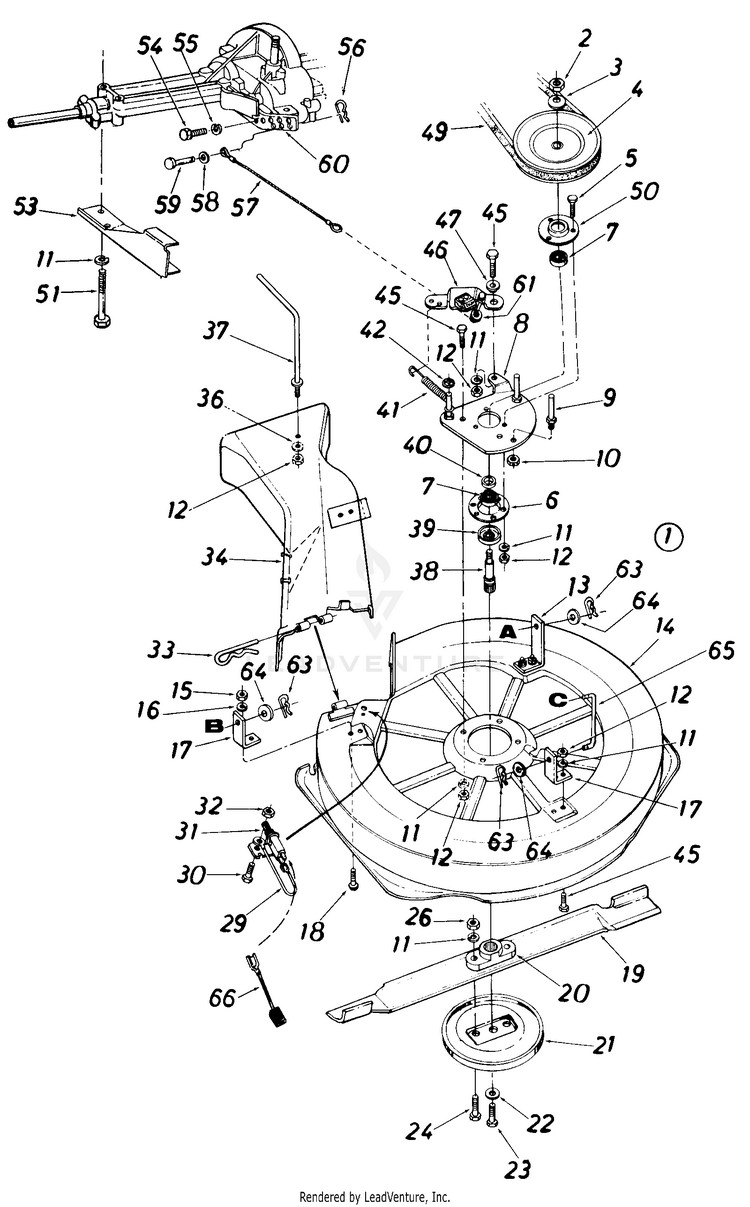

MTD 13514-7 (1987) Lawn Tractor

Model: 13514-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

30"

...
...
1
30" R.D. DECK ASS'Y. COMP. (Service Only) MTD-15900
...
2
HEX JAM NUT 5/8-18 MTD-712-0318
...
3
Bell-Wash. .630" I.D. x 1.25" MTD-736-0317
...
4
5/8 V-Pulley .75" I.D. x .7" MTD-756-0430
...
5
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
6
Bearing Housing MTD-08253B
...
7
BALL BEARING MTD-741P0919B
...
8
Spindle Mtg. Plate MTD-15919
...
9
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
10
Jam Nut, 3/8-16 MTD-912-3008
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
13
Hanger Brkt. 2.92" MTD-15916
...
14
DECK ASSEMBLY-30IN RD MTD-15906
...
15
UNKNOWN MTD-NA
...
16
UNKNOWN MTD-NA
...
17
BRACKET-HA MTD-15915
...
18
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
19
30 HIGH LIFT BLADE MTD-742-0280
...
20
Blade Adapter MTD-748-0300
...
21
PLATE-ANTI SCALP (Optional) MTD-07919
...
22
L-Wash. 3/8" I.D. MTD-736-0169
...
23
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
24
Hex Bolt 5/16-24 x 1.0" Lg. MTD-710-0888
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
WIRE-REV LOCKOUT MTD-725-0765
...
30
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
31
SAFETY SWITCH (RED) MTD-725-0269
...
32
HEX NUT 1/4-20 MTD-912-0287
...
33
COTTER PIN MTD-714-0174
...
34
CHUTE DEFLECTOR MTD-96094A
...
36
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
37
ROD MTD-747-0474
...
38
BLADE SPINDLE MTD-738-0577
...
39
SHIELD-BRG MTD-13703
...
40
Spacer MTD-750-0456
...
41
Extension Spring MTD-732-0157
...
42
Push Speed Nut MTD-726-0201
...
45
Hex Bolt 5/16-18 x .75 MTD-710-0118
...
46
BRACKET AS MTD-16053
...
47
Shoulder Spacer .500" Dia. MTD-748-0234
...
49
V-Belt 1/2 " x 52" Lg. MTD-954-0264
...
50
Open Brg. Housing 1.85 I.D. MTD-15296A
...
51
Hex Bolt 5/16-18 x 2.75" MTD-710-0176
...
53
GUARD-BELT-LOWER MTD-15625
...
54
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
55
L-Wash. 1/4" I.D. MTD-936-0329
...
56
Int. Cot. Pin 5/16" Dia. MTD-714-0104
...
57
Brake Cable 11.75" Lg. MTD-727-0290A
...
58
Fl-Wash. .281" I.D. x 50 MTD-736-0142
...
59
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
60
BELT GUARD-LOWER MTD-15626B-0637
...
61
PUSH NUT MTD-726-0106
...
63
Int. Cotter Pin 1/2" Dia. MTD-714-0145
...
64
Fl-Wash. 531" I.D. x 930" MTD-736-0160
...
65
Deck Link 3.9" Lg. MTD-747-0428
...
66
WIRE MTD-725-1037
