MTD 13511S (1985) Lawn Tractor

Model: 13511S (1985)

Save Part Not Listed?
product name

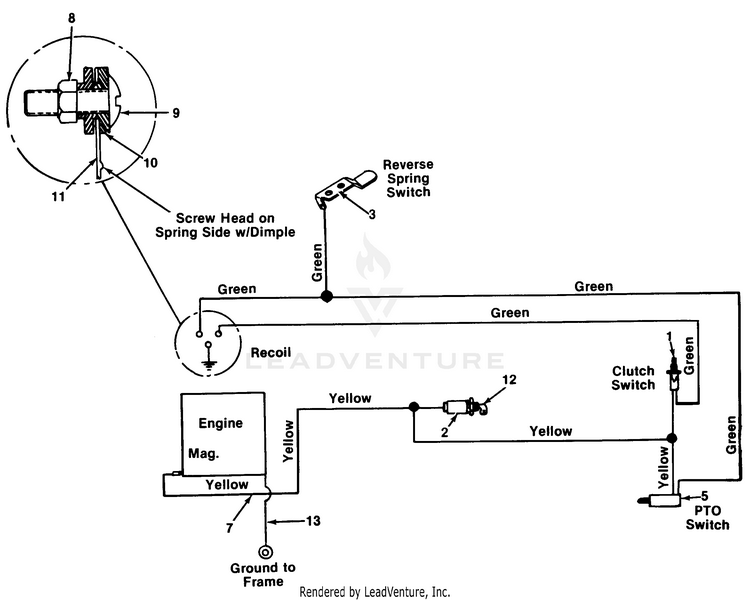

Electrical

...
...
1
SAFETY SWITCH (RED) MTD-725-0269
...
2
Ignition Switch MTD-925-1425
...
3
SWITCH SPRING MTD-732-0420
...
xx
Wire Harness MTD-725-0859
...
5
SAFETY SWITCH MTD-925-0819A
...
7
Convoluted Conduit 24" Lg. MTD-731-0652
...
8
Hex Nut #10-24 MTD-712-0121
...
9
Truss Mach. Scr. #10-24 x .62 MTD-710-0425
...
10
FIBER WASHER MTD-736-0338
...
11
SPRING SWITCH MTD-732-0257
...
12
Key MTD-925-0201
...
13
WIRE MTD-725-0882

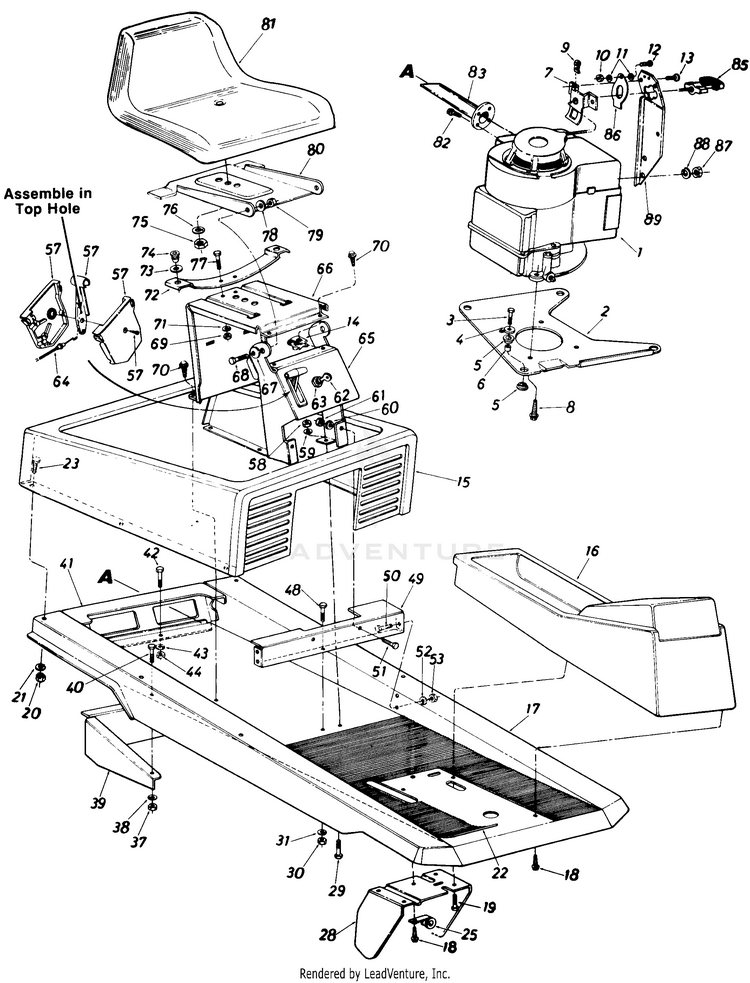

Riding (Part 1)

...
...
1
Engine MTD-NA
...
2
ENGINE PLATE MTG MTD-15572A-0637
...
3
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
4
Fl-Wash. .330" I.D. x 1.125" O.D. MTD-736-0231
...
5
Engine Mounting Grommet MTD-722-0153
...
6
SPACER MTD-950-0539
...
7
Switch Brk't. Ass'y. MTD-11053
...
8
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
9
Speed Nut #10-24 U-Type MTD-712-0147
...
10
Hex Nut #10-24 Thd. MTD-712-0121
...
11
FIBER WASHER MTD-736-0338
...
12
Truss Mach. Scr. #10-24 x .62" Lg. MTD-710-0425
...
13
Truss Mach. Scr. #10 x .50" Lg. MTD-710-0351
...
14
Palnut Lug 5/16-18 Thd. MTD-726-0211
...
15
COVER ASSEMBLY MTD-15975
...
16
Front Console MTD-731-0717
...
17
FRAME MTD-15978
...
18
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
19
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
20
HEX NUT 1/4-20 MTD-912-0287
...
21
L-Wash. 1/4" I.D. MTD-936-0329
...
22
FLOOR MAT MTD-735-0220
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
25
CLAMP MTD-726-0175
...
28
CLUTCH-BRAKE PEDAL ASS'Y. MTD-15562
...
29
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
HEX NUT 5/16-18 MTD-712-3010
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
SUPPORT ASSY-TRANS MTD-15552
...
40
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
41
PANEL-FRAM MTD-15571
...
42
SCREW 5/16-18 x .50 GR5 MTD-710-3039
...
43
Lock Wash. 5/16" I.D. MTD-936-0119
...
44
HEX NUT 5/16-18 MTD-712-3010
...
48
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
49
BRACKET-SE MTD-15604
...
50
SCREW 5/16-18 x .50 GR5 MTD-710-3039
...
51
SCREW 5/16-18 x .50 GR5 MTD-710-3039
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
HEX NUT 5/16-18 MTD-712-3010
...
xx
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
57
Throttle Control Box Ass'y. MTD-831-0796A
...
58
HEX NUT 5/16-18 MTD-712-3010
...
59
Lock Wash. 5/16" I.D. MTD-936-0119
...
60
Lock Wash. 5/16" I.D. MTD-936-0119
...
61
HEX NUT 5/16-18 MTD-712-3010
...
62
Key MTD-925-0201
...
63
Ignition Switch MTD-925-1425
...
64
35" THROTTLE CABLE MTD-946-0503
...
65
Front Seat Bracket MTD-15897
...
66
KIT-SEAT BRKT ASSY MTD-15606
...
67
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
68
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
71
FLAT WASHER .38X.88 MTD-736-0267
...
72
Seat Spring MTD-732-0431
...
73
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
74
GROMMET MTD-731-0555
...
75
HEX NUT MTD-712-0206
...
76
L-Wash. 1/2" I.D. MTD-736-0921
...
77
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
78
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
79
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
80
SEAT PIVOT BRACKET MTD-783-0039A
...
81
SEAT MTD-757-0264
...
82
SCREW-SL HEX SLF EX MTD-710-0407
...
83
PIPE ASSEMBLY-EXHAUST MTD-751-0341
...
85
HANDLE-PLA (Starter Rope) MTD-11263
...
86
SPRING SWITCH MTD-732-0257
...
87
HEX NUT 5/16-18 MTD-712-3010
...
88
Lock Wash. 5/16" I.D. MTD-936-0119
...
89
BRACKET-ROPE HDLE MTD-15655

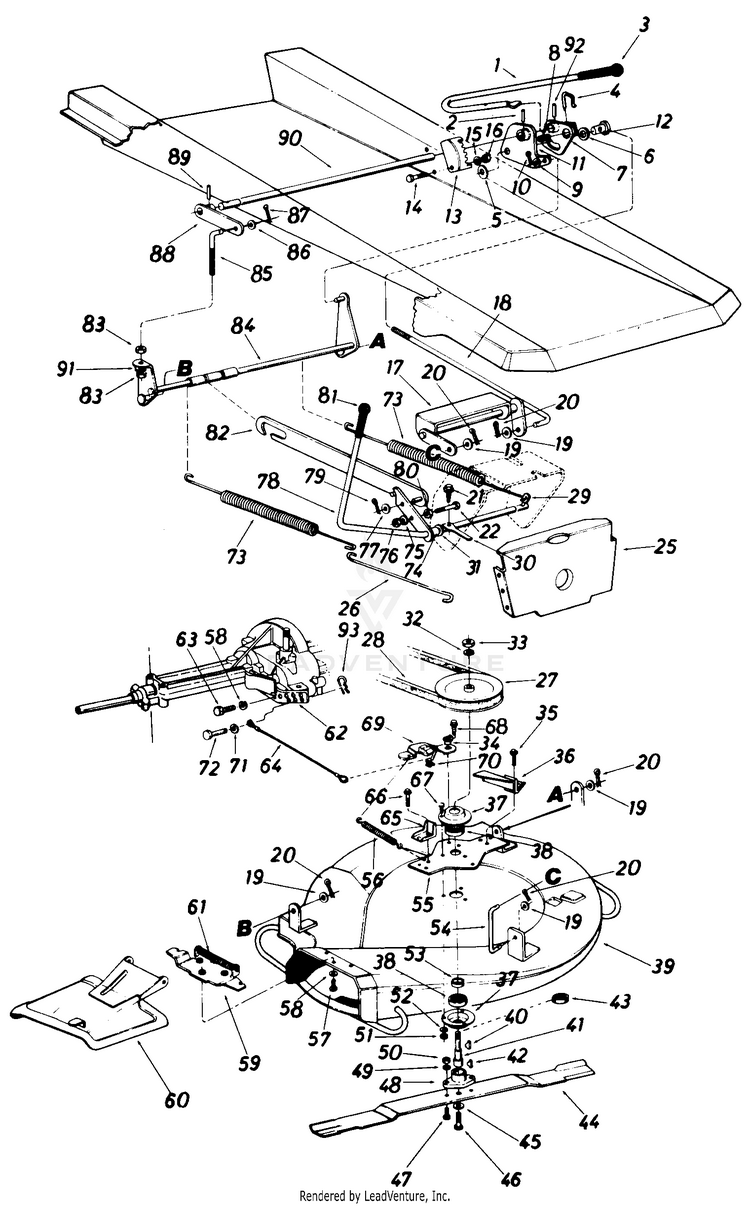

Riding (Part 2)

...
...
1
Deck Lift Handle MTD-747-0418
...
2
Spring Pin Spir. 1/4" Dia. x 1.50" Lg. MTD-715-0114
...
3
GRIP MTD-720-0143
...
4
PIN Special MTD-714-0166
...
5
Fl-Wash. 5/8" I.D. x 1.0" O.D. x .12 MTD-736-0162
...
6
Fl-Wash. 5/8" I.D. x 1.25" O.D. x .60 MTD-736-0187
...
7
Deck Lift Handle Brk't. Ass'y. MTD-15576
...
8
COMPRESSION SPRING MTD-732-0430
...
9
Fl-Wash. .385" I.D. x .87" O.D. x .06 MTD-736-0300
...
10
Cotter Pin 1181' Dia. x 1.00' MTD-714-0115
...
11
BRACKET ASSY-LIFT-LH MTD-15578
...
12
FERRULE MTD-711-0749
...
13
BRACKET-INDEX MTD-15581
...
14
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
DECK LIFT ASS'Y. FRONT MTD-15573
...
18
CONNECTING ROD MTD-747-0426
...
19
Fl-Wash. .385" I.D. x .87" O.D. x .06 MTD-736-0300
...
20
Cotter Pin 1/8" Dia. x 1.00" MTD-714-0115
...
21
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
22
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
25
BRACKET-PIVOT BAR MTD-15613
...
26
HOOK SPRING MTD-732-0451B
...
27
PULLEY MTD-756-0395
...
28
V-Belt 1/2 " x 52" Lg. MTD-954-0264
...
29
CLEVIS PIN MTD-711-0753
...
30
ACTUATOR-SWITCH MTD-732-0435
...
31
Fl-Wash. .531" I.D. x .930" O.D. x .050 MTD-736-0160
...
32
Fl-Wash. 5/8" I.D. MTD-736-0158
...
33
HEX NUT MTD-712-3015
...
34
Shoulder Spacer MTD-748-0234
...
35
Screw, 5/16-18 x .625 MTD-710-0604A
...
36
Belt Guard Ass'y. MTD-15653
...
37
Bearing Housing MTD-08253B
...
38
BALL BEARING MTD-741P0919B
...
39
26" Deck Ass'y. MTD-15628
...
xx
26" Deck Ass'y. Comp. (Service Only) MTD-15630
...
40
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
41
BLADE SPINDLE MTD-711-0405
...
42
#6 Hi-Pro Key 5/32" x 5/8" Dia. MTD-714-0365
...
43
SHIELD-BRG MTD-13703
...
44
26" BLADE MTD-942-0147
...
45
L-Wash. 3/8" I.D. Heavy Duty MTD-736-0217
...
46
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
47
Hex Bolt 5/16-24 x 1.00n Lg. Grade 5 MTD-710-0888
...
48
BLADE ADAP MTD-10769
...
49
Lock Wash. 5/16" I.D. MTD-936-0119
...
50
Hex Nut 5/16-24 Thd. MTD-912-3057
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
SPACER MTD-950-0142
...
54
Deck Link 3 9" Lg. MTD-747-0428
...
55
Belt Guard Plate Ass'y. MTD-15658
...
56
Spring .38" O.D. x 3.25" Lg. MTD-732-0157
...
57
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
58
L-Wash. 1/4" I.D. MTD-936-0329
...
59
ADAPTER MTD-11396
...
60
COVER-CHUT MTD-11634
...
61
TORSION SPRING MTD-732-0261
...
62
BELT GUARD-LOWER MTD-15626B-0637
...
63
Hex Bolt /1/4-20 x .62" Lg. MTD-710-0258
...
64
Brake Cable 11.75" Lg. MTD-727-0290A
...
65
GUARD ASSEMBLY MTD-10426
...
66
Screw, 5/16-18 x .625 MTD-710-0604A
...
67
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
68
Hex Wash. Hd. 3/8" x 75" Lg. MTD-710-0623
...
69
BRACKET AS MTD-16053
...
70
PUSH NUT MTD-726-0106
...
71
Fl-Wash. 1/4" I.D. x .501/ O.D. MTD-736-0142
...
72
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
73
EXTENSION SPRING MTD-732-0440
...
74
Sleeve .511" I.D. x .70"' x .37" Lg. MTD-750-0515
...
75
Lock Wash. 5/16" I.D. MTD-936-0119
...
76
HEX NUT 5/16-18 MTD-712-3010
...
77
Fl-Wash. .385" I.D. x .87" O.D. x .06 MTD-736-0300
...
78
LEVER ASSEMBLY-BLADE E MTD-15568A
...
79
Cotter Pin 1/8n Dia. x 1.00" Lg. MTD-714-0115
...
80
HEX NUT 5/16-18 MTD-712-3010
...
81
GRIP MTD-720-0143
...
82
BRACKET ASSY-DECK DR MTD-15644
...
83
Hex Nut 3/8-16 Thd. MTD-712-0798
...
84
Deck Link Ass'y. Rear MTD-15600
...
85
SCREW-DECK ADJ 3/8-16 THD MTD-710-0866
...
86
Fl-Wash. .385" I.D. x 87n O.D. x .06 MTD-736-0300
...
87
Cotter Pin 1/8n Dia. x 1.00 MTD-714-0115
...
88
BRACKET ASSY-LIFT-RH MTD-15609
...
89
Spring Pin Spir. 1/4n Dia. x 1 50n Lg MTD-715-0114
...
90
SHAFT-HGT ADJ-RR MTD-738-0550
...
91
L-Wash. 3/8" l.D. MTD-736-0169
...
92
SPRING PIN3/16 x 1.50 MTD-915-0134
...
93
Int. Cot. Pin 5/16" Dia. MTD-714-0104

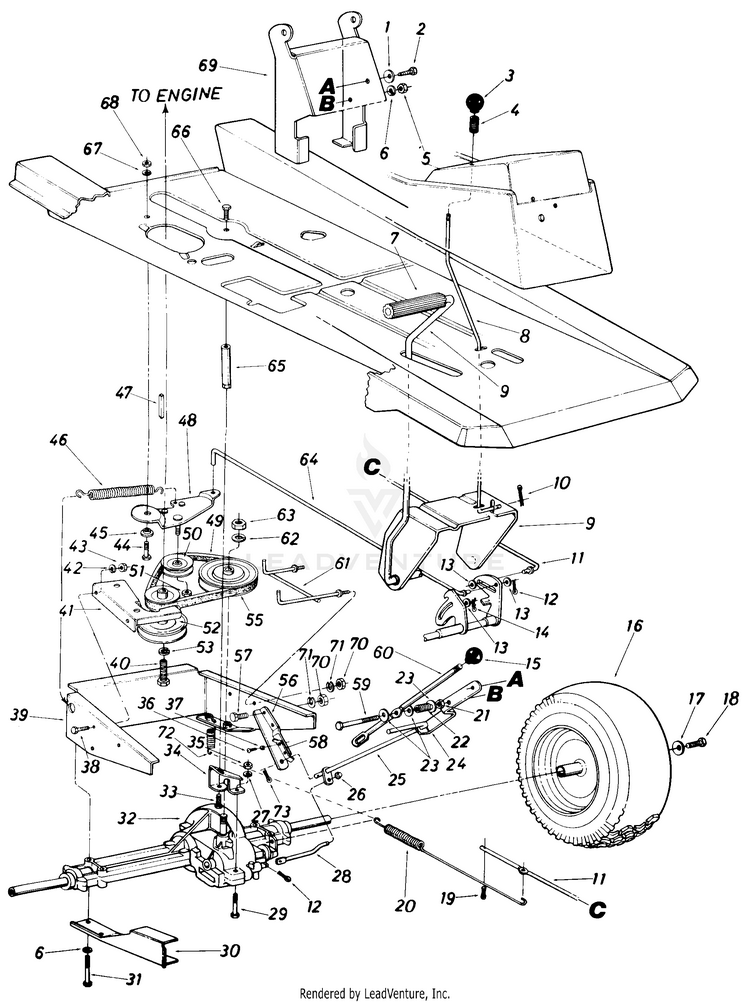

Riding (Part 3)

...
...
1
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
2
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
3
Ball Knob MTD-720-0187
...
4
Compression Spring MTD-732-0437
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
FOOT PAD MTD-735-0239A
...
8
BRAKE ROD LOCK MTD-747-0450
...
9
CLUTCH-BRAKE PEDAL ASS'Y. MTD-15562
...
10
Cotter Pin 3132" I.D. x 3/4" Lg.* MTD-714-0507
...
11
BRAKE ROD MTD-747-0431
...
12
Cotter Pin 1/8" x 1.0" Lg. MTD-714-0115
...
13
FLAT WASHER MTD-736-0275
...
14
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
15
Knob MTD-920-0232
...
16
Rear Whee I Ass 'y. MTD-NA
...
17
Bell-Wash. .345" I.D. x ..88 O.D. MTD-736-0242
...
18
Hex L-Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
19
Cotter Pin 118" Dia. x 1.25" Lg. MTD-714-0470
...
20
EXTENSION SPRING MTD-732-0389
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
SPRING MTD-932-0369
...
23
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
24
Shift Lever Brk't. MTD-15659
...
25
LEVER ASSEMBLY MTD-15637
...
26
PUSH NUT MTD-726-0106
...
27
L-Wash. 1/4" I.D. MTD-936-0329
...
28
Shift Rod MTD-747-0421
...
29
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
30
GUARD-BELT-LOWER MTD-15625
...
31
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
32
KIT-TRANSAXLE MTD-717-0775
...
33
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
34
BRACKET-TORQUE ROD MTD-15564
...
35
HEX NUT 1/4-20 MTD-912-0287
...
36
C-Sink AB S-Tap Scr. #8 x .50" Lg. MTD-710-0789
...
37
Push-ln Nut #10 MTD-726-0206
...
38
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
39
SUPPORT ASSY-TRANS MTD-15552
...
40
Hex Bolt 7/16-20 x 1.0" Lg. MTD-710-0314
...
41
Upper Engine Belt Guard MTD-15646
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
HEX NUT 1/4-20 MTD-912-0287
...
44
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
45
Shoulder Spacer MTD-748-0234
...
46
Ext. Spring MTD-732-0383
...
47
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
48
Id ler Bracket Ass'y. MTD-15651
...
49
5L "V"-BELT 30" LG. (Bare Back) MTD-754-0249
...
50
Idler Pulley MTD-756-04209
...
51
Hex Insert L-Nut 3/8-24 Thd. MTD-712-0116
...
52
Engine Pulley MTD-756-0391
...
53
L-Wash. 7/16" I.D. MTD-736-0171
...
55
PULLEY (Straight) MTD-756-0394
...
56
Shift Lever Support MTD-15624
...
57
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
58
SWITCH SPRING MTD-732-0420
...
59
Hex Bolt 5/16-18 x 2.25" Lg. MTD-710-0395
...
60
Upper Shift Lever MTD-747-0430
...
61
Belt Trap MTD-747-0429
...
62
L-Wash. 1/2" I.D. MTD-736-0921
...
63
HEX NUT MTD-712-0206
...
64
CLUTCH ROD MTD-747-0423
...
65
Torque Rod 4.325" Lg. MTD-711-0544
...
66
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
67
Lock Wash. 5/16" I.D. MTD-936-0119
...
68
HEX NUT 5/16-18 MTD-712-3010
...
69
Front Seat Bracket MTD-15897
...
70
HEX NUT 1/4-20 MTD-912-0287
...
71
L-Wash. 1/4" I.D. MTD-936-0329
...
72
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
73
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0111

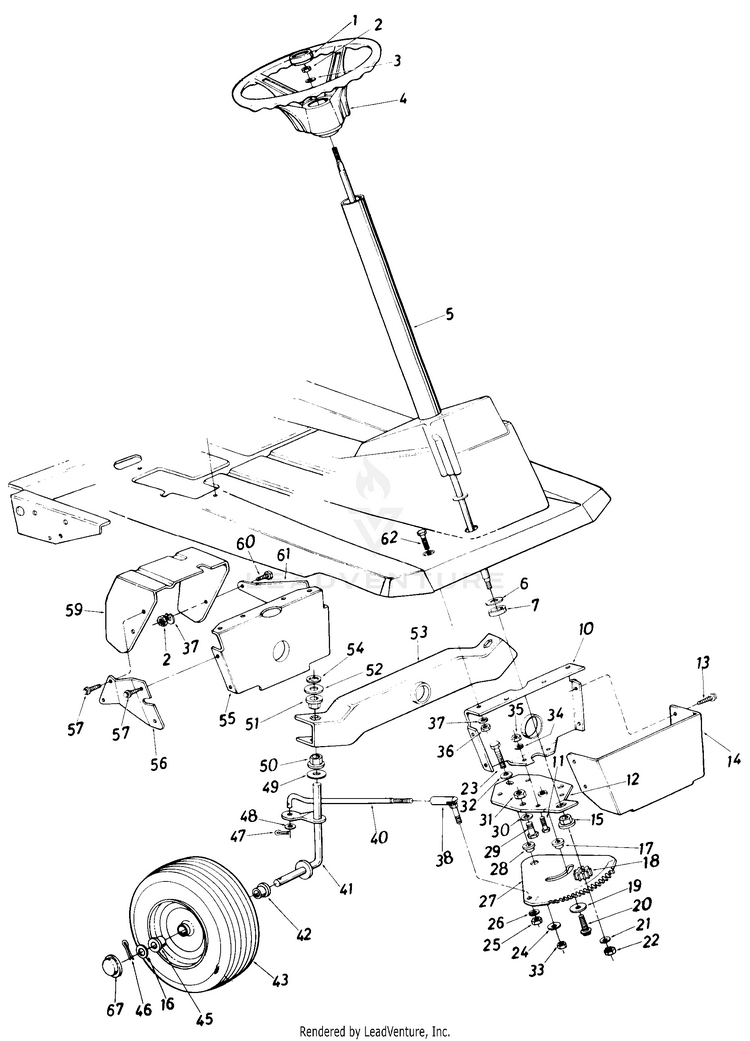

Riding (Part 4)

...
...
1
Steering Wheel Cap MTD-931-0220
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
4
STEERING WHEEL ASSEMBLY MTD-731-0219
...
5
Steering Shaft Ass'y. MTD-16042
...
6
Fl-Wash. .62" I.D. x 1.50" O.D. MTD-736-0187
...
7
SPACER MTD-950-0532
...
10
BRACKET-PIVOT BAR MTD-15613
...
11
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
12
BRACKET-ST MTD-15614
...
13
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
14
COVER-STEER GEAR MTD-15608
...
15
FLANGE BEARING MTD-941-0225
...
16
UNKNOWN MTD-NA
...
17
SPACER MTD-738-0541
...
18
PINION GEAR MTD-948-0290
...
19
Fl-Wash. .385" I.D. x 1.38" O.D. MTD-736-0320
...
20
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
21
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
22
Hex Nut 5/16-24 Thd. MTD-912-3057
...
23
Hex Bolt 3/8-24 x 1.25" Lg. Grade 5 MTD-710-0191
...
24
Fl-Wash. .385" I.D. x 1.38" O.D. MTD-736-0320
...
25
Hex Nut 3/8-24 Thd. MTD-712-0241
...
26
L-Wash. 3/8 I.D. MTD-736-0169
...
27
STEERING SEGMENT MTD-917-0472A
...
28
SPACER MTD-738-0541
...
29
SCREW 1/2-13 x .75 MTD-710-0689
...
30
Fl-Wash. .530" I.D. x .930" O.D. MTD-736-0160
...
31
HEX NUT MTD-712-0206
...
32
Bell-Wash. .385" I.D. x .88" O.D. MTD-736-0105
...
33
Hex Nut 3/8-24 Thd. MTD-712-0241
...
34
Lock Wash. 5/16" I.D. MTD-936-0119
...
35
HEX NUT 5/16-18 MTD-712-3010
...
36
UNKNOWN MTD-NA
...
37
UNKNOWN MTD-NA
...
38
Ball Joint MTD-923-0156
...
40
ROD-STEER TIE MTD-747-0417
...
41
Front Axle Ass'y. - R.H. MTD-983-0012
...
xx
AXLE ASSEMBLY (LH) (Not Shown) MTD-983-0011
...
42
Flange Bearing .632 ID MTD-741-0487C
...
43
FRONT WHEEL ASS'Y. COMP. MTD-734-1000
...
xx
Grease Fitting MTD-737-0146
...
45
UNKNOWN MTD-NA
...
46
Cotter Pin 118" Dia. x 1.25" Lg. MTD-714-0470
...
47
Cotter Pin 118" Dia. x 1.001' Lg. MTD-714-0115
...
48
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
49
Fl-Wash. .635" I.D. x 1.12" O.D. MTD-736-0156
...
50
FLANGE BEARING MTD-941-0225
...
51
UNKNOWN MTD-NA
...
52
Fl-Wash. .635" I.D. x 1.12" O.D. MTD-736-0156
...
53
PIVOT BAR ASSEMBLY MTD-15610C-0637
...
54
PUSH NUT SPEED MTD-926-0159B
...
55
BRACKET-PIVOT BAR MTD-15613
...
56
BRACKET-RE MTD-15694
...
57
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
59
CLUTCH-BRAKE PEDAL ASS'Y. MTD-15562
...
60
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
61
BRACKET REINFORCEMENT MTD-15699
...
62
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
xx
Hub Cap MTD-931-0484A
...
67
UNKNOWN MTD-NA

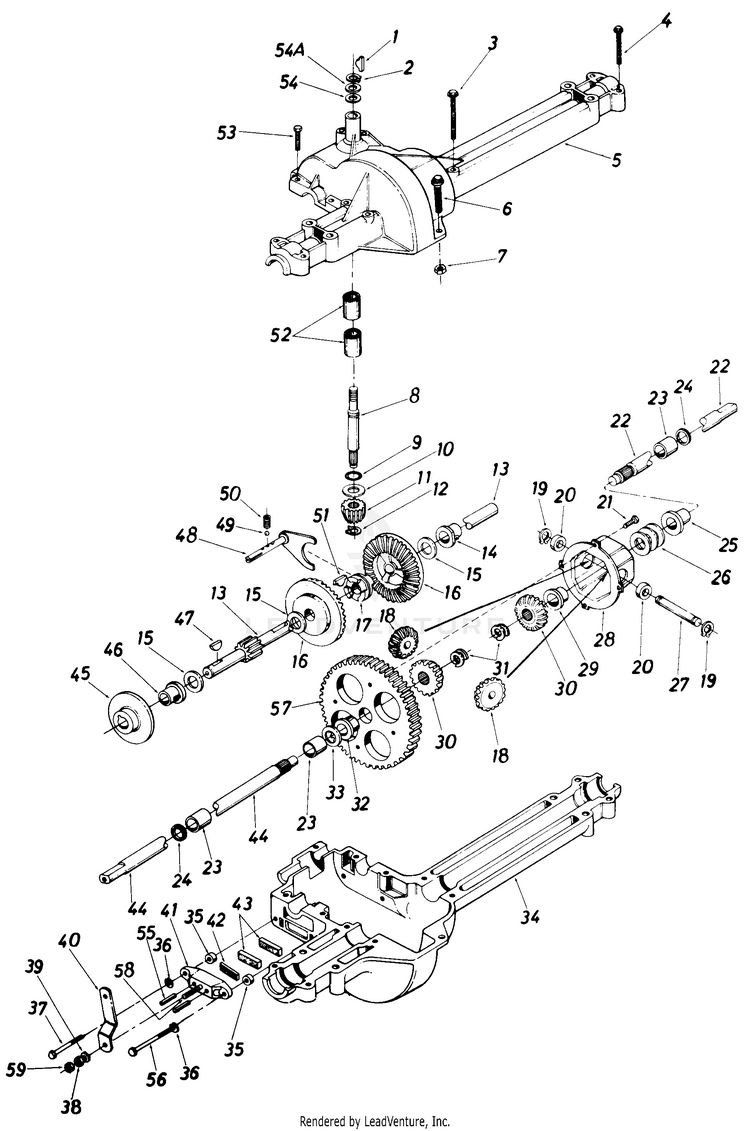

Single

...
...
1
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
2
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
3
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75 Lg. MTD-710-1026
...
4
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0809
...
5
UPPER HOUSING MTD-717-0764
...
6
HEX SCREW FL 1/4-20X.88 MTD-710-0889
...
7
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
8
Input Shaft MTD-717-0634A
...
9
SQUARE SEAL 5/8ID MTD-721-0178
...
10
THRUST WASHER MTD-936-0335
...
11
INPUT PINION 14T MTD-917-0633
...
12
Retaining Ring 7/16" Ext. MTD-716-0108
...
13
DRIVE SHAFT (LH) MTD-717-0768
...
14
Flange Brg. 5/8" I.D. x 3/4" Lg. MTD-941-0336
...
15
FLAT WASHER MTD-936-0349
...
xx
FLAT WASHER MTD-936-0336
...
xx
Fl-Wash. 5/8" I.D. x .040" O.D. MTD-736-0337
...
16
BEVEL GEAR 42 T MTD-717-0757
...
17
CLUTCH COLLAR MTD-917-0667
...
18
MITER GEAR MTD-717-1020
...
19
KIT-DIFF CROSS SHA MTD-753-0527
...
20
KIT-DIFF CROSS SHA MTD-753-0527
...
21
Pan Head Scr. 1/4-20 x .50" Lg. w/Patch MTD-710-0862A
...
22
AXLE (RH) MTD-917-0766
...
23
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
24
Oil Seal 3/4" I.D. MTD-721-0179
...
25
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
26
Fl-Wash. .760" I.D. x 1.49" O.D. MTD-736-0188
...
27
KIT-DIFF CROSS SHA MTD-753-0527
...
28
DIFFERENTIAL KIT MTD-753-0546
...
29
FLANGE BEARING MTD-741-0338
...
30
MITER GEAR MTD-717-0687
...
31
Retaining Ring MTD-716-0144
...
32
Bearing, Flange, .75" I.D. x .587" MTD-941-0376
...
33
Fl-Wash. .760" I.D. x 1.49" O.D. MTD-736-0188
...
34
TRANS HOUS MTD-717-0761
...
35
SPACER MTD-750-0555
...
36
L-Wash. 1/4" I.D. MTD-936-0329
...
37
HEX SCREW 1/4-20X1 MTD-910-0886
...
38
Hex Nut 5/16-24 Thd. MTD-912-3057
...
39
Fl-Wash. .344" I.D. x .8751' O.D. MTD-736-0159
...
40
ACTUATING ARM (LH) MTD-717-0772B
...
41
YOKE MTD-717-0679
...
42
PUCK PLATE MTD-917-0682
...
43
BRAKE PUCK MTD-917-0678
...
44
AXLE (LH) MTD-917-0765
...
45
BRAKE DISC MTD-717-0677
...
46
Flange Bearing 5/8" I.D. x 15/16" Lg. MTD-941-0337
...
47
KEY 3/16 x 5/8 H MTD-914-0161
...
48
SHIFT FORK ASSEMBLY MTD-917-0754
...
49
DETENT BALL .250 MTD-741-0862
...
50
DETENT SHAFT SPRING MTD-932-05125
...
51
#9 Hi-Pro Key 3116" x 3/4" Dia. HT MTD-714-0126
...
52
NEEDLE BEARING MTD-941-0335
...
53
Screw, Hex MTD-710-0788
...
54
FLAT WASHER MTD-936-0336
...
54A
Fl-Wash. 5/8" I.D. x .040 MTD-736-0337
...
55
Actuating Pin 5/16" Dia. MTD-741-0343
...
56
HEX SCREW 1/4-20X1 MTD-910-0886
...
57
DIFFERENTIAL GEAR MTD-717-0759
...
58
BOLT MTD-717-0796
...
59
HEX JAM NUT 5/16-24 MTD-712-0256
...
xx
Grease, Benalene 8 oz tube (10 oz.) MTD-737-0300A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
