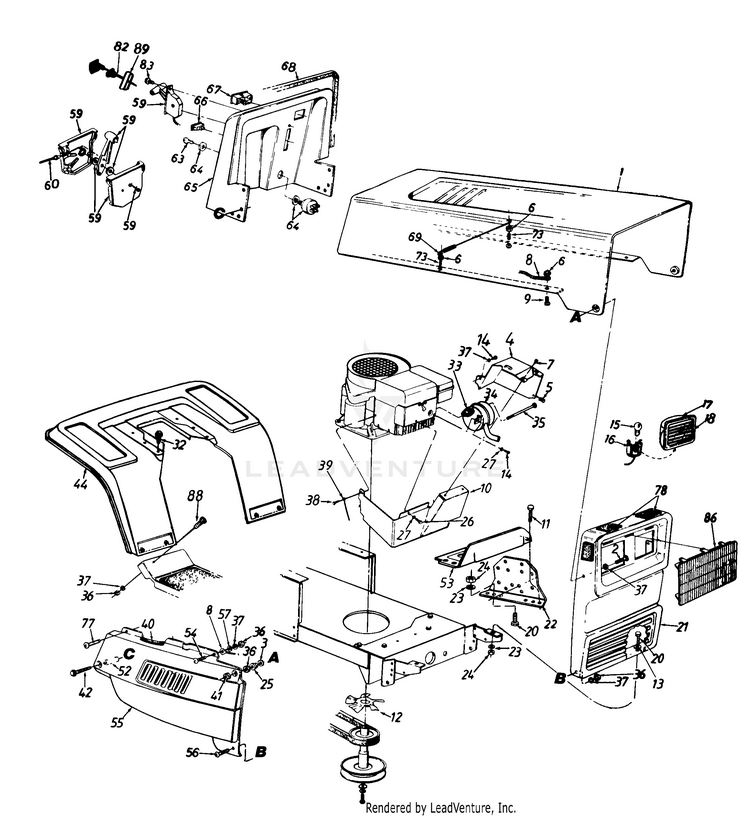

HEAT SHEID ASSEMBLY Used w/Single Cylinder Engine Only.
MTD-683-0042A
5
Speed Nut #10-24 Thd. Used w/Single Cylinder Engine Only.
MTD-712-0147
6
Hex Sems Nut #10-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-0272
7
Hex B-Tap Scr. #10 x .38" Used w/Single Cylinder Engine Only.
MTD-910-0429
Truss Hd. Scr. #10-24 x 1/2" For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0473
10
SHIELD-MUF Used w/Single Cylinder Engine Only.
MTD-16936
11
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.
MTD-710-0603
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0118
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
24
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-3010
Gasket-Exhaust Used w/Single Cylinder Engine Only.
MTD-BS-692236
34
MUFFLER Used w/Single Cylinder Engine Only.
MTD-951-0465A
xx
MUFFLER Used w/Single Cylinder Engine Only.
MTD-951-0443A
35
SHOULDER SCREW Used w/Single Cylinder Engine Only.
MTD-938-0636
36
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
37
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0329
38
Truss Mach. Scr. 5/16-18 x .75" Lg. Used w/Single Cylinder Engine Only. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0323
39
WIRE Used w/Single Cylinder Engine Only.
MTD-725-0980
Truss Mach. Scr. 1/4-20 x.75" Lg. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0924
55
SIDE PANEL (RH) Used w/Single Cylinder Engine Only.
MTD-16725
xx
COVER-SIDE (RH) Used w/Single Cylinder Engine Only.
MTD-16723
xx
SIDE PANEL (RH) Used w/Twin Cylinder Engine Only.
MTD-16725
xx
PANEL-SIDE (LH) Used w/Single Cylinder Engine Only. (Not Shown)
MTD-17309B
xx
PANEL-SIDE (LH) Used w/Twin Cylinder Engine Only. (Not Shown)
MTD-17309B
56
Truss Mach. Scr. 1/4-20 x .50" Lg. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0286
