MTD 132-667F141 (1992) Lawn Tractor

Model: 132-667F141 (1992)

Back To Assemblies

Save Part Not Listed?
product name

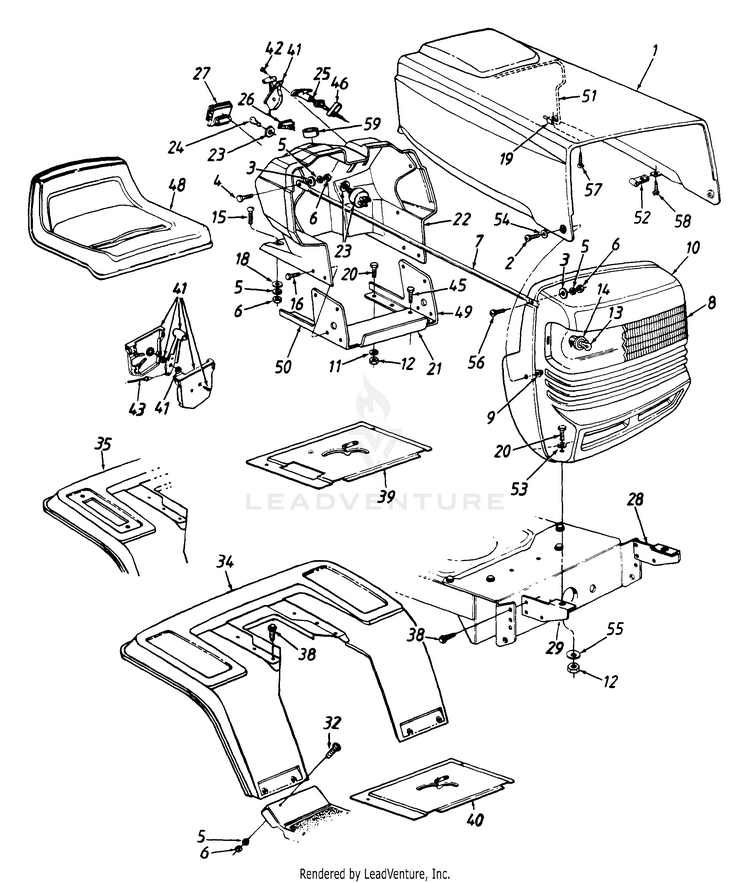

Hood, Fender & Dash

...
...
1
HOOD MTD-783-0020
...
2
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
3
Fl-Wash. .28" I.D. x.75" O.D. MTD-736-0342
...
4
Hex Bolt 1/4-20 x .62" Lg." MTD-710-0258
...
5
L-Wash. 1/4" I.D. MTD-936-0329
...
6
HEX NUT 1/4-20 MTD-912-0287
...
7
ROD-GRILLE MTD-749-0916
...
8
HEADLIGHT LENS New part MTD-731-1362
...
9
LOCK NUT 1/4 x 28 MTD-712-0380
...
10
Grille New part MTD-783-0018
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Miniature Lamp 12V Socket Type MTD-925-0963
...
14
HEADLIGHT SOCKET (1/4 TURN) New part MTD-925-1649A
...
15
Carriage Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
16
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
18
Bolt Retainer 1/4" I.D. MTD-726-0233
...
19
U-TYPE SPEED NUT MTD-926-0130
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
FUEL TANK SUPPORT New part MTD-17633A
...
22
DASH PANEL New part MTD-931-1348
...
23
Ignition Switch MTD-925-0267B
...
24
Key MTD-925-0201
...
25
Choke Control 23" New part Used w/ Single Cylinder Engine only. MTD-946-0616A
...
xx
Choke Control Used w/ Twin Cylinder Engine only. MTD-746-0614A
...
xx
CONTROL-CHOKE VANGUARD MTD-746-0881
...
26
Light Switch MTD-925-0634
...
27
Ammeter MTD-925-0925
...
28
BRACKET-GR MTD-15821
...
29
BRACKET-GRILLE (RH) MTD-15822
...
32
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
34
FENDER-RR W/FRAME Model 638 MTD-17870C
...
35
Fender w/ Cutout Model 638; New part MTD-17871
...
38
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
39
SHIFT COVER MTD-17954B-0637
...
40
Shift Cover MTD-17286B-0637
...
41
Throttle Box Ass'y. MTD-831-0823A
...
42
Truss Mach. A8-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
43
Throttle Control Wire Used w/ Single Cylinder Engine only. MTD-746-0501
...
xx
Throttle Wire Used w/ Twin Cylinder Engine only. MTD-946-0634
...
45
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603
...
46
CLIP-CHOKE RETAINER MTD-17782
...
48
LOW BACK SEAT BLACK W/SWITCH New part MTD-957-0378
...
49
DASH REINFORCEMENT BRKT. (LH) New part MTD-783-0035
...
50
DASH REINFORCEMENT BRKT. (RH) New part MTD-783-0036
...
51
HOOD SPRING New part MTD-732-0714
...
52
Speed Nut #10-16 Thd. MTD-726-0139
...
53
Fl-Wash. .344" I.D. x 1" O.D. MTD-736-3078
...
54
Spr. Wash. .39" I.D. x .62" O.D. MTD-736-0413
...
55
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
56
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
57
Pan Hd. Scr. #10-24 x .75" Lg. MTD-710-3009
...
58
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
59
COLLAR-STR COLUMN New part MTD-731-1367
...
xx
Muffler (Single Cylinder Engines) MTD-NA
...
xx
MUFFLER ASSEMBLY Used on B&S engine 10, 11, 12 & 12.5 H.P. MTD-951-0302
...
xx
CONDUIT L-NUT Related part for Muffler MTD-712-0250
...
xx
MUFFLER Used on Tecumseh engine 12 H.P. MTD-951-0443A
...
xx
Gasket-Exhaust Related part for Muffler MTD-BS-692236
...
xx
SHOULDER SCREW Related part for Muffler MTD-938-0636
