MTD 131824H (1991) Lawn Tractor

Model: 131824H (1991)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

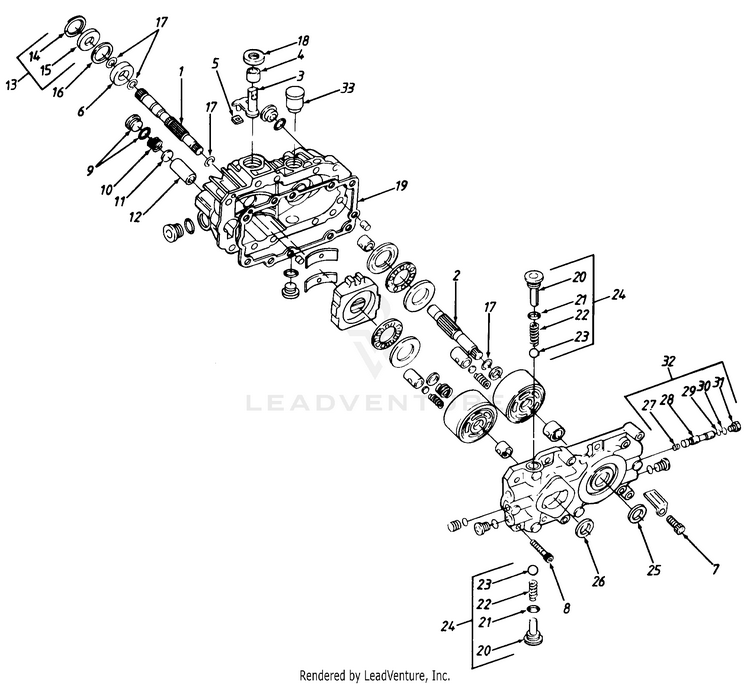

Hydrostatic

...
...
1
SHAFT MTD-HG-2003022P
...
2
SHAFT - MOTOR MTD-SU-J1020651
...
3
Trunnion Arm MTD-HG-2003005
...
4
Bearing, Journal MTD-HG-2513036
...
5
Slot Guide MTD-HG-2000015
...
6
BALL BEARING MTD-HG-2003043P
...
7
SCREW, SOCKET HEAD MTD-SU-JAAM0802001
...
8
SCREW-SOCKET HD MTD-HG-9007314-0808
...
9
Plug MTD-HG-9005110-8700
...
10
SPRING-FILTER MTD-HG-2003010
...
11
THRUST WASHER MTD-HG-2000011
...
12
FILTER MTD-HG-2003003
...
13
KIT-SEAL (Incl. 14 & 15) MTD-SU-2513001
...
14
INTERNAL SNAP RING MTD-716-04098
...
15
Lip Seal MTD-HG-9008000-0128
...
16
Spacer MTD-HG-2003018
...
17
Wire Retaining Ring MTD-HG-2003016
...
18
Lip Seal MTD-HG-9008000-0126
...
19
GASKET MTD-HG-2003001
...
20
PLUG MTD-SU-J1041007
...
21
O-Ring MTD-HG-9004201-3700
...
22
Spring MTD-SU-J1041195
...
23
BALL-DETENT MTD-SU-JHKW03
...
24
CHECK VALVE KIT (Includes Ref. No. 20, 21, 22 & 23) MTD-HG-2513014
...
25
LIP SEAL MTD-HG-9008000-0127
...
26
LIP SEAL MTD-HG-50442P
...
27
Spring MTD-HG-2513011
...
28
SPOOL, BYPASS MTD-SU-J1041152
...
29
O-RING MTD-HG-9004175-0027
...
30
O-RING MTD-HG-9004201-2500
...
31
PLUG MTD-SU-J1041153
...
32
Spring (Includes Ref. No. 27, 28, 29, 30 & 31) MTD-HG-2513011
...
xx
Kit, Overhaul Seal [Includes Ref. No. 14, 15, 16, 17 (Qty. 4), 18, 19, 21 (Qty. 2) 25, 26 MTD-HG-2513013
...
33
RESERVOIR MTD-917-3049
