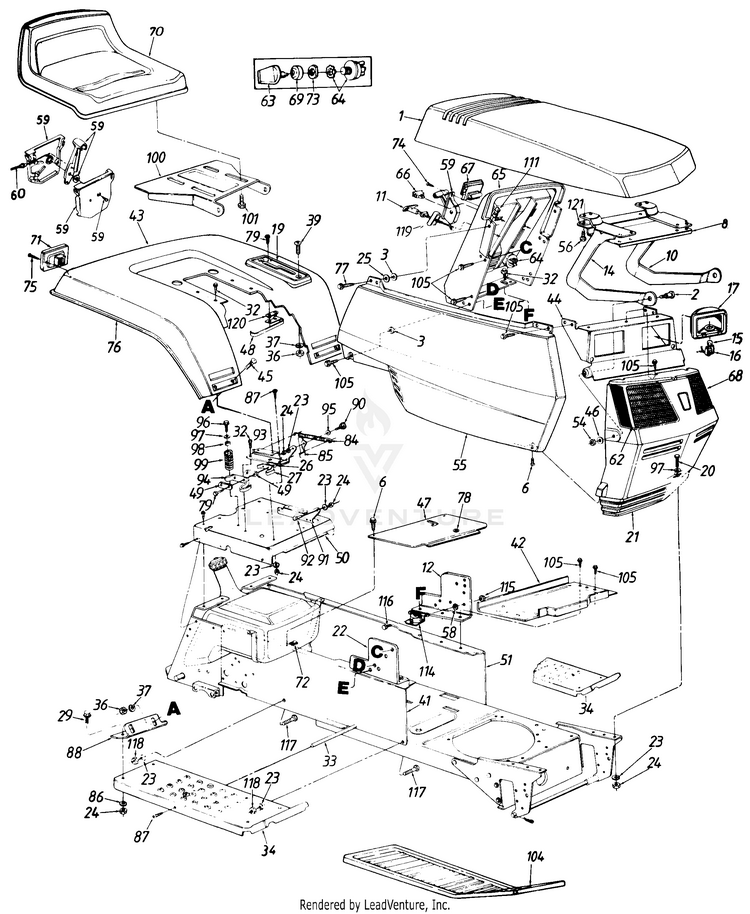

MTD 131824H (1991) Lawn Tractor

Model: 131824H (1991)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
HOOD MTD-16823
...
2
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
3
Bolt Retainer 1/4" I.D. MTD-726-0233
...
6
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
8
REINFORCEM MTD-16808
...
10
HOOD HINGE MTD-17271
...
11
Choke Control MTD-746-0614A
...
12
BRACKET-DA MTD-17294
...
14
Hood Hinge R.H. MTD-17270
...
15
Miniature Lamp 12V Socket Type MTD-925-0963
...
16
HEADLAMP SOCKET MTD-925-1058A
...
17
HEADLIGHT HOUSING MTD-931-0705
...
19
HYDRO INDEX BRACKET MTD-731-1053A
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
Grille MTD-731-0935A
...
22
BRACKET-DASH MTD-17293
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
26
Insulator Boss Plate MTD-726-0278
...
27
Seat Spring Switch MTD-725-1439
...
29
Hex Bolt 5/16-18 x 1.0" Lg. MTD-710-0376
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
33
ROD-RUNNING BOARD MTD-738-0435
...
34
RUNNING BOARD (RH) MTD-16922
...
xx
RUNNING BOARD (LH) MTD-16921
...
36
HEX NUT 1/4-20 MTD-912-0287
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
41
R.H SIDE FRAME MTD-17360
...
42
BRACKET-MT MTD-17635
...
43
REAR FENDER MTD-17330
...
44
BRACKET-LIGHT MTD-17223
...
45
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
46
Fl-Wash. .328" I.D. x .68" O.D. MTD-736-0278
...
47
COVER-TRANSMI MTD-17393
...
48
SAFETY SWITCH KIT MTD-725-0759
...
49
Insulator Plate MTD-726-0279
...
50
PIVOT BRACKET ASSEMBLY MTD-983-0108A-0637
...
51
L.H. SIDE FRAME MTD-17361A
...
54
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
55
SIDE COVER (RH) MTD-17448
...
xx
COVER-SIDE (Not Shown) MTD-17447
...
56
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
58
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
59
Throttle Control Box Ass'y. MTD-831-0823A
...
60
Throttle Wire MTD-946-0634
...
62
Lens-R.H. MTD-931-0948
...
63
Key MTD-925-0201
...
64
Ignition Switch MTD-925-0267B
...
65
DASH PANEL MTD-731-0958
...
66
Light Switch MTD-925-0634
...
67
Ammeter MTD-925-0925
...
68
LENS (LH) MTD-931-0949
...
69
Ignition Switch Cap MTD-725-1347
...
70
Seat - 14-1/4" High MTD-957-0350
...
71
Taillight Ass'y. MTD-725-3018
...
72
Speed Nut #10Z MTD-726-0139
...
73
IGNITION SWITCH NUT MTD-925-1346
...
74
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
75
SCREW #6-20 x .625 MTD-710-0936
...
76
Trim Strip 81" MTD-731-0511-81
...
77
Hex Wash. Hd. Tap Scr. 1/4 x 75" Lg. MTD-710-0642
...
78
BUSHING MTD-731-0405
...
79
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
84
Extension Spring MTD-932-0581B
...
85
BRACKET-SEAT LIFT MTD-17239C
...
86
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
87
Truss Machine Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
88
BRACKET-FENDER (RH) MTD-17406
...
xx
FENDER BRACKET - L.H MTD-17407
...
90
Shld. Bolt .437" Dia. x .268" MTD-738-0296
...
91
BRACKET-SEAT SUP-L MTD-17701-0637
...
92
Shoulder Bolt MTD-938-0155
...
93
BRACKET-SEAT SUP-R MTD-17702-0637
...
94
Outer Seat Spring Switch MTD-925-1303
...
95
Spr. Wash. 7/16" I.D. MTD-936-0141
...
96
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
97
Fl-Wash. .344" I.D. MTD-736-0159
...
98
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
99
COMPRESSION SPRING MTD-732-0588
...
100
SEAT PIVOT BRACKET MTD-783-0039A
...
101
Hex Tap Scr. 3/8-16 x .75" MTD-710-0623
...
104
FOOT PAD MTD-731-1051
...
105
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
111
SPEED NUT 1/4-20 MTD-712-0185
...
114
Solenoid MTD-925-1426A
...
115
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
116
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
117
Rib Neck Bolt 5/16-24 x .75" Lg. MTD-710-1012
...
118
Hex Nut 5/16-24 Thd. MTD-912-3057
...
119
CLIP-CHOKE RETAINER MTD-17782
...
120
Insulatop Nut Plate MTD-926-0320
...
121
Part Specification Not Listed MTD-NA
