MTD 131824H (1991) Lawn Tractor

Model: 131824H (1991)

Back To Assemblies

Save Part Not Listed?
product name

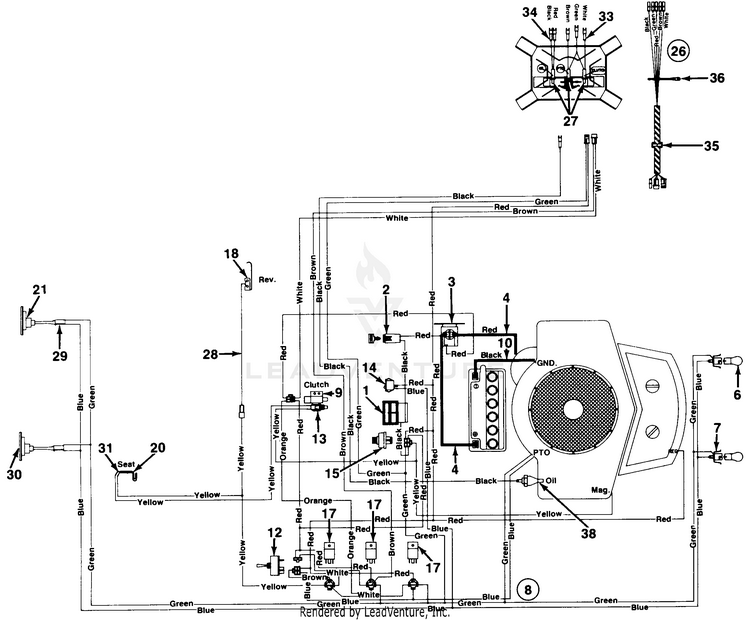

Electrical

...
...
1
Ammeter MTD-925-0925
...
2
CIRCUIT BREAKER 20 AMP MTD-725-1382
...
3
Solenoid MTD-925-1426A
...
4
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
6
Miniature Lamp 12V Socket Type MTD-925-0963
...
7
HEADLAMP SOCKET MTD-925-1058A
...
8
WIRE HARNESS MTD-629-0034
...
9
SWITCH MTD-925-04039
...
10
6 GA. BLACK WIRE MTD-725-0996
...
xx
BATTERY 275CCA MTD-725-1430
...
12
Safety Switch (PTO) MTD-925-0893
...
13
SAFETY SWITCH (CLUTCH) MTD-725-0379
...
14
Light Switch MTD-925-0634
...
15
Ignition Switch MTD-925-0267B
...
17
RELAY MTD-925-1375
...
18
SAFETY SWITCH KIT MTD-725-0759
...
20
Outer Seat Spring Switch MTD-925-1303
...
21
Taillight MTD-725-3018
...
26
WIRE HARNESS-MONITOR MTD-629-0047
...
27
Monitor Bulb MTD-925-1365
...
28
WIRE MTD-725-1399
...
29
TAIL LIGHT HARNESS MTD-725-1380
...
30
BULB MTD-725-3020
...
31
Safety Switch (Seat) MTD-725-1439
...
xx
BRACKET-SWITCH MTG (Not Shown) MTD-725-1440
...
33
Monitor Light Harness Dual MTD-629-0044
...
34
Monitor Light Harness Single MTD-629-0045
...
35
WIRE CLIP MTD-726-0314
...
36
Cable Tie MTD-726-0197
...
xx
MOUNT-CABLE TIE (Not Shown) MTD-726-0313
...
38
OIL PRESSURE SWITCH MTD-751-0537
