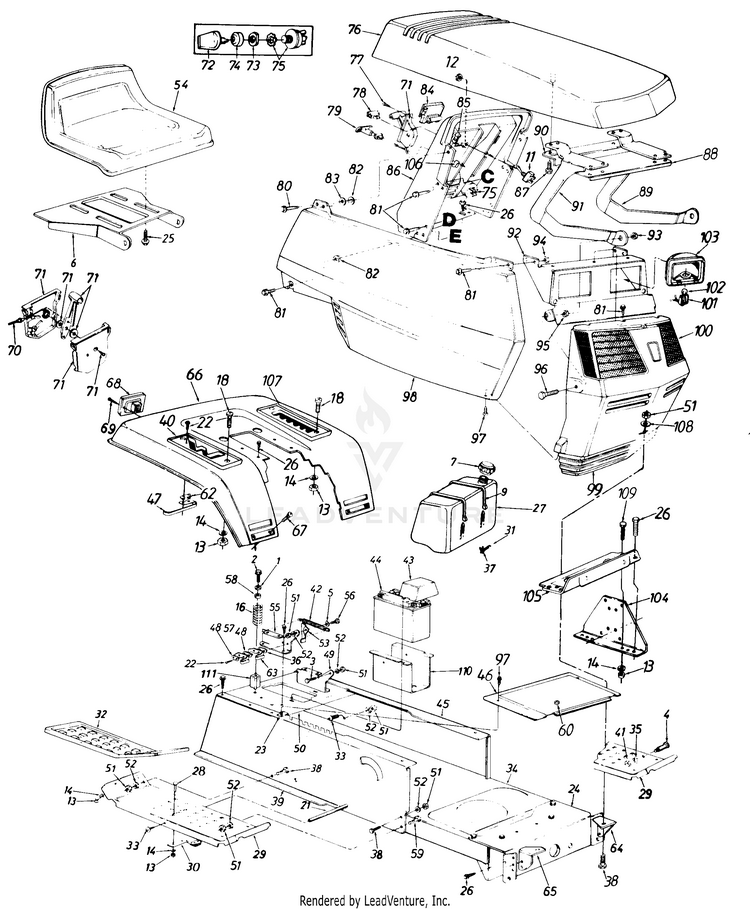

MTD 131784G (1991) Lawn Tractor

Model: 131784G (1991)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
Fl-Wash. .344" I.D. x .875" MTD-736-0159
...
2
Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg. MTD-710-1208
...
3
Shoulder Bolt MTD-938-0155
...
4
Shld. Bolt .50" Dia. x .84" MTD-738-0145
...
5
Spr. Wash. 7/16" I.D. MTD-936-0141
...
6
SEAT PIVOT BRACKET MTD-783-0039A
...
7
TANK CAP MTD-751-0603B
...
9
Cable Tie MTD-726-0230
...
11
Safety Switch (PTO) MTD-925-0893
...
12
HEX NUT 1/2-27 x .100 THK MTD-712-3014
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
16
COMPRESSION SPRING MTD-732-0735A
...
18
rruss Mach. Scr. 1/4-20 x .75" Lg. MTD-710-0924
...
21
ROD-RUNNING BOARD MTD-738-0526
...
22
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
23
Speed Nut #10Z MTD-726-0139
...
24
PIVOT BAR BRACKET MTD-783-0041C
...
25
Hex Tap Scr. 3/8-16 x .75" MTD-710-0623
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
27
FUEL TANK 1.36 GAL MTD-751-0555D
...
28
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
29
RUNNING BOARD (R.H. & L.H.) MTD-17770H
...
30
Blade Brake Assembly MTD-961-0168D
...
31
FUEL HOSE 1/4-36" MTD-751-22813-36
...
32
FOOT PAD (LH) MTD-731-0911
...
xx
FOOT PAD (RH) MTD-731-0912
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
34
LOWER FRAME MTD-17620B
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Insulator Boss Plate MTD-726-0278
...
37
Hose Clamp MTD-726-0205
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
Upper Frame R.H. MTD-17830
...
40
FWD/REV INDEX BRACKET MTD-931-1147
...
41
Hex Nut 3/8-16 Thd. MTD-712-0798
...
42
Extension Spring MTD-932-0581B
...
43
BATTERY COVER MTD-731-1200
...
44
BATTERY 275CCA MTD-725-1430
...
45
Upper Frame L.H. MTD-17831
...
46
Shift Cover MTD-17835
...
47
SAFETY SWITCH KIT MTD-725-0759
...
48
Insulator Plate MTD-726-0279
...
49
L.H. Pivot Seat Support Brkt. MTD-17951A-0637
...
50
HITCH PLATE MTD-17953
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
BRACKET-SEAT LIFT MTD-17239C
...
54
Seat - 14-1/4" High MTD-957-0350
...
55
R. H. Pivot Seat Support Brkt. MTD-17950A-0637
...
56
Shld. Bolt .437" Dia. x .268" MTD-738-0296
...
57
Outer Seat Spring Switch MTD-925-1303
...
58
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
59
Hex Wash. TT-Tap Scr. 5/16-18 x 718" Lg. MTD-710-0650
...
60
BUSHING MTD-731-0405
...
62
Insulatop Nut Plate MTD-926-0320
...
63
Safety Switch (Seat) MTD-725-1439
...
64
BRACKET-GRILLE MTG MTD-705-0167
...
65
BRACKET-GRILLE MTG (RH) MTD-705-0166
...
66
Fender MTD-17326A
...
67
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
68
Taillight MTD-725-3018
...
69
SCREW #6-20 x .625 MTD-710-0936
...
70
Throttle Wire MTD-946-0634
...
71
Throttle Control Box Ass'y. MTD-831-0823A
...
72
Key MTD-925-0201
...
73
IGNITION SWITCH NUT MTD-925-1346
...
74
Ignition Switch Cap MTD-725-1347
...
75
Ignition Switch MTD-925-1396A
...
76
HOOD (RADIANT YELLOW) MTD-931-1433
...
77
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
78
Light Switch MTD-925-0634
...
79
Choke Control 38" Lg. MTD-746-0614A
...
80
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg . MTD-710-0642
...
81
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
82
Push Nut Fastener MTD-726-0233
...
83
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
84
Ammeter MTD-925-0925
...
85
SPEED NUT 1/4-20 MTD-712-0185
...
86
DASH PANEL MTD-731-0960
...
87
Hex Wash. Hd. B-Tap Scr. 1/4 x.62" Lg. MTD-710-0896
...
88
REINFORCEM MTD-16808
...
89
HOOD HINGE MTD-17761
...
90
HOOD REINCEMENT SPACER MTD-17762
...
91
HOOD HINGE MTD-17760
...
92
BRACKET-LIGHT MTD-17223
...
93
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
94
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
95
Hex Jam Nut 5/16-18 Thd. MTD-712-3007
...
96
Hex Bolt 5/16-18 x 718" Lg. MTD-710-3038
...
97
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
98
SIDE COVER (RH) MTD-731-0938
...
xx
COVER-SIDE (LH) (Not Shown) MTD-731-0943
...
99
Grille MTD-731-0935A
...
100
LENS (LH) MTD-931-0949
...
xx
Lens-R.H. MTD-931-0948
...
101
HEADLAMP SOCKET MTD-925-1058A
...
102
Miniature Lamp 12V Socket Type MTD-925-0963
...
103
HEADLIGHT HOUSING MTD-931-0705
...
104
DASH SUPPORT BRACKET MTD-17300D
...
105
BATTERY BRACKET MTD-17633
...
106
CLIP-CHOKE RETAINER MTD-17782
...
107
INDEX BRACKET 7 SPEED MTD-931-1746
...
108
FLAT WASHER MTD-736-0275
...
109
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
110
BATTERY TRAY MTD-17952A-0637
...
111
SPRING SPACER MTD-748-0347A
