MTD 131784G (1991) Lawn Tractor

Model: 131784G (1991)

Save Part Not Listed?

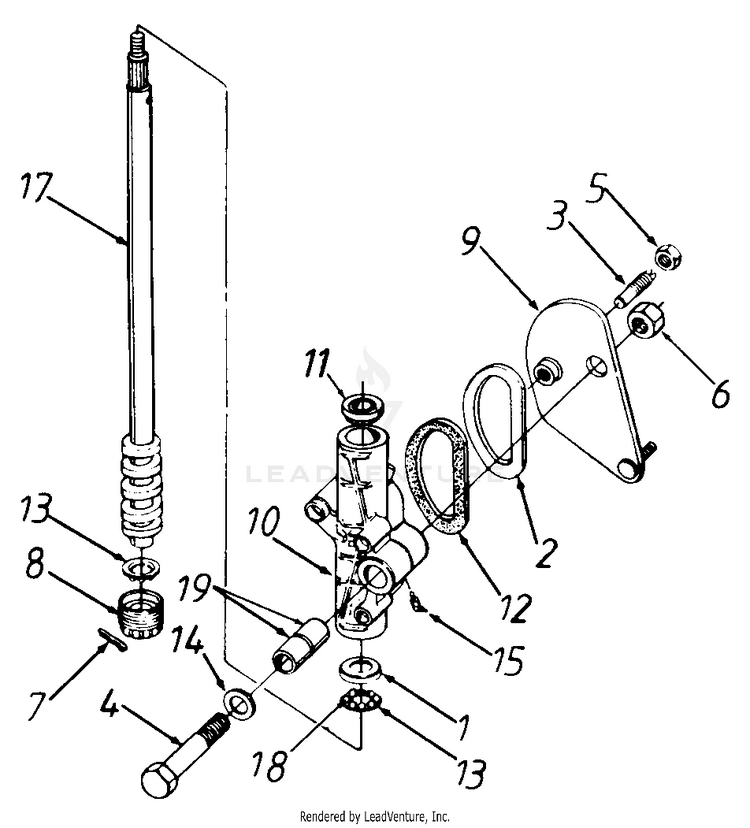

Steering

BEARING CUP MTD-903-1029

SEAL RETAINER MTD-703-1031

Cam Follower MTD-911-3149A

PIVOT SHAFT MTD-711-3208

HEX JAM NUT 9/16-1 MTD-712-3062

Hex Crown L-Nut 5/8-18 Thd. MTD-712-3063

Cotter Pin 1/8" Dia. MTD-714-0474

ADJUSTMENT PLUG ASSEMBLY MTD-717-1048

STEERING ARM ASSEMBLY MTD-717-1219

HOUSING AS MTD-719-0285

OIL SEAL MTD-721-0260

Seal MTD-923-3039

BALL RETAINER MTD-731-3040

Fl-Wash. .781" I.D. x 1.25" O.D. MTD-736-3029

Grease Fitting MTD-737-3001

Steering Shaft Ass'y. MTD-611-0007

BALL-5/16 MTD-741-3022

BUSHING MTD-748-3008

Grease #251 E.P. (4 oz. Req'd.) MTD-737-3007

Steering Ass'y. Comp. (Incl. Ref. Nos. 1 thru 19) MTD-618-0030
