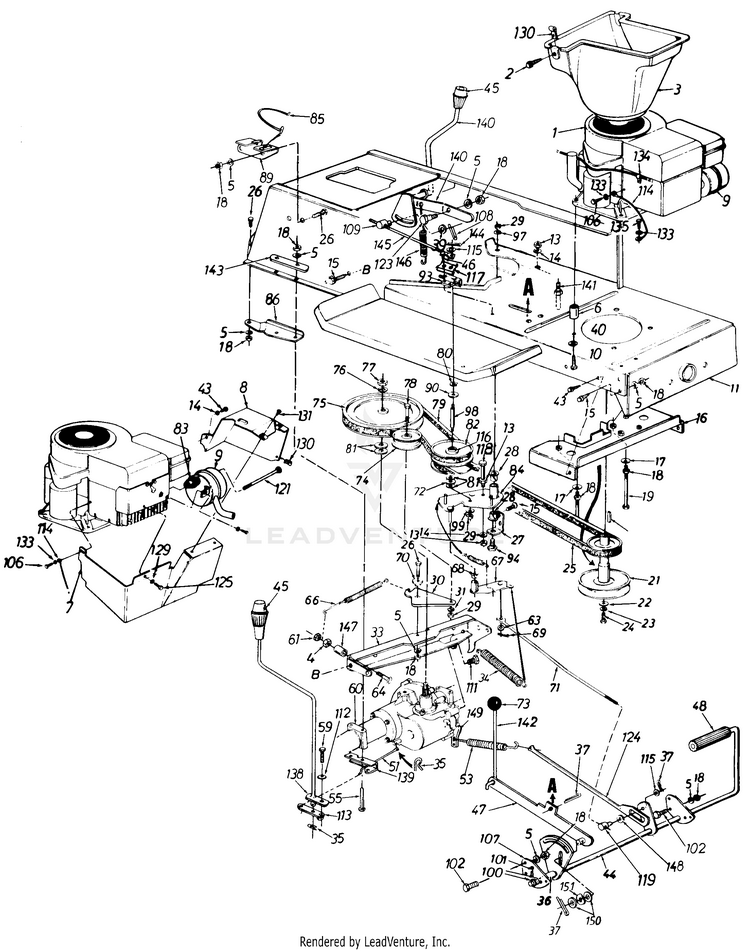

MTD 131754F (1991) Lawn Tractor

Model: 131754F (1991)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
Engine MTD-NA
...
2
Truss Mach.Scr. #10-24 x .5" Lg. MTD-710-0473
...
3
DUCT-AIR MTD-731-1072
...
4
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
5
Lock Wash. 5/16" I.D. MTD-936-0119
...
6
SPACER MTD-750-0777
...
7
SHIELD-MUF MTD-16936
...
8
HEAT SHEID ASSEMBLY MTD-683-0042A
...
9
MUFFLER MTD-951-0465A
...
10
Hex L-Wash. Tap Scr. 3/8-16 Thd. MTD-710-1007
...
11
LOWER FRAME MTD-17620B
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Screw, 5/16-18 x .625 MTD-710-0604A
...
16
GUARD BRACKET MTD-17893
...
17
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
Hex Bolt 5/16-18 x 4.0" MTD-710-0190
...
xx
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
21
Engine Pulley MTD-753-0635
...
22
Fl-Wash. 7/16" I.D. x 1.25" MTD-736-0322
...
23
L-Wash. 7/16" I.D. MTD-736-0171
...
24
Hex Bolt 7/16-20 x 1.50" Lg. MTD-710-0757
...
25
Variable Speed Belt MTD-954-0280A
...
26
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
27
BRACKET-BR MTD-17963
...
28
Flanged Brg. 5/8" I.D. MTD-741-0591
...
29
Hex Nut 3/8-24 Thd. MTD-712-0241
...
30
IDLER BRACKET MTD-17834
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
33
KIT-TRANSMISSION S MTD-753-0890
...
34
Ext. Spring .94" O.D. x 7.58" MTD-932-0556
...
35
Inter. Cotter Pin MTD-714-0149B
...
36
Spacer.63" I.D. MTD-750-0802
...
37
Cotter Pin 1/8" Dia. x 1.25" Lg. MTD-714-0470
...
39
FL-Wash. .51" I.D. x .75" MTD-736-0108
...
40
Fl-Wash. .406" I.D. x 1.25" MTD-736-0247
...
43
Hex Wash. Hd. S-Tap Scr. 1/4-20 X .501 Lg. MTD-710-0599
...
44
PEDAL ASSEMBLY MTD-17837
...
45
Shift Knob MTD-720-0218
...
46
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
47
BRACKET AS MTD-17827
...
48
FOOT PAD MTD-735-0239A
...
51
SHIFT LEVER ROD MTD-747-0774
...
53
EXTENSION SPRING MTD-732-0656
...
55
Hex Bolt 5/16-18 x 3.25" MTD-710-3056
...
59
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
60
TRANSAXLE COMPLETE MTD-618-0034
...
61
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
63
FLAT WASHER MTD-736-0275
...
64
Hex Wash. TT-Tap Scr. 1/4-20 x 1 .75" MTD-710-1026
...
xx
EXTENSION SPRING MTD-732-0568
...
66
EXT. SPRING .5" O.D. x 4.35" MTD-732-0428A
...
67
Variable Speed Torque Brkt. Ass'y. MTD-16554A-0637
...
68
FLANGE BEARING MTD-741-0419
...
69
Cotter Pin 3/32" Dia. MTD-714-0507
...
70
Shoulder Spacer .27" Lg. MTD-748-0234
...
71
CONTROL LINK MTD-747-0530A
...
72
THRUST BEARING MTD-941-0405
...
73
THROTTLE KNOB MTD-720-0166
...
74
Fl-ldler Pulley 3.25" x 1.0" MTD-756-0643A
...
75
PULLEY MTD-756-0950
...
76
BELL WASHER MTD-936-0427
...
77
HEX JAM NUT 9/16-18 GR5 MTD-712-3035
...
78
Hex Bolt 3/8-24 x 1.75" Lg. MTD-710-0539
...
79
Variable Speed Belt MTD-954-0370
...
80
Snap Ring .56" Dia. MTD-916-0114
...
81
Fl-Wash. .56" I.D. x 1.0" O.D. MTD-736-0355
...
82
Variable Speed Pulley Ass'y. 5" O.D. MTD-917-0800A
...
83
Gasket-Exhaust MTD-BS-692236
...
84
BRACKET ASSEMBLY-VAR SP MTD-16354B
...
85
Comp. Spring Clip MTD-732-0525
...
86
BRACKET-AXLE SUPPORT MTD-17668A-0637
...
xx
BRACKET-AXLE SUPPORT (Not Shown) MTD-17669A-0637
...
89
BRACKET MTD-783-1016B
...
90
Teflon Washer .565" I.D. MTD-736-0414
...
93
SWITCH MTD-925-04039
...
94
Shld. Bolt 3/8-24 x 3.12" Lg. MTD-938-0755
...
97
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
98
SHAFT-VAR/SP MTD-738-0837
...
99
Bell-Wash. .39" I.D. x 1.12" MTD-736-0331
...
100
Fl-Wash. MTD-936-0256
...
101
Cotter Pin 3132" Dia. x 1.0" MTD-714-0111
...
102
Hex Wash. Hd. Scr. 5/16-18 x.62" Lg. MTD-710-0650
...
106
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
107
BRACKET-PEDAL MTD-17860-0637
...
108
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
109
Ferrule MTD-911-0198
...
111
Hex Wash. Tap Scr. 5/16-18 x 1.25" Lg. MTD-710-0817
...
112
SPRING WASHER BELL MTD-736-0270
...
113
LINK ASSEMBLY-SHIFT MTD-17832
...
114
WIRE MTD-725-0980
...
115
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
116
Needle Brgs. MTD-741-0404
...
117
Switch Plate MTD-17962
...
118
HEX SCREW 1/4-20X3.25 MTD-710-1136
...
119
Ferrule 3/8-24 Thd. MTD-911-0832
...
121
SHOULDER SCREW MTD-938-0636
...
123
Shoulder Bolt MTD-938-0155
...
124
ROD ASSEMBLY-B MTD-17794
...
125
HEX CAP SCREW 1/4-20 x .375 GR5 MTD-710-0294
...
129
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
130
Speed Nut #10-24 Thd. MTD-712-0147
...
131
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
133
External L-Wash. 5/16" I.D. MTD-736-0607
...
134
SPEED NUT MTD-726-0235
...
135
Hex Wash. AB-Tap Scr. 5/16" x.75" Lg. MTD-710-0726
...
138
SHIFT LEVER ASSEMBLY MTD-747-0768
...
139
BRACKET LE MTD-17767
...
140
LEVER ASSEMBLY MTD-17768
...
141
BELT GUARD ROD MTD-711-0747
...
142
BRAKE ROD LOCKOUT MTD-747-0770
...
143
Transaxle Mounting Bracket MTD-17840-0637
...
144
Cotter Pin 1/8" x 3/4" Lg. MTD-714-0474
...
145
SPEED SELECTOR ROD MTD-747-0771
...
146
Extension Spring 3.97" Lg. MTD-932-0429A
...
147
Spacer .326" I.D. x .47" MTD-750-0470
...
148
Wave Washer MTD-936-0167
...
149
ACTUATING ARM (LH) MTD-717-0772B
...
150
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
151
Wave Wash. .38" I.D. x .75" MTD-736-0413
