MTD 131734G (1991) Lawn Tractor

Model: 131734G (1991)

Back To Assemblies

Save Part Not Listed?
product name

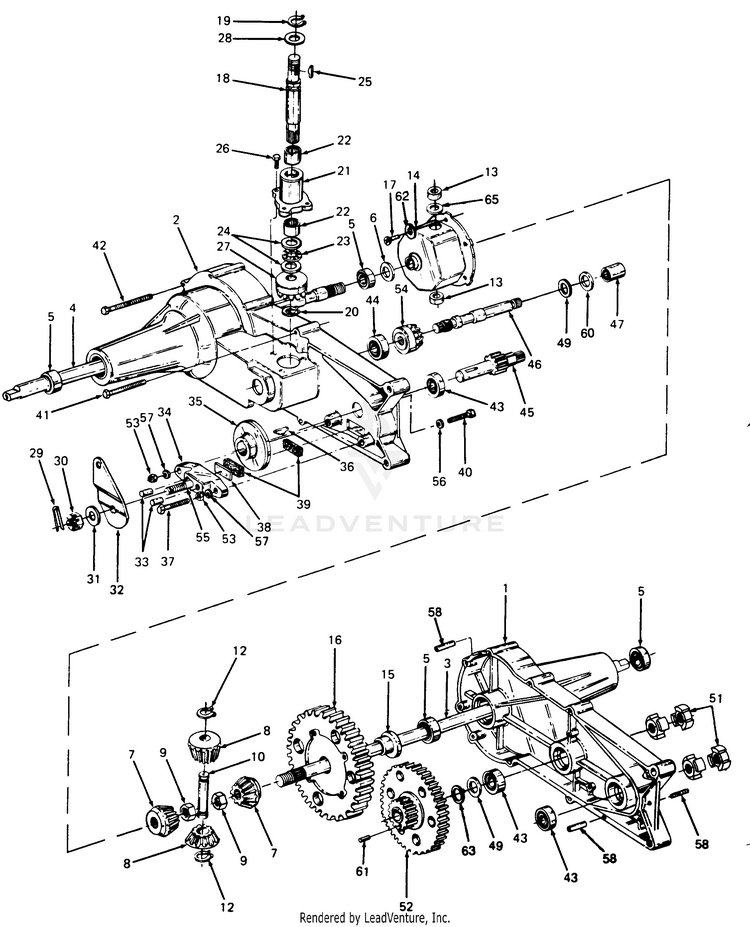

Transaxle

...
...
1
HOUSING ASSEMBLY (LH) MTD-AF-44077
...
2
HOUSING ASSEMBLY R/H MTD-HG-62586P
...
3
AXLE, L.H. MTD-AF-44393
...
4
AXLE R.H. MTD-AF-44392
...
5
BEARING BALL MTD-HG-44121P
...
6
Washer, Flat, .76" x 1-1/8" x .306" Thk. Hdn. MTD-HG-44008
...
7
Miter Gear-H.D. MTD-917-1019
...
8
MITER GEAR MTD-717-1020
...
9
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
10
KIT-DIFF CROSS SHA MTD-753-0527
...
xx
Washer, Flat .505" I.D. x 1.0" MTD-736-0369
...
12
KIT-DIFF CROSS SHA MTD-753-0527
...
13
KIT-DIFF CROSS SHA MTD-753-0527
...
14
DIFFERENTIAL KIT MTD-753-0546
...
15
Bearing, Flange, .75" I.D. x .587" MTD-941-0376
...
16
DIFFERENTIAL GEAR MTD-717-0759
...
17
Torx Hd. AB-Tap Scr. 1/4 X .62" Lg. MTD-710-1017
...
18
HOUSING-INPUT MTD-HG-62636
...
19
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
20
Ring, Retaining, Ext. 7/16" Dia. MTD-716-0108
...
21
Bearing, Input Housing MTD-AF-44081
...
22
NEEDLE BEARING MTD-941-0335
...
23
THRUST BEARING MTD-HG-44139P
...
24
THRUST WASHER MTD-HG-44109
...
25
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
26
SCREW, HEX PATCH LOCK, 1/4-20 0 x 3/4 LG. 3 MTD-AF-44122
...
27
Gear, Input Pinion, 17 Tooth MTD-AF-44078
...
28
FLAT WASHER MTD-936-0336
...
xx
FLAT WASHER MTD-936-0349
...
xx
Washer, Flat, .62" I.D. x 1.0" O.D. x 040" Thk. MTD-736-0337
...
xx
Washer, Flat, 5/8 x 1.0 x .05 MTD-HG-44371
...
29
Pin, Cotter MTD-714-0507
...
30
NUT MTD-912-0273
...
31
Washer, Flat, .343" x .88" x .062" Thk. MTD-736-0371
...
32
ARM, BRAKE ACTUATOR MTD-AF-44094
...
33
Pin, Actuating, 5/16 Dia. MTD-741-0343
...
34
YOKE MTD-717-0679
...
35
BRAKE DISC MTD-717-0677
...
36
KEY 3/16 x 5/8 H MTD-914-0161
...
37
SCREW, HEX PATCH LOCK, 1/4-20 x 1 5N LG MTD-AF-44276
...
38
PUCK PLATE MTD-917-0682
...
39
BRAKE PUCK MTD-917-0678
...
40
SCREW, HEX CAP, 1/4-20 x 1.5 LG MTD-AF-44277
...
41
SCREW HEX SELF-TAP, 1/4-20 x 2.0" LG. MTD-AF-44123
...
42
SCREW, HEX SELF-TAP, 1/4-20 x 2.75 LG. MTD-AF-44124
...
43
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
44
Bearing, Ball MTD-941-0361
...
45
SHAFT-PINION MTD-HG-44083P
...
46
DRIVE SHAFT MTD-HG-44080
...
47
NEEDLE BEARING MTD-941-0478
...
49
Washer, Flat, 5/8" x 1.12" x 060" Thk. MTD-AF-44110
...
xx
Washer, Flat, 5/8 x 1.0 x .05 MTD-HG-44371
...
51
Coupling MTD-HG-44084P
...
52
GEAR ASSEMBLY- MTD-HG-62760P
...
53
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
54
GEAR, DRIVE PINION 17 TOOTH 1 MTD-AF-44079
...
55
BOLT MTD-717-0796
...
56
Washer, Flat, .265" x 938" x 12" Thk. MTD-736-0176
...
57
L-Wash. 1/4" I.D. MTD-936-0329
...
58
PIN ROLL 3/16 DIA. MTD-AF-44269
...
xx
Grease, Transmission 16 oz. MTD-737-3047
...
60
BEARING-BRONZE THRUST MTD-HG-44343
...
61
DOWEL PIN 3/32" x 1/4 MTD-AF-44346
...
62
BOLT-TORX HD MTD-HG-44126
...
63
SEAL-GREASE MTD-HG-44394
...
65
Washer, Flat, .62" I.D. x 1 on O.D. x 020" Thk. MTD-736-0369
...
xx
Washer, Flat, .62" I.D. x 1 on O.D. x 030" Thk. MTD-AF-44421
