MTD 131684G (1991) Lawn Tractor

Model: 131684G (1991)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
Engine MTD-NA
...
2
Transaxle Mounting Bracket MTD-17840-0637
...
3
Switch Plate MTD-17962
...
4
Hex Nut 5/16-24 Thd. MTD-912-3057
...
5
Lock Wash. 5/16" I.D. MTD-936-0119
...
6
MUFFLER MTD-751-0469A
...
7
MUFFLER HEAT SHIELD MTD-16875A
...
8
HEAT SHIELD-FR MTD-16876A
...
9
MUFFLER SUB ASSEMBLY MTD-751-0472
...
10
Hex Wash Hd. AB-Tap Scr. 3/8-16 Thd. MTD-710-1035
...
11
LOWER FRAME MTD-17620B
...
12
Speed Nut #10-24 Thd. MTD-712-0147
...
13
HEX NUT 1/4-20 MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Screw, 5/16-18 x .625 MTD-710-0604A
...
16
BRACKET-BELT GUARD MTD-17358D-0637
...
17
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
TORQUE BRACKET MTD-17418
...
20
Sq. Key 1/4" x 1.5" MTD-714-0118
...
xx
Engine Pulley MTD-756-0565
...
22
Shld. Spacer .445" I.D. MTD-938-0785
...
23
L-Wash. 7/16" I.D. MTD-736-0171
...
24
SCREW 7/16-20 x 5.00 GR5 MTD-710-1067
...
xx
Variable Speed Belt MTD-954-0280A
...
26
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
27
BRACKET-BR MTD-17963
...
28
Flanged Brg. 5/8" I.D. MTD-741-0591
...
29
Hex Nut 3/8-24 Thd. MTD-712-0241
...
30
Idler Bracket MTD-17643-0637
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Nut 3/8-24 Thd. MTD-712-0241
...
33
BRACKET-TRANSMISSION MTD-17629A-0637
...
34
Ext. Spring .94" O.D. x 7.58" MTD-932-0556
...
35
Inter. Cotter Pin MTD-714-0149B
...
36
Spacer.63" I.D. MTD-750-0802
...
38
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
39
Hex Nut 1/4-28 Thd. MTD-712-0138
...
xx
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
41
BELT GUARD ROD MTD-711-0747
...
42
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
43
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
44
CLUTCH BRAKE PEDAL ASS'Y. MTD-17715A
...
45
Fl-Wash. MTD-936-0117
...
46
Truss Mach. Scr. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
47
BRAKE ROD ASS'Y. MTD-17686
...
48
FOOT PAD MTD-735-0239A
...
49
CLUTCH-ELE MTD-717-0983
...
50
OIL DRAIN HOSE MTD-727-0434
...
51
SHIFT LEVE MTD-17705
...
52
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
53
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
54
Ext. Spring .59n O.D. x 7 08" MTD-932-0413
...
55
Hex Bolt 5/16-18 x 2.75" MTD-710-0176
...
56
Wheel Ass'y. Comp. (If brand of tire is important, order by part number and description) MTD-734-1675
...
xx
Tire Only (If brand of tire is important, order by part number and description) MTD-734-1596
...
57
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
58
TUBELESS VALVE (Service Only) MTD-934-0255
...
59
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
61
Brake Return Spring Anchor MTD-932-0722A
...
63
FLAT WASHER MTD-736-0275
...
64
HEX SCREW 1/4-28 x 1.25 GR5 MTD-710-0428
...
65
EXTENSION SPRING MTD-732-0568
...
66
EXTENSION SPRING MTD-932-0384
...
67
Variable Speed Torque Brkt. Ass'y. MTD-16554A-0637
...
68
FLANGE BEARING MTD-741-0419
...
69
Cotter Pin 3/32" Dia. MTD-714-0111
...
70
Shoulder Spacer .27" Lg. MTD-748-0234
...
71
CONTROL LINK MTD-747-0530A
...
72
THRUST BEARING MTD-941-0405
...
73
Knob MTD-920-0232
...
74
Fl-ldler Pulley 3.25" x 1.0" MTD-756-0643A
...
75
PULLEY - (KEYED) MTD-756-0557
...
xx
"V" Pulley MTD-656-0004
...
76
L-Wash. 1/2" I.D. (used with 717-0542 transaxle) MTD-736-0921
...
xx
BELL WASHER (used with 618-0002 transaxle) MTD-936-0427
...
77
NUT (used with 717-0542 transaxle) MTD-712-3029
...
xx
HEX JAM NUT 9/16-18 GR5 (used with 618-0002 transaxle) MTD-712-3035
...
78
Hex Bolt 3/8-24 x 1.75" Lg. MTD-710-0539
...
79
Variable Speed Belt MTD-954-0370
...
80
Snap Ring .56" Dia. MTD-916-0114
...
81
Fl-Wash. MTD-736-0355
...
82
Variable Speed Pulley Ass'y. 5" O.D. MTD-917-0800A
...
83
Gasket-Exhaust MTD-BS-691613
...
84
BRACKET ASSEMBLY-VAR SP MTD-16354B
...
85
Comp. Spring Clip MTD-732-0525
...
86
BRACKET-AXLE SUPPORT MTD-17668A-0637
...
xx
BRACKET-AXLE SUPPORT (Not Shown) MTD-17669A-0637
...
87
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
88
Solenoid MTD-925-1426A
...
89
Shift Lever Bracket MTD-17630A-0637
...
90
Teflon Washer .565" I.D. MTD-736-0414
...
92
HEX SCREW 1/4-20X3.25 MTD-710-1136
...
93
SWITCH MTD-925-04039
...
94
Shld. Bolt 3/8-24 x 3.12" Lg. MTD-938-0755
...
97
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
98
Shaft 56" Dia. x 3.875" Lg. MTD-938-0569
...
99
Bell-Wash. .39" I.D. x 1.12" MTD-736-0331
...
100
Fl-Wash. MTD-936-0256
...
101
Cotter Pin 1/8" Dia. x 1.25" MTD-714-0470
...
102
Screw, 5/16-18 x .625 MTD-710-0604A
...
103
HUB CAP W/ MTD-734-1614
...
107
BRACKET-PEDAL MTD-17860-0637
...
xx
Cotter Pin 1/8" Dia. x 1.25" MTD-714-0470
...
109
Ferrule MTD-911-0198
...
111
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
112
SPRING WASHER BELL MTD-736-0270
...
113
SHIFT LINK ASSEMBLY MTD-17707
...
115
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
116
Needle Brgs. MTD-741-0404
...
117
SPRING CLIP (Used w/Ref. No. 103) MTD-727-0425
...
118
SHIELD-HEA MTD-16877
...
119
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
120
Fl-Idler w/Flanges 2.75" O.D. MTD-956-0217
...
121
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
...
122
Hex Nut 3/8-16 Thd. MTD-712-0798
...
127
Spacer 5/16" I.D. MTD-750-0748
...
128
Hex Wash. TT-Tap Scr. 5/16-18 x.75" Lg. MTD-710-0650
...
129
Hex Wash. AB-Tap Scr. 5/16-18 x.75" Lg. MTD-710-0726
...
130
INLET TUBE ASSEMBLY MTD-751-0470
...
131
Formed Tube Ass'y. MTD-751-0471
...
132
CLIP-CABLE MTD-726-3009
...
133
Hex Bolt w/Washer MTD-710-1037

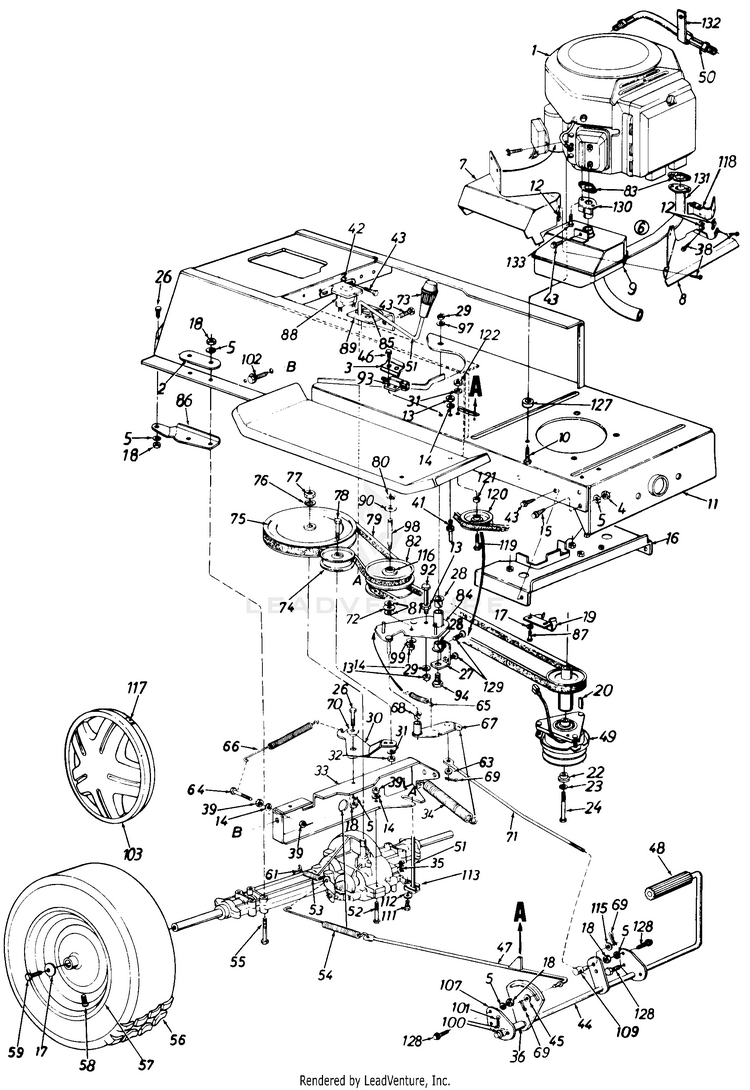

Schematic Image Zoomed
