product name

MTD 130734G (1990) Lawn Tractor

Model: 130734G (1990)

Back To Assemblies

Save Part Not Listed?
product name

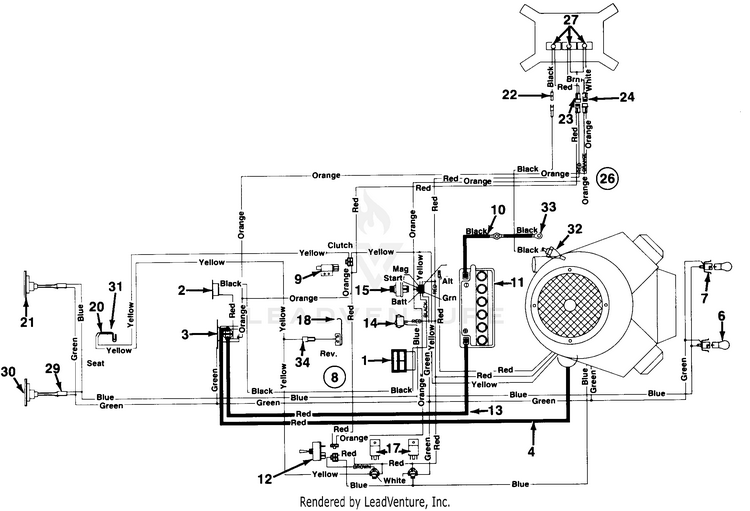

Electrical

...
...
1
Ammeter MTD-925-0925
...
2
CIRCUIT BREAKER 20 AMP MTD-725-1382
...
3
Solenoid MTD-925-1426A
...
4
WIRE ASSEMBLY (RED) (#6X32.5) MTD-629-0740
...
6
Miniature Lamp 12V Socket Type MTD-925-0963
...
7
HEADLAMP SOCKET MTD-925-1058A
...
8
WIRE HARNESS-MONITOR MTD-725-1521
...
9
SWITCH MTD-925-04039
...
10
6 GA. BLACK WIRE MTD-725-0977
...
11
BATTERY 275CCA MTD-725-1430
...
12
Safety Switch (PTO) MTD-925-0893
...
13
Wire 27" Lg. MTD-725-1080
...
14
Light Switch MTD-925-0634
...
15
Ignition Switch MTD-925-1396A
...
17
RELAY MTD-925-1375
...
18
SAFETY SWITCH KIT MTD-725-0759
...
20
Outer Seat Spring Switch MTD-925-1303
...
21
Taillight MTD-725-3018
...
22
CONNECTOR MTD-729-0139
...
23
CONNECTOR MTD-729-0166
...
24
CONN AMP:1- 4803180 MTD-729-0132
...
26
WIRE HARNESS MTD-725-1364
...
27
Monitor Bulb MTD-925-1365
...
29
TAIL LIGHT HARNESS MTD-725-1380
...
30
BULB MTD-725-3020
...
31
Safety Switch (Seat) MTD-725-1439
...
32
OIL PRESSURE SWITCH MTD-751-0537
...
33
WIRE MTD-725-0980
...
34
Extension Wire MTD-725-1548
Schematic Image Zoomed
