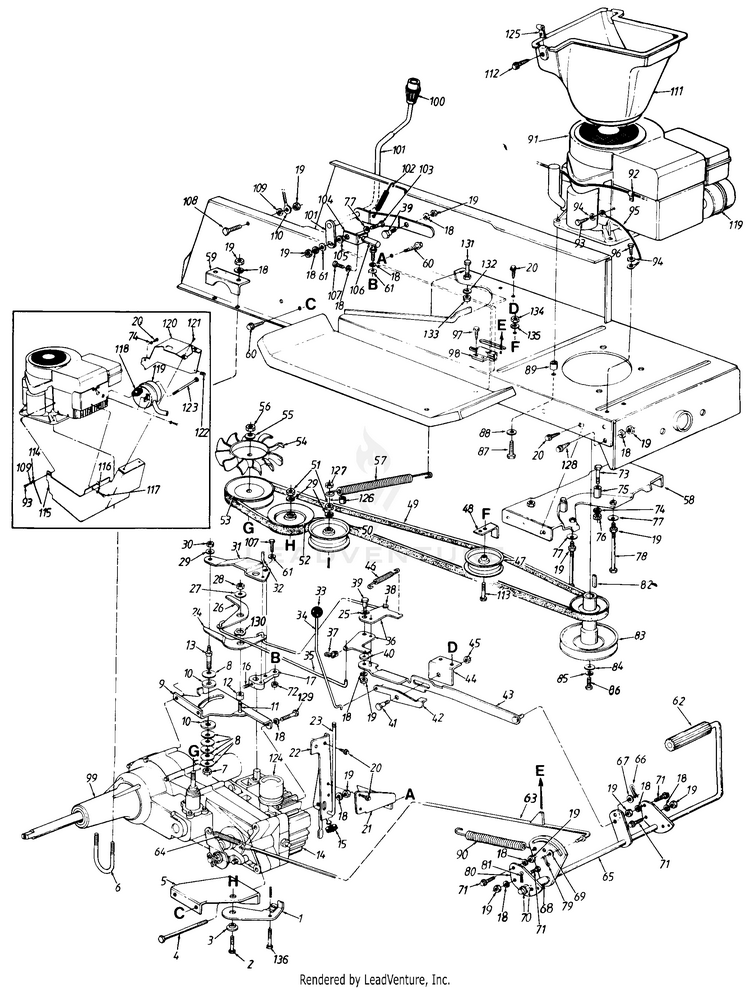

MTD 130704F (1990) Lawn Tractor

Model: 130704F (1990)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
Idler Bracket MTD-17746
...
2
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
3
Shld. Spacer .625" I.D. MTD-938-0347
...
4
Hex Bolt 5/16-18 x 4.5" Lg. (Grade 5) MTD-710-3195
...
5
PLATE-IDLE MTD-17747
...
6
U-BOLT 5/16-18X1.75 MTD-710-3193
...
7
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
8
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
9
Mounting Bracket MTD-17743
...
10
Friction Washer MTD-961-0196
...
11
Rib Neck Bolt 5/16-24 x .84" Lg. MTD-710-1012
...
12
SPACER MTD-750-0808
...
13
AXLE MTD-738-0827
...
14
HROSTATIC PUMP MTD-717-0940
...
15
RUBBER WASHER MTD-735-0126A
...
16
HEX SCREW SOCKET SET MTD-710-0257
...
17
LEVER-PINTLE SHAFT MTD-748-0328A
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
21
PLATE-REIN MTD-17769
...
22
BRACKET-TR MTD-17744
...
23
RELEASE VALVE ROD MTD-747-0764
...
24
Arm-revers MTD-17737
...
25
Spring Washer .625" I.D. MTD-736-0174
...
26
Arm-forwar MTD-17745
...
27
Fl-Wash. .344" I.D. x 1.0" MTD-736-3078
...
28
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
29
L-Wash. 3/8" I.D. MTD-736-0169
...
30
Hex Nut 3/8-24 Thd. MTD-712-0241
...
31
PLATE-PINT MTD-17765
...
32
Roll Pin 114" Dia. x .75" Lg. MTD-715-0156
...
33
THROTTLE KNOB MTD-720-0166
...
34
LOCK ROD-UP MTD-747-0601
...
35
Connection Rod MTD-747-0763
...
36
BRACKET-BA MTD-17757
...
37
CLIP-CLEVIS (RH) MTD-726-0281
...
38
CLIP-CLEVIS (LH) MTD-726-0280
...
39
Shld. Bolt .437" Dia. x .268" MTD-738-0296
...
40
FLAT WASHER 344X1.2 MTD-736-3074
...
41
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
42
Lock-Up Bracket MTD-17738
...
43
BRACKET AS MTD-17756
...
44
BRACKET MTD-17755
...
45
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
46
EXTENSION SPRING MTD-732-0387
...
47
Idler Pulley MTD-756-04209
...
48
BEL GUARD MTD-13819
...
49
V-BELT 1/2 x 80.92 MTD-954-0372
...
50
IDLER PULLEY MTD-756-0515
...
51
Hex Nut 3/8-16 Thd. MTD-712-0798
...
52
IDLER PULLEY 4.0 O MTD-756-0577
...
53
PULLEY MTD-756-0571
...
54
HYDRO FAN MTD-731-1145
...
55
BELL WASHER MTD-936-0427
...
56
HEX JAM NUT 9/16-18 GR5 MTD-712-3035
...
57
EXTENSION SPRING MTD-732-0641
...
58
Belt Guard Brkt. Ass'y. MTD-17821
...
59
Bracket MTD-17818
...
60
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603
...
61
Ext. L-Wash. 5/16" I.D. MTD-736-0607
...
62
FOOT PAD MTD-735-0239A
...
63
BRAKE ROD ASS'Y. MTD-17686
...
64
EXTENSION SPRING MTD-732-0649
...
65
CLUTCH BRAKE PEDAL ASS'Y. MTD-17715A
...
66
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
67
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
68
Spacer.63" I.D. MTD-750-0802
...
69
Fl-Wash. MTD-936-0117
...
70
Fl-Wash. MTD-936-0256
...
71
Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg. MTD-710-0650
...
72
Hex Nut 5/16-24 Thd. MTD-912-3057
...
73
HEX SCREW 1/4-20X1 MTD-910-0886
...
74
L-Wash. 1/4" I.D. MTD-936-0329
...
75
Spacer MTD-750-0810
...
76
HEX NUT 1/4-20 MTD-912-0287
...
77
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
78
Hex Bolt 5/16-18 x 4.0" Lg. MTD-710-0190
...
79
Cotter 3/32" Dia. x .75" Lg. MTD-714-0507
...
80
LIFT BRACKET PEDAL MTD-15835A
...
81
Cotter Pin 3/32" Dia. x 1.0" Lg. MTD-714-0111
...
82
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
83
ENGINE PULLEY MTD-956-0562
...
84
Fl-Wash. 7/16" I.D. x 1.25" MTD-736-0322
...
85
L-Wash. 7/16" I.D. (H.D.) MTD-736-0171
...
86
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
87
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.5" Lg. MTD-710-1007
...
88
Fl-Wash. .406" I.D. x 1.25" MTD-736-0247
...
89
SPACER MTD-750-0777
...
90
EXTENSION SPRING 6.11" LG. MTD-732-0643
...
91
Engine MTD-NA
...
92
SPEED NUT MTD-726-0235
...
93
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
94
External L-Wash. 5/16" I.D. MTD-736-0607
...
95
6 GA. BLACK WIRE MTD-725-0977
...
96
Hex Wash. AB-Tap Scr. 5/16 x .75" MTD-710-0726
...
97
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
98
SWITCH MTD-925-04039
...
99
TRANSAXLE MTD-717-0950
...
100
Shift Knob MTD-720-0218
...
101
LEVER ASSEMBLY MTD-17734
...
102
TENSION SPRING MTD-732-0433
...
103
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0874
...
104
BRACKET-CO MTD-17742
...
105
NUT-SHLD MTD-711-0404
...
106
Ball Joint 5/16-24 Thd. MTD-923-3011
...
107
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
108
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
109
External L-Wash. 5/16" I.D. MTD-736-0607
...
110
6 GA. BLACK WIRE MTD-725-0977
...
111
DUCT-AIR MTD-731-1072
...
112
Truss Mach. Scr. #10-24 x 5" Lg. MTD-710-0473
...
113
Hex Bolt 3/8-24 x 1.75" Lg. MTD-710-0539
...
114
WIRE MTD-725-0980
...
115
SHIELD-MUF MTD-16936
...
116
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
117
HEX CAP SCREW 1/4-20 x .375 GR5 MTD-710-0294
...
118
Gasket-Exhaust MTD-BS-692236
...
119
MUFFLER MTD-951-0465A
...
120
HEAT SHEID ASSEMBLY MTD-683-0042A
...
121
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
122
Speed Nut #10-24 Thd. MTD-712-0147
...
123
SHOULDER SCREW MTD-938-0636
...
124
RESERVOIR MTD-917-3049
...
125
Speed Nut #10-24 Thd. MTD-712-0147
...
126
Spacer .375" I.D. x .503" MTD-750-0504
...
127
JAM LOCK NUT MTD-712-0266A
...
128
Screw, 5/16-18 x .625 MTD-710-0604A
...
129
Hex Bolt 5/16-18 x 43/4" Lg. MTD-710-0974
...
130
Spring Washer .625" I.D. MTD-736-0174
...
131
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
132
L-Wash. 1/4" I.D. MTD-936-0329
...
133
HEX NUT 1/4-20 MTD-912-0287
...
134
Hex L-Nut 3/8-24 Thd. MTD-712-0214
...
135
Fl-Wash. .385" I.D. x .87" MTD-736-0300
...
136
HEX SCREW MTD-710-0756
