MTD 130684G (1990) Lawn Tractor

Model: 130684G (1990)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
ROD-CONNEC MTD-09735A
...
2
PIVOT LINK (LH) MTD-983-0029A-0637
...
3
PIVOT LINK ASS'Y. (RH) MTD-17641
...
4
DECK HANGER LINK ASS'Y MTD-17710
...
5
HANGER-DECK LINK MTD-14800A
...
6
DECK HANGER LINK ASS'Y MTD-14804A
...
7
SPACER MTD-948-0331
...
8
Fl-Wash. .344" I.D. x 1.125" MTD-736-0231
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
10
HEX NUT 5/16-18 MTD-712-3010
...
xx
Fl-Wash. .531" I.D. x .94" O.D. MTD-736-0192
...
12
Cotter Pin 1/8" Dia. MTD-714-0115
...
13
Fl-Wash. MTD-936-0256
...
14
HEIGHT ADJUSTMENT LEVER (Incl. Ref. 15) MTD-732-0412A
...
15
KNOB-HGT ADJ-BLACK MTD-08540
...
16
Screw, 5/16-18 x .625 MTD-710-0604A
...
17
Flange Brg. .63" I.D. MTD-748-0176
...
18
Hex Wash. TT-Tap Scr. 5/16-18 x .875" Lg. MTD-710-0650
...
19
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
20
BRACKET-IN MTD-17728
...
21
UPPER FRAME (RH) MTD-783-0042D
...
23
FLAT WASHER .38X.88 MTD-736-0267
...
24
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
25
Clamp MTD-726-0272
...
26
ROD-RUNNING BOARD MTD-738-0526
...
27
Truss Mach. Scr. #10 x .5" Lg. MTD-710-0351
...
28
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
30
Adj. Deck Lift Link MTD-17712-0637
...
31
Hex Nut 1/2-20 Grade 5 MTD-912-3066
...
32
LIFT ADJUSTMENT LINKER MTD-911-0841
...
33
LIFT SHAFT ASS'Y. MTD-17637
...
34
Safety Switch (Deck) MTD-725-0803B
...
35
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
36
EXTENSION SPRING MTD-932-0637
...
37
STABILIZER BRACKET BLACK MTD-17636D-0637
...
38
SHAFT .50 DIA x 10.50 LG MTD-738-0670A
...
39
EXTENSION SPRING MTD-732-0638
...
40
LIFT HANDLE GRIP (Lift Handle) MTD-720-0233
...
41
DECK LIFT HANDLE ASS'Y MTD-17675
...
42
ROD .380 DIA x 9.34"L MTD-738-0669
...
44
SHAFT ASSY (POWDER BLACK) MTD-97624-0637
...
45
Ext. Spring .94" O.D. x 7.58" MTD-932-0556
...
46
UPPER FRAME (LH) MTD-783-0043B
...
47
Flange Bearing .632 ID MTD-741-0487C
...
48
Spring Retainer Brkt. MTD-17128A-0637
...
49
GAS TANK HOUSING MTD-16238
...
50
SIDE PANEL MTD-17082
...
51
PANEL-SIDE (LH) MTD-17083
...
52
Gas Tank Cap MTD-951-0226A
...
53
FUEL TANK MTD-751-0530A
...
54
Fuel Line Hose MTD-751-10349
...
55
Hose Clamp MTD-726-0205
...
56
Hex Wash. AB-Tap 5/16 x .75" Lg. MTD-710-0726
...
57
RUBBER GROMMET-.62 ID MTD-735-0112
...
58
SUPPORT BRACKET (RH) (Use w/Optional Grass Catcher) MTD-17078A
...
xx
Mtg. Brkt. L.H. (Use w/Optional Grass Catcher) MTD-17077A
...
59
Trim Strip MTD-731-0511-5
...
60
FOAM STRIP MTD-722-0157
...
61
Speed Nut MTD-726-0211
...
62
BAR-HITCH MTD-17166
...
63
Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5) MTD-710-0376
...
64
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
65
Hex Wash. Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
66
HITCH PLATE MTD-17226A
...
67
Hex Wash. Hd. Tap Scr. 1/4-20 x.38" Lg. MTD-710-0653

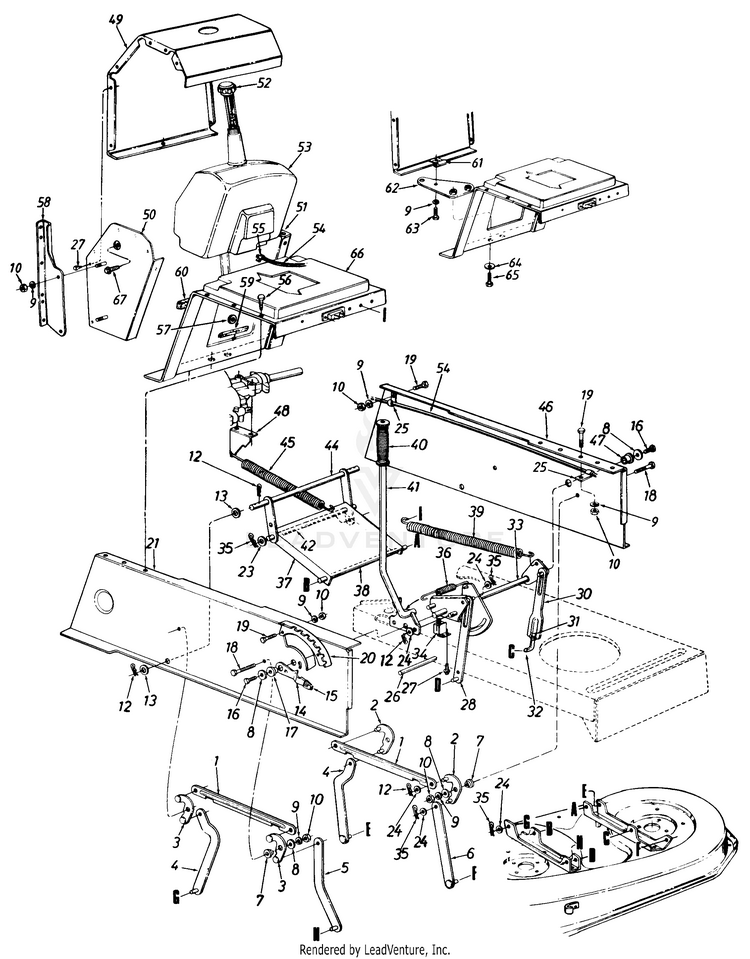

Schematic Image Zoomed
