MTD 130659F (1990) Lawn Tractor

Model: 130659F (1990)

Back To Assemblies

Save Part Not Listed?
product name

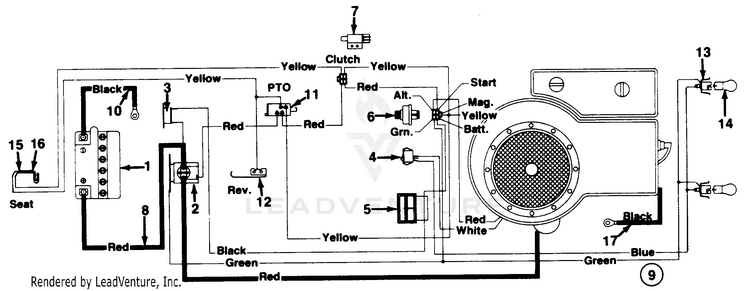

Electrical

...
...
1
BATTERY MTD-753-0607
...
2
Solenoid MTD-925-1426A
...
3
CIRCUIT BREAKER MTD-753-0685
...
4
Light Switch MTD-925-0634
...
5
Ammeter MTD-925-0925
...
6
Ignition Switch MTD-925-0267B
...
7
SWITCH MTD-925-04039
...
8
WIRE W/BOOT MTD-725-1351
...
9
WIRE HARNESS MTD-725-1494
...
10
6 GA. BLACK WIRE MTD-725-0977
...
11
Safety Switch (Deck) MTD-725-0803B
...
12
SAFETY SWITCH KIT MTD-725-0759
...
13
HEADLAMP SOCKET MTD-925-1058A
...
14
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch MTD-925-1303
...
16
Safety Switch (Seat) MTD-725-1439
...
17
WIRE MTD-725-0980
Schematic Image Zoomed
