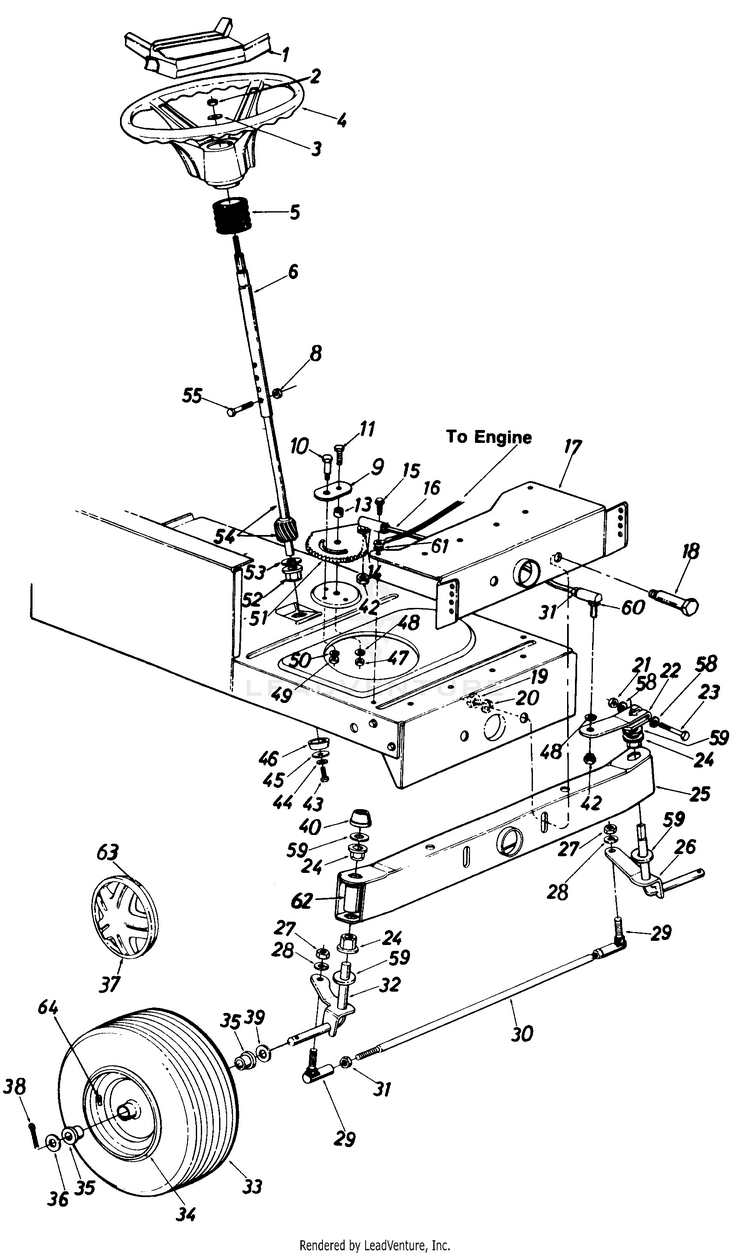

MTD 130654F (1990) Lawn Tractor

Model: 130654F (1990)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
STEERING WHEEL INSERT MTD-931-0955
...
xx
Steering Wheel Cap model 130659F Only MTD-931-0220
...
2
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
3
Belleville Wash. .345" I.D. MTD-736-0242
...
4
STEERING WHEEL MTD-731-0806A
...
xx
Steering Wheel model 130659F Only model 130659F Only MTD-731-0805A
...
5
STEERING BELLOW 9" MTD-931-0954
...
6
STEERING COLUMN ASS Y. MTD-16512
...
8
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
9
STABILIZER PLATE MTD-783P08577A
...
10
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
11
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
13
Spacer.380" I.D. x .625" O.D. x .227 MTD-950-0535
...
14
L-Wash. 3/8" I.D. MTD-736-0169
...
15
Hex Wash. Hd. Self-Tap Scr. MTD-710-0726
...
16
STEERING DRAG LINK MTD-711-0788
...
17
PIVOT BAR BRACKET MTD-783-0041C
...
18
Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd. MTD-738-0527
...
19
Hex Nut 3/8-16 Thd. MTD-712-0798
...
20
L-Wash. 3/8" I.D. MTD-736-0169
...
21
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
22
Steering Arm Front Axle MTD-983-0055-0637
...
23
Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5) MTD-710-0772
...
24
FLANGE BEARING MTD-941-0225
...
25
Pivot Bar Ass'y. MTD-753-0642-0637
...
26
Front Axle Ass"y.-R.H. (13 x 5) MTD-17585
...
xx
Front Axle Ass'y. L.H. (model 130659F Only) MTD-17585
...
27
Hex Nut 3/8-24 Thd. MTD-712-0241
...
28
L-Wash. 3/8" I.D. MTD-736-0169
...
29
Ball Joint, 3/8-24 MTD-923-3018
...
30
Tie Rod MTD-747-0753
...
31
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
32
AXLE ASSEMBLY (RH) MTD-97584A-0637
...
xx
AXLE ASSEMBLY (RH) (model 130659F Only) MTD-97584A-0637
...
33
Wheel Ass'y. Comp. MTD-634-0056B-0911
...
xx
Wheel Ass'y. Comp. (model 130659F Only) MTD-634-0056B-0911
...
xx
TIRE-15 x 6 MTD-734-0864
...
34
WHEEL RIM GREY MTD-753-0838-0662
...
35
Bronze Flange Bearing MTD-741-0353
...
xx
Flange Bearing .632 ID model 130659F Only MTD-741-0487C
...
36
Fl-Wash. .635 I.D. x 1.59" O.D. MTD-736-0285
...
37
ENGINE SHROUD - RED MTD-731-1612
...
38
Cotter Pin 1/8" Dia. x 1.25" MTD-714-0470
...
39
Fl-Wash. .640" I.D. x 1.24" O.D. MTD-736-0187
...
40
Push Cap 5/8" Dia. Rod MTD-726-0214
...
42
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
43
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343
...
46
SPACER MTD-950-0532
...
47
Hex Nut 3/8-24 Thd. MTD-712-0241
...
48
L-Wash. 3/8" I.D. MTD-736-0169
...
49
HEX NUT 5/16-18 MTD-712-3010
...
50
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
Steering Gear Segment MTD-717-0622C
...
52
FLANGE BEARING MTD-941-0225
...
53
Fl-Wash. (Hardened) MTD-736-0187
...
54
STEERING SHAFT-LOWER MTD-738-0522A
...
55
Hex Bolt 1/4-20 x 1.25" Lg. (Special) MTD-710-0106
...
58
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
59
Fl-Wash. (Hardened) MTD-736-0187
...
60
Ball Joint, 3/8-24 MTD-923-3018
...
61
Ext. L-Wash. 5/16" I.D. MTD-736-0607
...
62
Plastic Tube MTD-731-1134
...
63
SPRING CLIP (Used w/Ref. #37) MTD-727-0425
...
64
TUBELESS VALVE MTD-934-0255
