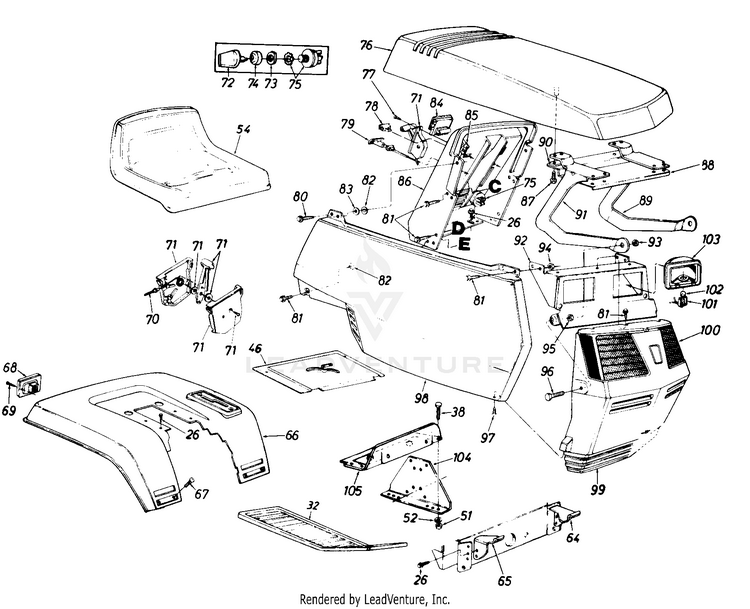

MTD 130654F (1990) Lawn Tractor

Model: 130654F (1990)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
32
FOOT PAD (LH) MTD-731-0911
...
xx
FOOT PAD (RH) MTD-731-0912
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
46
Shift Cover MTD-17286B-0637
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
SEAT MTD-957-0360A
...
64
Grille Mount Brkt. L.H. MTD-16713A
...
65
Grille Mount Brkt. R.H. MTD-16712A
...
66
FENDER MTD-17324
...
67
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
68
Taillight MTD-725-3018
...
69
SCREW #6-20 x .625 MTD-710-0936
...
70
Throttle Control Wire MTD-946-0500
...
71
Throttle Control Box As'y. MTD-831-0823A
...
72
Key MTD-925-0201
...
73
IGNITION SWITCH NUT MTD-925-1346
...
74
Ignition Switch Cap MTD-725-1347
...
75
Ignition Switch MTD-925-0267B
...
76
HOOD (RADIANT YELLOW) MTD-931-1433
...
77
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
78
Light Switch MTD-925-0634
...
79
Chute Control 38" LD. MTD-746-0614A
...
80
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
81
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
82
Push Nut Fastener MTD-726-0233
...
83
Fl-Wash. .27" I.D. x 948" MTD-736-0176
...
84
Ammeter MTD-925-0925
...
85
SPEED NUT 1/4-20 MTD-712-0185
...
86
DASH PANEL MTD-731-0956
...
87
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
88
REINFORCEM MTD-16808
...
89
HOOD HINGE MTD-17761
...
90
HOOD REINCEMENT SPACER MTD-17762
...
91
HOOD HINGE MTD-17760
...
92
BRACKET-LIGHT MTD-17223
...
93
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
94
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
95
Hex Jam Nut 5/16-18 Thd. MTD-712-3007
...
96
Hex Bolt 5/16-18 x 7/8" Lg. MTD-710-3038
...
97
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
98
SIDE COVER (RH) MTD-731-0938
...
xx
COVER-SIDE (LH) (Not Shown) MTD-731-0943
...
99
Grille MTD-731-0935
...
100
LENS (LH) MTD-931-0949
...
xx
Lens-R.H. MTD-931-0948
...
101
HEADLAMP SOCKET MTD-925-1058A
...
102
Miniature Lamp 12V Socket Type MTD-925-0963
...
103
HEADLIGHT HOUSING MTD-931-0705
...
104
DASH SUPPORT BRACKET MTD-17300C
...
105
BATTERY BRACKET MTD-17633
