MTD 130-803H103 Lawn Tractor

Model: 130-803H103

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
HOOD (Model 803 Only) MTD-15808D
...
xx
HOOD-W/21 (Model 808 Only) MTD-16788
...
2
Vinyl Molding Strip 31" Lg. MTD-731-0511-31
...
3
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
4
Fl-Wash. .20" I.D. x.41" O.D. MTD-736-0931
...
5
Brake Cable 11.75" Lg. MTD-727-0290A
...
6
Truss Scr. #10-24 x .5" MTD-710-0473
...
7
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
8
Fl-Wash. 1/4" I.D. MTD-736-0463
...
9
Truss Mach. AB-Tap Scr. #10-24 x .5" Lg. MTD-710-0779A
...
10
FOAM STRIP MTD-722-0157
...
12
DASH PANEL MTD-16550A
...
13
Ignition Switch MTD-925-0267B
...
14
Reflector (Optional) MTD-730-0116
...
15
LARGE FOOT PAD (Optional) MTD-731-1052
...
16
HEADLAMP SOCKET MTD-925-1058A
...
17
Miniature Lamp 12V Socket Type MTD-925-0963
...
18
HEADLIGHT HOUSING MTD-931-0705
...
19
HEADLAMP LENS (Optional) MTD-931-0706
...
20
LOCK NUT 1/4 x 28 (Model 803 Only) MTD-712-0380
...
21
HEX NUT 1/4-20 MTD-912-0287
...
22
L-Wash. 1/4" I.D. MTD-936-0329
...
23
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
24
Grille (Model 803 Only) MTD-15804
...
xx
GRILLE (Model 808 Only) MTD-15806B
...
xx
GRILLE (Model 803 Only) MTD-16457
...
xx
GRILLE (Model 808 Only) MTD-16456B
...
25
Hex AB-Tap Scr. 1/4 x .5" MTD-710-0599
...
26
BRACKET-MT MTD-17635
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
BRACKET-GR MTD-15825
...
30
N Lower Frame Ass'y. MTD-13820D
...
31
Solenoid MTD-925-1426A
...
32
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
33
RUNNING BOARD (RH) MTD-16922
...
xx
RUNNING BOARD (LH) (Not Shown) MTD-16921
...
34
Truss Scr. 5/16-18 x .75" MTD-710-0323
...
35
HEX NUT 5/16-18 MTD-712-3010
...
36
Bell-Wash..34" I.D. MTD-736-0242
...
37
BRACKET-FENDER (RH) MTD-15846
...
xx
Fender Brkt. L.H. (Not Shown) MTD-15847
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
HEX NUT 1/4-20 MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
ROD-RUNNING BOARD MTD-738-0435
...
42
Fuel Line 46" Lg. MTD-751-10349-54
...
43
Hose Clamp MTD-726-0205
...
44
90ø Elbow MTD-751-3054
...
45
BUSHING (Fuel Tank) MTD-935-0149
...
46
HITCH ROD MTD-738-0482
...
47
Internal Cotter Pin MTD-714-0147
...
48
HITCH PLATE MTD-13813B
...
49
Speed Nut MTD-726-0139
...
50
SUPPORT BRACKET (RH) MTD-15828C
...
51
Hex Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
52
TIE-STRAP (Model 803 Only) MTD-15931
...
xx
SCREW #6-20 x .625 MTD-710-0936
...
54
FUEL TANK MTD-751-0367
...
55
Transmission Cover Ass'y. MTD-15932
...
62
BUSHING MTD-731-0405
...
63
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
64
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
65
SIDE COVER - R.H (Model 803 Only) MTD-16469
...
xx
PANEL-SIDE (LH) COLOR (Not Shown) (Model 803 Only) MTD-15815A
...
xx
SIDE PANEL (RH) (Model 808 Only) MTD-16725
...
xx
PANEL-SIDE (LH) (Not Shown) (Model 808 Only) MTD-17309B
...
66
Truss Mach. Scr. 1/4-20 x .5" MTD-710-0286
...
67
Truss B-Tap Scr. #10 x .5" MTD-710-0351
...
68
CHANNEL-SE MTD-15849
...
69
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
70
BRACKET-SE MTD-15802
...
73
Throttle Control Box Ass'y. MTD-831-0823A
...
74
Throttle Wire MTD-946-0634
...
76
FENDER-RR MTD-15886
...
77
Trim Strip 81" Lg. MTD-731-0511-81
...
78
GROMMET MTD-731-0555A
...
79
Hex AB-Tap Scr. 3/8 x .75" MTD-710-0623
...
80
SEAT PIVOT BRACKET MTD-783-0039A
...
84
Seat Spring MTD-732-0431
...
85
Hex Self-Tap Scr. 5/16-18 x .5" MTD-710-0607
...
86
CAP W/GAUGE-GAS MTD-751-0370
...
87
Choke Control 44.0" Lg. MTD-946-0613A
...
88
BRACKET-SE MTD-15803
...
89
Shoulder Bolt MTD-938-0155
...
90
Key MTD-925-0201
...
91
Light Switch MTD-925-0634
...
92
Ammeter MTD-925-0925
...
93
EXTENSION SPRING MTD-732-0462
...
94
SEAT-W/RNF MTD-757-0336
...
95
CHAIN ADJUSTMENT BOLT MTD-910-0749
...
96
Hex Sems Nut #10-24 MTD-712-0272
...
97
STRIP-RUBBER MTD-735-0224
...
98
CIRCUIT BREAKER MTD-753-0685
...
99
BRACKET-DASH SUP-L MTD-17294B-0637
...
100
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
101
PVC FOAM MTD-722-0138
...
102
Washer .34" I.D. x .62" O.D. MTD-736-0413
...
103
Hex Tap Scr. 1/4-20 x 1.75 (Model 808 Only) MTD-710-1026
...
104
SPACER .255" 1 .D. (Model 808 Only) MTD-750-0583
...
105
Hex Tap Scr. 5/16-18 x 1.25" MTD-710-0817
...
106
SPACER-1.00 x .380 MTD-950-0706
...
107
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
108
SHOULDER SPACER (Model 808 Only) MTD-738-0759
...
110
GRILLE LENS (Optional) MTD-731-0967
...
111
Hex Bolt 1/4-20 x .88" Lg. (Model 808 Only) MTD-710-0206
...
112
Nut, Acorn, 1/4-20 (Model 808 Only) MTD-712-0264A
...
113
BAFFLE (Model 808 Only) MTD-16793

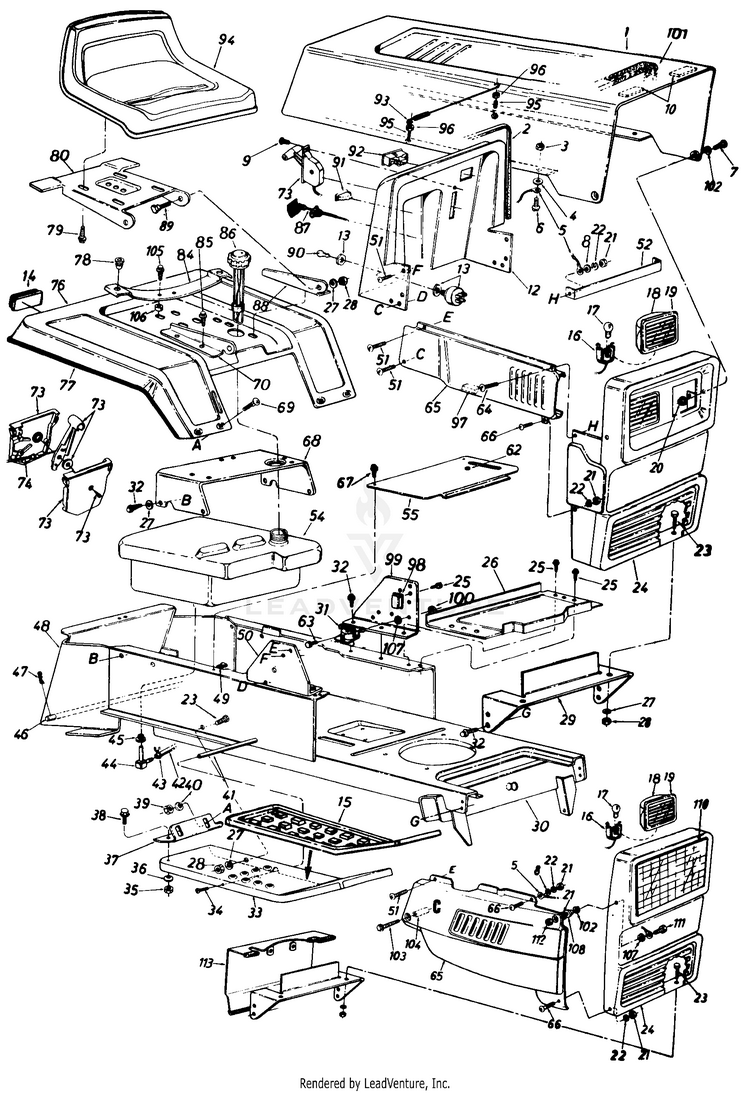

Schematic Image Zoomed
