MTD 130-802H206 Lawn Tractor

Model: 130-802H206

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...

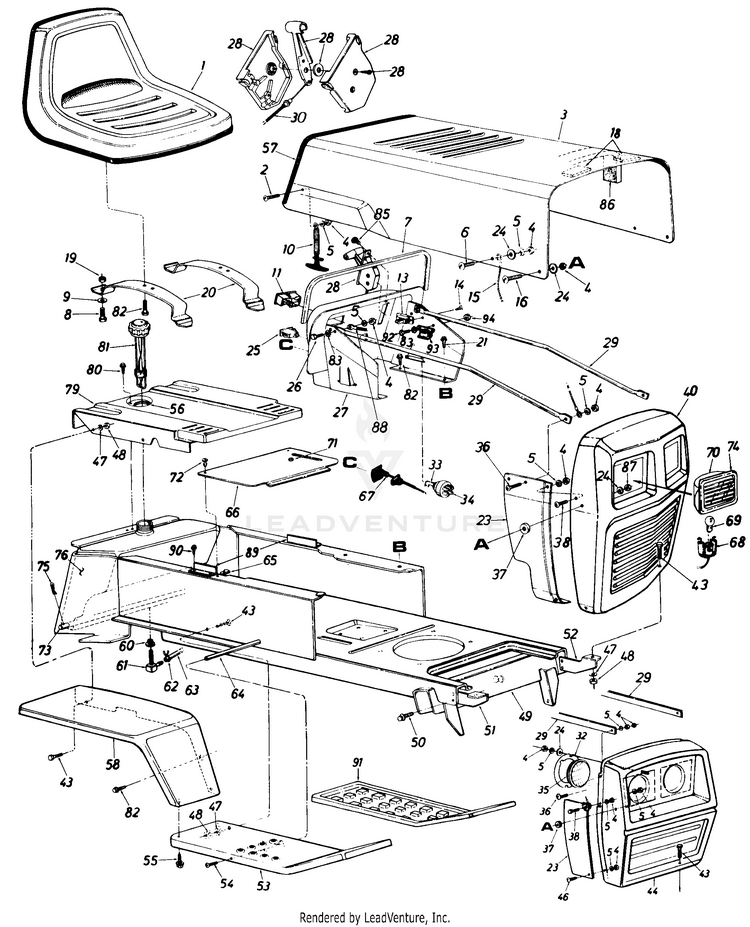

1
SEAT-W/RNF MTD-757-0336
...
2
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
3
HOOD MTD-13808
...
4
HEX NUT 1/4-20 MTD-912-0287
...
5
L-Wash. 1/4" I.D. MTD-936-0329
...
6
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
7
Vinyl Molding Strip 29" MTD-731-0511
...
8
SCREW 1/2-13 x .75 MTD-710-0689
...
9
Fl-Wash 50" I.D. x 1.00"O D x .090 MTD-736-0192
...
10
HOOD LOCK ASSEMBLY MTD-723-0296
...
11
Ammeter MTD-925-0925
...
13
CIRCUIT BREAKER MTD-753-0685
...
14
Hex Tap Scr. #10 x .50" MTD-710-0599
...
15
HOOD STOP MTD-727-0199
...
16
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
18
FOAM STRIP MTD-722-0157
...
19
HEX NUT MTD-712-0206
...
20
SPRING-SEA MTD-13123
...
21
Hex Thd. Rolling Scr. 1/4" x .50" Lg. MTD-710-0599
...
23
PANEL-SIDE (RH) [Used with Reference Number 40 (Model 802)] MTD-16622
...
xx
GRILLE MOUNT BRKT.-L.H. (Not Shown) [Used with Reference Number 40 (Model 802)] MTD-16621
...
xx
Grille Side Panel R.H. [Used with Reference Number 44 (Model 807)] MTD-14748
...
xx
Grille Side Panel L H (Not Shown) [Used with Reference Number 44 (Model 807)] MTD-14749
...
24
Fl-Wash. 1/4" I.D. MTD-736-0173
...
25
Light Switch MTD-925-0634
...
26
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
27
Dash Panel Ass'y. MTD-16325A
...
28
Throttle Control Box Comp. MTD-831-0823A
...
29
ROD-GRILLE SUPPORT [Used with Reference Number 40 (Model 802)] MTD-749-0720
...
xx
BRACE-BOTTOM [Used with Reference Number 44 (Model 807)] MTD-749-0651
...
30
Throttle Wire MTD-946-0634
...
32
RING HOLDE [Used with Reference Number 44 (Model 807)] MTD-09960
...
33
Key MTD-925-0201
...
34
Ignition Switch MTD-925-0267B
...
35
Head Light [Used with Reference Number 44 (Model 807)] MTD-925-0222
...
36
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
37
RUBBER WASHER MTD-735-0144
...
38
Truss Mach. Scr. 1/4-20 x .50" Lg.* MTD-710-0286
...
40
Grille (802) MTD-17026
...
43
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
44
Grille Round Headlights (807) MTD-13800
...
xx
Grille Square Headlights (807) MTD-16486
...
46
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
N Lower Frame Ass'y. MTD-13820D
...
50
Hex Thd. Rolling Scr. 5/16n x.75" Lg. MTD-710-0726
...
51
BRACKET-MT [Used with Reference Number 40 (Model 802)] MTD-17004
...
xx
BRACKET-GR [Used with Reference Number 44 (Model 807)] MTD-13862
...
52
BRACKET-MT [Used with Reference Number 40 (Model 802)] MTD-17005
...
xx
BRACKET-GR [Used with Reference Number 44 (Model 807)] MTD-13863
...
53
RUNNING BOARD (RH) MTD-16922
...
xx
RUNNING BOARD (LH) (Not Shown) MTD-16921
...
54
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
55
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
56
Grommet (Gas Tank Neck) MTD-735-0179
...
57
Vinyl Moulding Strip 31" MTD-731-0511-31
...
58
Fender Ass'y. R.H. MTD-13810A
...
xx
FENDER (LH) (Not Shown) MTD-13809A
...
60
BUSHING (Gas Tank) MTD-935-0149
...
61
90ø Nipple MTD-751-3054
...
62
Hose Clamp MTD-726-0205
...
63
Fuel Line 46" Lg. MTD-751-10349-54
...
64
ROD-RUNNING BOARD MTD-738-0435
...
65
Speed Nut #10-24 MTD-712-0147
...
66
COVER-TRAN MTD-14056
...
67
Choke Control 44.0" Lg. MTD-946-0613A
...
68
HEADLAMP SOCKET [Used with Reference Number 40 (Model 802)] MTD-925-1058A
...
69
Miniature Lamp 12V Socket Type [Used with Reference Number 40 (Model 802)] MTD-925-0963
...
70
HEADLIGHT HOUSING [Used with Reference Number 40 (Model 802)] MTD-931-0705
...
71
BUSHING MTD-731-0405
...
72
Truss Hd. Scr. #10 x .50" MTD-710-0351
...
73
HITCH ROD MTD-738-0482
...
74
HEADLAMP LENS [Used with Reference Number 40 (Model 802)] MTD-931-0706
...
75
Internal Cotter Pin MTD-714-0147
...
76
FUEL TANK MTD-751-0259
...
79
PLATE-SEAT MTD-13814
...
80
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
81
GAS GAUGE MTD-723-0346A
...
82
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
83
External Wash. 1/4" I.D. MTD-736-0222
...
85
Truss Mach. AB-Tap Scr. #10 x .50" Lg. MTD-710-0779A
...
86
PVC FOAM [Used with Reference Number 40 (Model 802)] MTD-722-0138
...
87
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
88
6 GA. BLACK WIRE [Used with Reference Number 40 (Model 802)] MTD-725-0996
...
89
Seat Spring Guide MTD-13831
...
90
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
91
LARGE FOOT PAD (Optional) MTD-731-1052
...
92
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
93
Solenoid MTD-925-1426A
...
94
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
