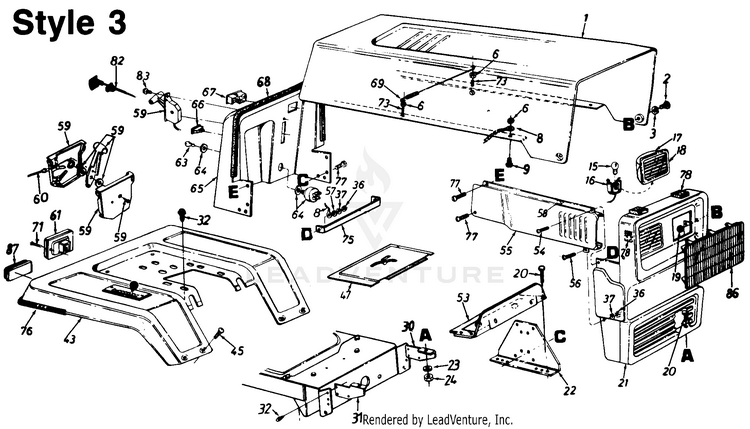

MTD 130-623-000 (1990) (Style 3) Lawn Tractor

Model: 130-623-000 (1990) (Style 3)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
HOOD MTD-15808D
...
2
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
3
Washer.39" I.D. x .62" MTD-736-0413
...
6
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
8
Brake Cable 11.75" Lg. MTD-727-0290A
...
9
Truss Hd. Scr. #10-24 x 1/2" MTD-710-0473
...
15
Miniature Lamp 12V Socket Type MTD-925-0963
...
16
HEADLAMP SOCKET MTD-925-1058A
...
17
HEADLIGHT HOUSING MTD-931-0705
...
18
HEADLAMP LENS (Optional Part) MTD-931-0706
...
19
LOCK NUT 1/4 x 28 MTD-712-0380
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
GRILLE MTD-15804A
...
xx
GRILLE MTD-16457
...
22
DASH SUPPORT BRACKET MTD-17300
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
30
BRACKET-GR MTD-15821
...
31
BRACKET-GRILLE (RH) MTD-15822
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
36
HEX NUT 1/4-20 MTD-912-0287
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
43
FENDER MTD-17228
...
xx
Rear Fender Used w/Taillights MTD-17229
...
45
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
47
Shift Cover MTD-17286B-0637
...
53
BATTERY BRACKET MTD-17633
...
54
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
55
SIDE COVER (RH) MTD-15814A
...
xx
PANEL-SIDE (LH) COLOR (Not Shown) MTD-15815A
...
56
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
57
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
58
CLAMP-MTG MTD-726-0152
...
59
Throttle Control Box Ass'y. MTD-831-0823A
...
60
Throttle Control Wire (B&S) MTD-946-0500
...
xx
Throttle Control Wire 18.5" (Tec.) MTD-946-0638
...
61
Taillight (Optional Part) MTD-725-3018
...
63
Key MTD-925-0201
...
64
Ignition Switch MTD-925-0267B
...
65
DASH PANEL MTD-17295
...
66
Light Switch MTD-925-0634
...
67
Ammeter (Optional Part) MTD-925-0925
...
68
Trim Strip-31" MTD-731-0511-31
...
69
EXTENSION SPRING MTD-732-0462
...
71
SCREW #6-20 x .625 MTD-710-0936
...
73
CHAIN ADJUSTMENT BOLT MTD-910-0749
...
75
TIE-STRAP MTD-15931
...
76
Trim Strip-81" MTD-731-0511-81
...
77
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
78
FOAM STRIP MTD-722-0157
...
82
CHOKE CONTROL 29" MTD-946-0615A
...
83
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
86
GRILLE LENS (Optional Part) MTD-731-0967
...
87
Reflector (Optional Part) MTD-730-0116
