MTD 130-511-000 (1990) Lawn Tractor

Model: 130-511-000 (1990)

Back To Assemblies

Save Part Not Listed?
product name

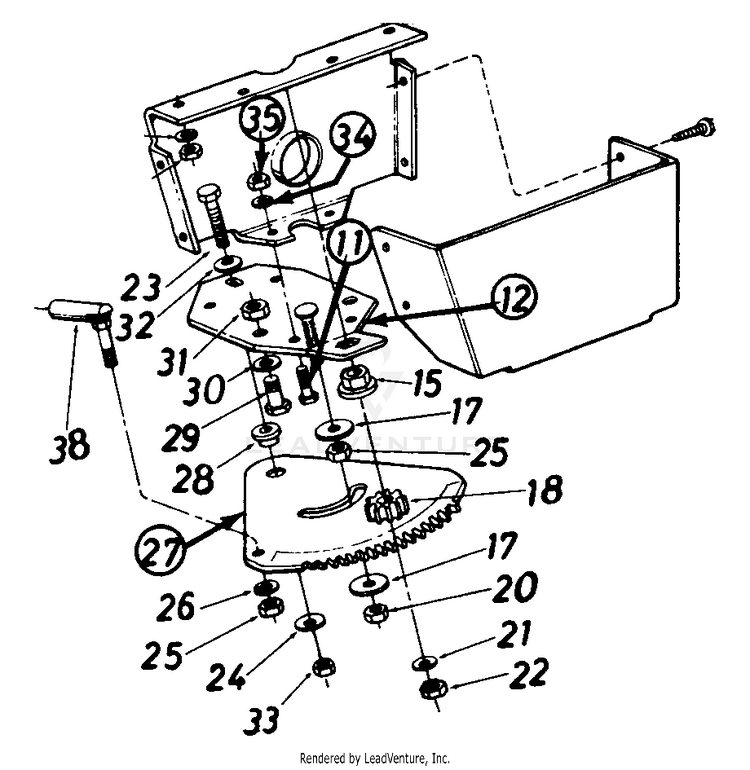

Parts Used For Early Production (changes)

...
...
11
Hex Bolt 5/16-18 x .75" Lg.* (Part used for early production) MTD-710-0118
...
12
BRACKET AS (Part used for early production) MTD-17130
...
15
FLANGE BEARING MTD-941-0225
...
17
Fl-Washer 3/8" I.D. x 1.37" O.D. MTD-736-0320
...
18
PINION GEAR MTD-948-0290
...
20
Hex L-Nut 3/8-24 MTD-712-0116
...
21
FLAT WASHER MTD-736-0275
...
22
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
23
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
24
Fl-Wash. .385" I.D. x 1.38" MTD-736-0320
...
25
Hex Nut 3/8-24 Thd. MTD-712-0241
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
STEERING SEGMENT (Part used for early production) MTD-917-0472A
...
28
SPACER MTD-738-0541
...
29
SCREW 1/2-13 x .75 MTD-710-0689
...
30
Fl-Wash. .530" I.D. x 930" MTD-736-0160
...
31
HEX NUT MTD-712-0206
...
32
Bell-Wash. .385" I.D. x .88" MTD-736-0105
...
33
Hex Nut 3/8-24 Thd. MTD-712-0241
...
34
Lock Wash. 5/16" I.D. (Part used for early production) MTD-936-0119
...
35
HEX NUT 5/16-18 (Part used for early production) MTD-712-3010
...
38
Ball Joint MTD-923-0156
