MTD 129-837R401 (1989) Self Propelled Mower

Model: 129-837R401 (1989)

Save Part Not Listed?
product name

Parts

...
...

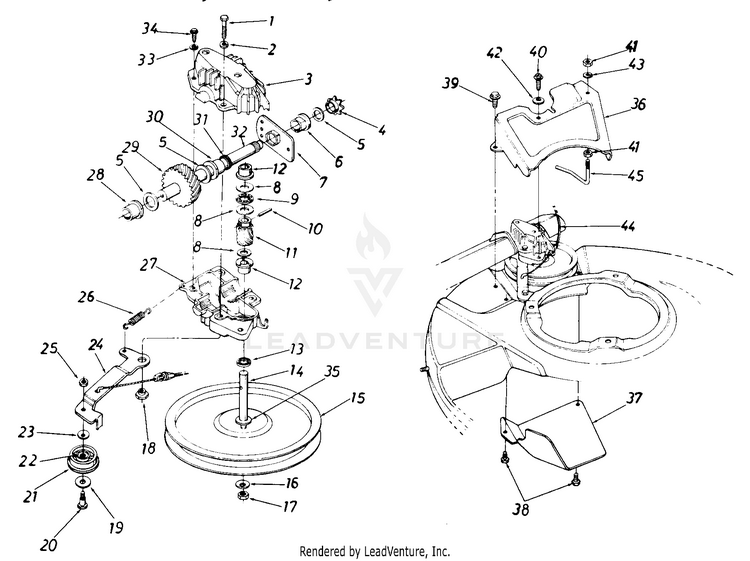

1
Hex Bolt 1/4-20 x 1.25" Lg.* MTD-710-0106
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
10
SPRING PIN MTD-715-0152
...
11
WORM GEAR MTD-717-0420
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
14
PINION SHAFT 11T MTD-917-1216
...
15
PULLEY (Not Part of Transmission Complete) MTD-756-0330A
...
16
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
17
Jam Nut, 1/4-28, LH (Not Part of Transmission Complete) MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 (Not Part of Transmission Complete) MTD-738-0440
...
19
Fl-Wash. .390" I.D. x 1.0" (Not Part of Transmission Complete) MTD-736-0344
...
20
SHOULDER SCREW (Not Part of Transmission Complete) MTD-938-0691
...
21
Fl-Idler Plastic 1.50" Dia. x .48 (Not Part of Transmission Complete) MTD-753-0518
...
22
NEEDLE BEARING (Not Part of Transmission Complete) MTD-741-0482
...
23
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY (Not Part of Transmission Complete) MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. (Not Part of Transmission Complete) MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. (Not Part of Transmission Complete) MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD (Not Part of Transmission Complete) MTD-736-0410
...
36
BELT GUARD (Not Part of Transmission Complete) MTD-17058A-0637
...
37
BELT COVER MTD-17064
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. (Not Part of Transmission Complete) MTD-710-0352
...
39
Hex AB-Tap Scr. 1/4 x .50" Lg. (Not Part of Transmission Complete) MTD-710-0599
...
40
Hex B-Tap Scr. 1/4 x .62/' Lg. MTD-710-0896
...
41
HEX NUT 1/4-20 (Not Part of Transmission Complete) MTD-912-0287
...
42
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
43
L-Wash. 1/4" I.D. (Not Part of Transmission Complete) MTD-936-0329
...
44
S.P. Cable (Not Part of Transmission Complete) MTD-946-0710A
...
45
BELT GUARD (Not Part of Transmission Complete) MTD-747-0549
...
xx
TRANSMISSION MTD-917-0417B

Parts

...
...
1
FOAM GRIP - 9" MTD-720-0294A
...
2
BAIL (LH) MTD-731-0609
...
3
CHUTE ASSEMBLY (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-731-1023
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
5
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
7
PANEL MTD-731-0817
...
8
CONROL DISC PIN MTD-731-0524
...
9
CIUTCH PANEL HALF MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
Hub Cap MTD-731-0981C
...
12
Truss Mach. Scr. 1/4-20 x .62" Lg. (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-710-0946
...
14
Upper Handle MTD-749-0439E-0637
...
15
BRACKET-PANEL SUP (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-16129A-0637
...
16
PANEL ASSEMBLY-CATCHER (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-16862
...
17
DOOR-TOP DISCHARGE (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-17095
...
18
Hex B-Tap Scr. #10 x .38" (826R, 836R) MTD-910-0429
...
19
Torsion Spring (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-732-0483A
...
20
ROD (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x.75" Lg. (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-710-0924
...
23
Hex Bolt 1/4-20 x .50" Lg. (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-910-0289
...
24
Shoulder Bolt .312 Dia. x. .18 Lg.-Special MTD-738-0704
...
25
Hex Bolt 1/4-20 x .62" Lg. (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-710-0258
...
26
HEX NUT 1/4-20 MTD-912-0287
...
27
SPRING WASHER BELL MTD-736-0270
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Front Grass Catcher Frame (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-747-0705-0637
...
31
Control Cover Half-Lower MTD-753-0833
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. (826R, 836R, 837R) MTD-946-0674A
...
xx
Throttle Cable (838R) MTD-946-1115
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
38
GRASS CATCHER BAG (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-964-0082
...
xx
GRASS CATCHER BAG (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-964-0082
...
39
STRIP-RETA MTD-14835
...
40
Truss Mach. Scr. 5/16-18 x .75" Lg. (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-710-0323
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
AXLE ASSEMBLY-CHAIN MTD-17055B
...
43
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
44
BALL BEARING MTD-941-0180
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
ARM-CATCHER SUPPORT (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-749-0778
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN 1/2 PI MTD-713-0353
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
50
PLUG MTD-731-0564
...
51
FLAP-REAR MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
54
SCREW #12 x 14 x 1.250 (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-710-1025
...
55
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
56
21" Blade MTD-942-0621
...
58
KIT-BLADE MOUNTING MTD-753-0525
...
59
ARM-HGT ADJ CONNECT MTD-16863
...
60
Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5) MTD-710-0757
...
61
Spacer .513" I.D. x .703" O.D. x .69" Lg. MTD-748-0190
...
62
SERRATED HALF PULLEY MTD-756-0502
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
BRACKET ASSEMBLY (RH) MTD-16136A
...
65
BRACKET ASSEMBLY (LH) MTD-16137B
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8 MTD-710-0603
...
68
Hex Wash. Hd. TT-Tap Scr. 3/8-1 6 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0606
...
72
EXTENSION SPRING MTD-732-0362
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
76
Rope Guide (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-719-0279
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
78
Instruction Label MTD-777-5816
...
79
LABEL-ERS THROT. CONT. MTD-777-5812
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
82
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
83
CLAMP MTD-726-0175
...
84
BEARING MTD-741-0486A
...
85
Wave Washer MTD-736-0447
...
86
SERRATED WASHER MTD-936-0409
...
87
PANEL BAG CLIP (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-731-0880
...
88
NUT MTD-712-0189
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
BAG HANDLE BLACK (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-731-0801
...
xx
BAG HANDLE BLACK (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-731-0802
...
100
Hex Wash. Hd. Self-Tap Scr. (826R, 836R) MTD-710-0651
...
101
CLIP-CASING (826R, 836R) MTD-751-0463
...
102
629/N 21" Deck Ass'y. MTD-16859
...
103
Shld. Bolt .5" Dia. x .295 MTD-738-0234
...
104
Bell-Wash. .515" I.D. x 1.0" O.D. MTD-736-0253
...
105
FRONT AXLE ASSEMBLY MTD-982-7509-0637
...
106
SLEEVE MTD-711-0313
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW MTD-938-0705
...
113
Wheels - Front MTD-753-08093
...
114
Control Cover Half-Lower MTD-753-0833
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
117
HEIGHT ADJUSTMENT KNOB (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-731-13116-1
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
119
Pawl Plate MTD-16855
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
129
CONTROL CABLE-58.0 LG (838R) MTD-746-0482
...
xx
CABLE-CONTROL (826R, 836R) MTD-746-0480A
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
132
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
133
DEFLECTOR-SIDE CHUTE BLACK MTD-731-0884
...
134
Hex Flange Bearing MTD-741-0522
...
135
CONTROL HOUSING COMP. MTD-753-0430
...
136
Spring-Nylon MTD-10622B
...
138
COVER-CHAIN MTD-17053A
...
140
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
144
Fl-Wash. .385" I.D. x .87" MTD-736-0300
...
147
REAR SHAFT ASSEMBLY MTD-738-0719A
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
151
Flanged Nyliner Brg. MTD-741-0491
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION (See Breakdown) MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
156
CASING CLAMP (826R, 836R) MTD-12894A
...
157
RIVET (826R, 836R) MTD-728-0171
...
158
BRACKET-CA (826R, 836R) MTD-14924
...
159
Hex Nut 3/8-16 Thd. (837R) MTD-712-0798
...
160
Fl-Wash. .51" I.D. x .75" O.D. MTD-736-0108
...
161
Rear Grass Catcher Frame (Rear Discharge Models 836R, 836R 837R & 838R Only) MTD-749-0764A-0637
...
162
JAM LOCK NUT MTD-712-0266A
