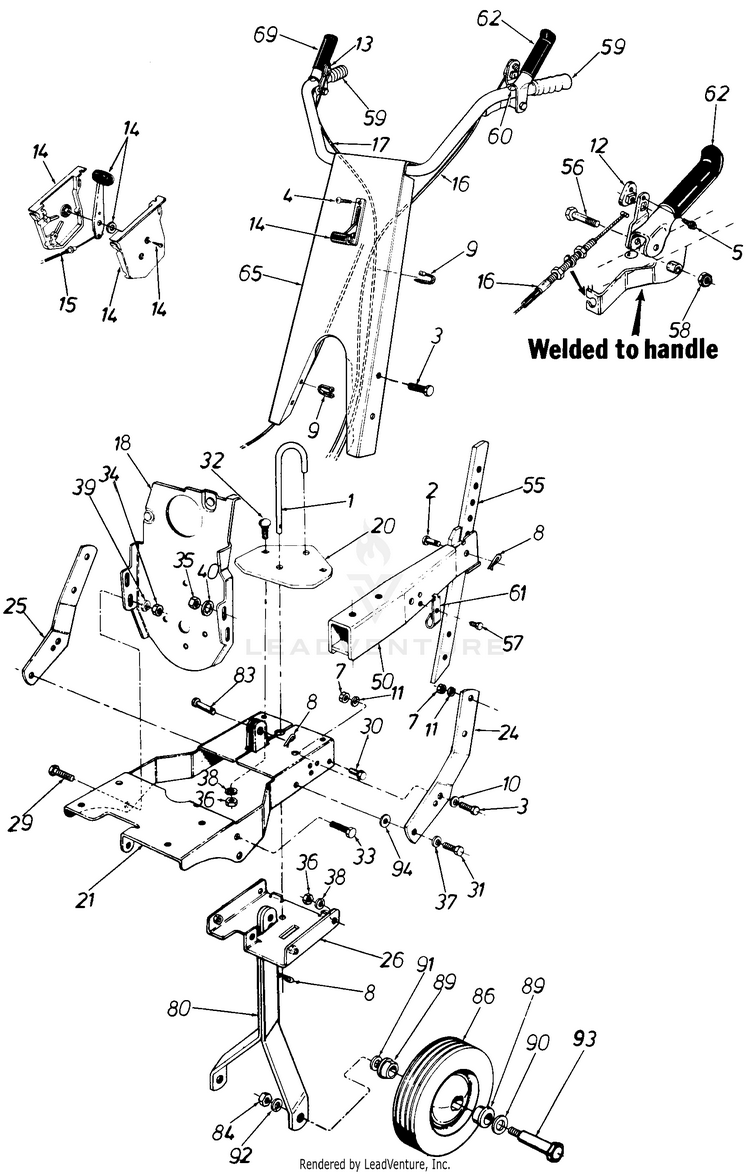

MTD 129-366B023 Tiller

Model: 129-366B023

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
CLEVIS PIN MTD-04602
...
2
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
3
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
4
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
5
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919
...
7
Hex Nut 3/8-16 Thd. MTD-712-0798
...
8
Internal Cotter Pin MTD-714-0149B
...
9
Cable Tie MTD-725-0157
...
10
Bell-Wash. 3/8" I.D. MTD-736-0105
...
11
L-Wash. 3/8" I.D. MTD-736-0169
...
12
Barrel Cable Hold Down MTD-946-0605
...
13
HOLD DOWN-BARREL (RH) MTD-746-0606
...
14
Throttle Control Box Ass'y. MTD-831-0823A
...
15
35" THROTTLE CABLE MTD-946-0503
...
16
CLUTCH CABLE (Forward) MTD-746-0619B
...
17
CLUTCH CABLE (Reverse) MTD-746-0620B
...
18
PLATE ASSEMBLY-MTG MTD-784-0250
...
20
U-Channel Plate MTD-04586
...
21
Tiller Frame Ass'y. MTD-04697A
...
24
Handle Brkt.-L.H. MTD-06805
...
25
BRACKET-HA MTD-06806
...
26
U-Channel Brkt. Ass'y. MTD-06816
...
29
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
30
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
31
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
32
Carr. Bolt 5/16-18 x .75 Lg. MTD-710-0451
...
33
SCREW 1/2-20 x 1.00 GR2 (Spec.) MTD-710-0592
...
34
Hex L-Nut 3/8-24 Thd. MTD-712-0214
...
35
Hex L-Nut 1/2-20 Thd. MTD-712-0239
...
36
HEX NUT 5/16-18 MTD-712-3010
...
37
Bell-Wash. 3/8" I.D. MTD-736-0105
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
Extern. L-Wash. 3/8" i.D. MTD-736-0148
...
40
EXT. L-WASH. 1/2" I.D. MTD-736-0190
...
50
TAILPIECE ASS'Y. MTD-06807
...
55
Depth Stake MTD-06811
...
56
Hex Bolt 3/8-24 x 2.0" Lg. MTD-710-0151
...
57
Hex TT-Tap Scr. 1/4-20 x 1/2 " Lg . MTD-710-0599
...
58
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
59
Grip MTD-720-04083
...
60
Bumper, Rubber (For Handles) MTD-735-0199A
...
61
Depth Stake-Spring MTD-732-0322
...
62
CLUTCH LEVER ASSEMBLY (POWDER BLACK) MTD-684-04399A-0637
...
65
HANDLE ASS'Y. MTD-784-0243
...
69
GRIP MTD-784-0255
...
80
BRACKET AS MTD-06813
...
83
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
84
Hex Jam Nut 1/2-20 Thd. MTD-712-0200A
...
86
WHEEL KIT REPLACEM'T MTD-753-04874
...
89
FLANGE BEARING MTD-741-0116
...
90
Fl-Wash. .640" x 1.24" x .06" MTD-736-0187
...
91
Bell-Wash. 1/2" I.D. MTD-736-0253
...
92
L-Wash. 1/2" I.D. MTD-736-0921
...
93
SCREW-SHLD MTD-738-0318
...
94
Fl-Wash. 3/8" I.D. MTD-736-0300
