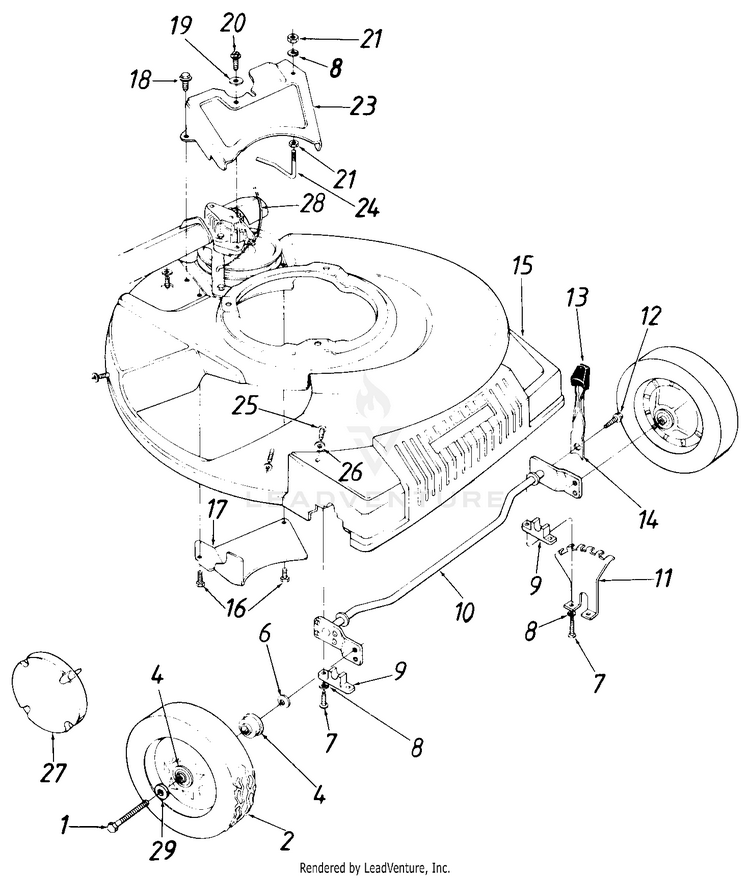

MTD 12886-8 (1988) Self Propelled Mower

Model: 12886-8 (1988)

Back To Assemblies

Save Part Not Listed?
product name

21"

...
...
1
Front Axle Bolt MTD-738-0102
...
2
Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484) MTD-734-1517B
...
4
BALL BEARING MTD-941-0180
...
6
Bell-Wash. .400" I.D. x .88 MTD-736-0105
...
7
Screw, Hex MTD-710-0788
...
8
L-Wash. 1/4" I.D. MTD-936-0329
...
9
Block Bushing MTD-741-0492A
...
10
AXLE ASSEMBLY MTD-17060
...
11
BRACKET-HG MTD-17059
...
12
Hex Wash. Hd. B-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
13
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
14
Spring Lever MTD-732-0553
...
15
FRONT END MTD-731-0865
...
16
Hex B-Tap Scr. 1/4-.38" MTD-710-0352
...
17
BELT COVER MTD-17065A-0637
...
18
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
19
SPRING WASHER BELL MTD-736-0270
...
20
Hex Wash. Hd. B-Tap Scr. 1/4 x.62" (Spec.) MTD-710-0896
...
21
HEX NUT 1/4-20 MTD-912-0287
...
23
BELT GUARD MTD-17058A-0637
...
24
BELT GUARD MTD-747-0549
...
25
HL Screw, 5/16-14 x .750 MTD-710-1242
...
26
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
27
Hub Cap (Beige) MTD-731-0982C
...
28
CLUTCH CABLE 50" MTD-946-0650
...
29
Fl-Wash. .531" I.D. MTD-736-0160
