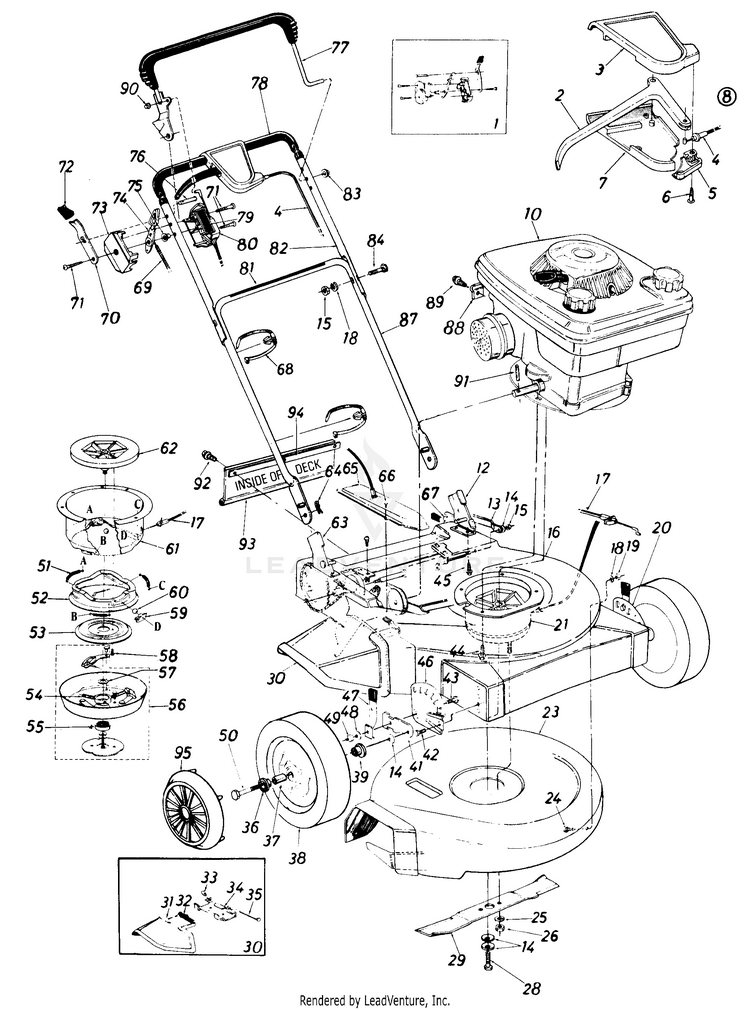

MTD 128-232B000 (1988) Self Propelled Mower

Model: 128-232B000 (1988)

Back To Assemblies

Save Part Not Listed?
product name

Parts01

...
...
1
KIT-THROTTLE CONTROL MTD-753-0431
...
2
Drive Control MTD-731-0620A
...
3
HALF COVER MTD-731-0617A
...
4
CLUTCH CABLE - 59" MTD-746-0464
...
5
CABLE MOUNTING CAP MTD-731-0619
...
6
Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
7
Control Cover Half-Lower MTD-753-0833
...
8
KIT-CLUTCH CONTROL MTD-753-0362
...
10
Engine MTD-NA
...
12
BRACKET AS MTD-12935
...
13
BRACKET-PI MTD-14927
...
14
Belleville Wash. 3/8" I.D. MTD-736-0105
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
DECK ASSEMBLY-21IN MTD-16025
...
17
CLUTCH CABLE MTD-946-0405
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
ADJUSTER-H MTD-10941
...
xx
PLATE ASSEMBLY MTD-10935
...
21
BLADE BRAKE/CLUTCH ASS'Y. COMP. MTD-717-0488
...
23
Lower Deck Ass'y. MTD-11695
...
24
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
25
L-Wash. 3/8" I.D. MTD-736-0169
...
26
Hex Nut 3/8-24 Thd. MTD-712-0241
...
28
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) MTD-710-0818
...
29
21" Blade MTD-942-0621
...
30
DEFLECTOR MTD-11679
...
31
CHUTE DEFLECTO MTD-11141
...
32
TORSION SPRING MTD-732-0253
...
33
PUSH NUT MTD-726-0106
...
34
ADAPTER PLATE MTD-11130
...
35
PIVOT PIN MTD-711-0555
...
36
FORTIFLEX BEARING MTD-741-0267
...
37
Spacer MTD-750-0434
...
38
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
39
BALL BEARING MTD-941-0484
...
41
BAR-WHEEL PIVOT MTD-10937
...
42
HEX SCREW SEMS 3/8-16 x .62 MTD-710-0209
...
43
BOLT-SHLD MTD-711-0498
...
44
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
45
Hex Wash. Hd. "B"-Tap Scr. 5/16 x 1/2 " Lg. MTD-710-0603
...
46
ADJUSTER-H MTD-10938
...
xx
PLATE ASSEMBLY MTD-10934
...
47
LEVER ASSEMBLY-SPRING MTD-14082
...
48
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
49
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
50
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
51
EXTENSION SPRING MTD-732-0397
...
52
Brake Cup Cone MTD-14305
...
53
CLUTCH CONE MTD-14304
...
54
SPRING MTD-732-0396
...
55
BALL BEARING MTD-941-0600
...
56
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
57
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
58
Hex TT-Tap L-Scr. '/4-20 x .75" Lg. MTD-710-0875
...
59
BALL-BLOCK MTD-731-0520
...
60
STEEL BALL MTD-741-0326
...
61
Clutch Housing MTD-14308
...
62
ADAPTER-FAN MTD-719-0256
...
63
BRACKET ASSY-HDLE MTD-12936
...
64
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
65
BELT COVER MTD-16029
...
66
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
67
Index Plate Ass'y.-L.H. MTD-10641
...
68
Cable Tie MTD-725-0157
...
69
Throttle Cable MTD-946-1115
...
70
SPRING-LOCKOUT MTD-732-0401
...
71
Truss Mach. Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
72
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
73
PANEL MTD-731-0817
...
74
Throttle Control Lever MTD-931-0972
...
75
CONROL DISC PIN MTD-731-0524
...
76
LOCKING PIN MTD-731-0607
...
77
BAIL (RH) MTD-731-0610
...
78
Grip MTD-718-0145
...
79
Control Label-Throttle MTD-777-5772
...
80
CIUTCH PANEL HALF MTD-731-0816
...
81
Instruction Label-Handle MTD-777-5775
...
82
UPPER HANDLE MTD-749-0537
...
83
Cap Speed Nut 5/16" Rod MTD-726-0135
...
84
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
87
Lower Handle MTD-749-0928A-0637
...
88
CASING CLAMP MTD-751-0442
...
89
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
90
PUSH CAP MTD-726-0245
...
91
SPIROL PIN MTD-715-0144
...
92
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
93
FLAP ASSEMBLY MTD-731-1029
...
94
STRIP-RETA MTD-14836
...
95
HUB CAP MTD-731-0124
