MTD 128-232B000 (1988) Self Propelled Mower

Model: 128-232B000 (1988)

Save
 Part Not Listed?Part Not Listed?
product name

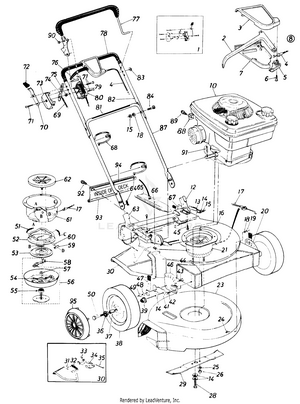

Parts01

...
...
1
Control Housing Comp. MTD-753-0431
...
2
Drive Control MTD-731-0620A
...
3
Control Cover Half-Upper MTD-731-0617A
...
4
Drive Clutch Cable-59" MTD-746-0464
...
5
Cable Mounting Cap MTD-731-0619
...
6
Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
7
Control Cover Half-Lower MTD-753-0833
...
8
Clutch Control Housing Comp. MTD-753-0362
...
10
Engine MTD-NA
...
12
Handle Mount Brkt. Ass'y.-L . H . MTD-12935
...
13
Pivot Brkt. Ass'y.-L.H. MTD-14927
...
14
Belleville Wash. 3/8" I.D. MTD-736-0105
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
21" Deck Ass'y.-Upper MTD-16025
...
17
Clutch Cable 46" Lg. MTD-946-0405
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
Height Adj. Ass'y. Comp.-L.H . MTD-10941
...
xx
Index Plate Ass'y.-L.H. MTD-10935
...
21
Blade Brake/Clutch Ass'y.-Comp. MTD-717-0488
...
23
Lower Deck Ass'y. MTD-11695
...
24
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
25
L-Wash. 3/8" I.D. MTD-736-0169
...
26
Hex Nut 3/8-24 Thd. MTD-712-0241
...
28
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) MTD-710-0818
...
29
21" Blade MTD-942-0621
...
30
Chute Deflector Ass'y.-Comp . MTD-11679
...
31
Chute Deflector MTD-11141
...
32
Torsion Spring MTD-732-0253
...
33
PUSH NUT MTD-726-0106
...
34
Adapter Plate MTD-11130
...
35
Pivot Pin MTD-711-0555
...
36
Ball Bearing 3/8" I.D. MTD-741-0267
...
37
Spacer MTD-750-0434
...
38
Wheel Ass'y. Comp. 8 x 1.75 MTD-734-0645
...
39
BALL BEARING MTD-941-0484
...
41
Pivot Bar MTD-10937
...
42
HEX SCREW SEMS 3/8-16 x .62 MTD-710-0209
...
43
Shoulder Bolt MTD-711-0498
...
44
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
45
Hex Wash. Hd. "B"-Tap Scr. 5/16 x 1/2 " Lg. MTD-710-0603
...
46
Height Adjuster Ass'y. Comp.-R.H. MTD-10938
...
xx
Index Plate Ass'y.-R.H. MTD-10934
...
47
Spring Lever Ass'y. w/Knob MTD-14082
...
48
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
49
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
50
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
51
Extension Spring MTD-732-0397
...
52
Brake Cup Cone MTD-14305
...
53
Clutching Cone MTD-14304
...
54
Compression Spring MTD-732-0396
...
55
BALL BEARING MTD-941-0600
...
56
Clutch Blade Housing Ass'y. MTD-14300
...
57
Fl-Wash. .69" I.D. x 1.06" MTD-736-0333
...
58
Hex TT-Tap L-Scr. '/4-20 x .75" Lg. MTD-710-0875
...
59
Ball Block MTD-731-0520
...
60
Steel Ball 1/2" Dia. MTD-741-0326
...
61
Clutch Housing MTD-14308
...
62
Fan Adapter MTD-719-0256
...
63
Handle Mount Brkt. Ass'y.-R. H. MTD-12936
...
64
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
65
Belt Cover MTD-16029
...
66
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
67
Index Plate Ass'y.-L.H. MTD-10641
...
68
Cable Tie MTD-725-0157
...
69
Throttle Cable MTD-946-1115
...
70
Lockout Spring MTD-732-0401
...
71
Truss Mach. Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
72
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
73
Control Panel Half MTD-731-0817
...
74
Throttle Control Lever MTD-931-0972
...
75
Control Disc Pin MTD-731-0524
...
76
Lock Pin MTD-731-0607
...
77
Control Handle-R.H. MTD-731-0610
...
78
Grip MTD-718-0145
...
79
Control Label-Throttle MTD-777-5772
...
80
Clutch Panel Half MTD-731-0816
...
81
Instruction Label-Handle MTD-777-5775
...
82
Upper Handle MTD-749-0537
...
83
Cap Speed Nut 5/16" Rod MTD-726-0135
...
84
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
87
Lower Handle MTD-749-0928A-0637
...
88
Casing Clamp MTD-751-0442
...
89
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
90
Push Cap MTD-726-0245
...
91
Spring Pin 3/16" Dia. x 1.5" MTD-715-0144
...
92
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
93
Rear Flap Ass'y. MTD-731-1029
...
94
Retaining Strip MTD-14836
...
95
Hub Cap MTD-731-0124

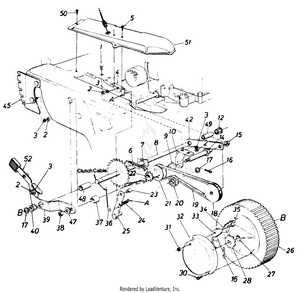

Parts02

...
...
1
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Lock Wash. 5/16" I.D. MTD-936-0119
...
4
Cam Bracket MTD-14245
...
5
Hex "AB" Tap Scr. 1/4-20 x .62" MTD-710-0892
...
6
#48 Chain Pitch x 32 Links (Endless) MTD-913-0144
...
xx
#48 Master Link 1/2" Pitch MTD-713-0122
...
7
Push Clip .692 Dia. MTD-726-0163
...
8
Rear Shaft Ass'y. MTD-10646
...
9
Flange Bearing .631" I.D. MTD-741-0249
...
10
Bracket MTD-10644
...
12
Flange Bearing MTD-748-0142
...
14
Shld. Bolt .625" Dia. x 3.380 (Special) MTD-738-0473
...
15
Cap Speed Nut .50" Dia. MTD-726-0221
...
16
Cotter Pin 1/8" Dia. x 1.0" MTD-714-0115
...
17
Fl-Wash. .531 I.D. x .930 O.D. MTD-736-0160
...
18
Engine Pulley MTD-756-0384
...
19
"V"-Belt MTD-754-0114
...
20
Plastic Flat Idler MTD-756-0360
...
21
Pulley w/Sprocket Ass'y. MTD-756-0191
...
22
Sleeve Bearing MTD-941-0181
...
23
SHOULDER SCREW MTD-938-0255
...
24
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
25
Idler Bracket Ass'y. MTD-14181
...
26
Rear Wheel Ass'y. Comp. MTD-734-1411
...
27
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
28
Ratchet-Rear Wheel MTD-748-0187
...
30
"AB" Tap Scr. #12 x .50" MTD-710-0748
...
31
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
32
Hub Cap MTD-10647
...
33
Pawl LH MTD-948-0188B
...
34
Spring - Nylon MTD-10622B
...
35
Shld. Bolt .342" Dia. x .268" MTD-738-0137
...
36
Drive Clutch Cable 59" Lg. MTD-746-0464
...
37
Spacer .635 I.D. x .88 O.D. MTD-750-0477
...
38
Jam Nut, 3/8-16 MTD-912-3008
...
39
Pivot Bracket Ass'y.-R.H. MTD-14926
...
xx
Pivot Bracket Ass'y.-L.H. MTD-14927
...
40
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
42
Support Link MTD-12967
...
45
Index Plate Ass'y.-R.H. MTD-10642
...
xx
SCREW-TRUSS MACH AB-TAPP #8 X MTD-710-0200
...
47
Belleville Washer MTD-736-0105
...
48
Spacer MTD-750-0459
...
49
Spacer MTD-750-0190
...
50
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
51
Belt Cover MTD-16029
...
52
Spring Lever Ass'y. w/Knob MTD-10531
...
...
...
