MTD 12574S (1985) Self Propelled Mower

Model: 12574S (1985)

Back To Assemblies

Save Part Not Listed?
product name

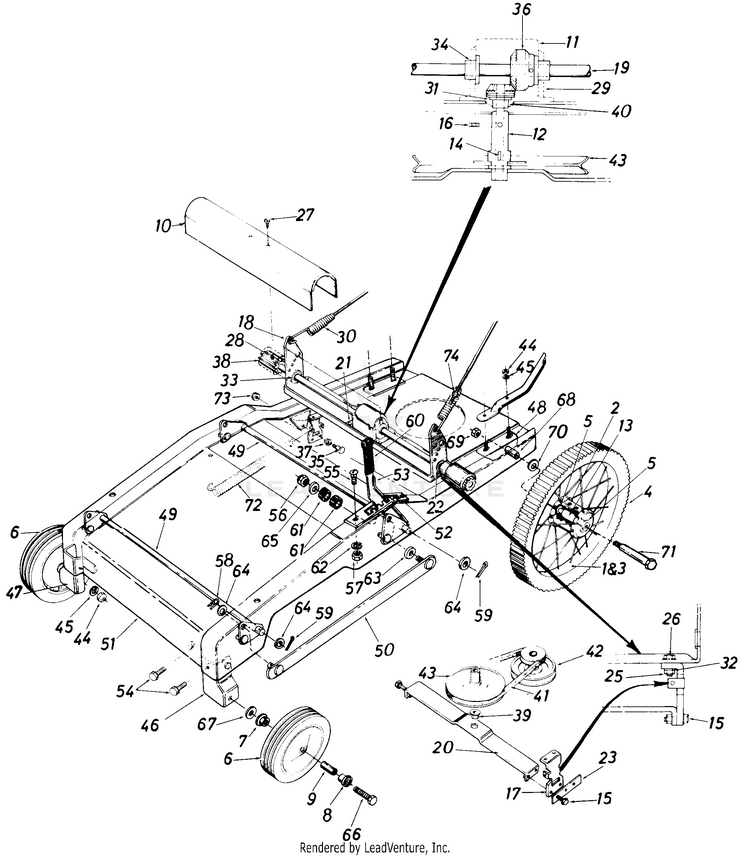

Rotary (Part 2)

...
...
1
16" Wheel Ass'y. Comp. Rear MTD-734-0424
...
2
CAP-PLASTIC MTD-718-0132
...
3
Rear Wheel Rim Only MTD-734-0180
...
4
TIRE-SEMI PNEU-16 x 1.75 MTD-734-0391
...
5
BALL BEARING MTD-741-0138
...
6
WHEEL ASSEMBLY W/TIRE- MTD-734-1031
...
7
FORTIFLEX BEARING MTD-741-0267
...
8
BALL BEARING MTD-941-0484
...
9
Spacer 3/8 I.D MTD-750-0434
...
10
TOP COVER MTD-08100
...
11
Gear Box Cover MTD-08187
...
12
PINION ASS'Y. MTD-10254
...
13
Wheel Spacer MTD-711-0426
...
14
WOODRUFF KEY #2-3/32X1/2 DIA- MTD-714-0229
...
15
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
16
SCREW-SET 5/16-18 x .25 CUP MTD-710-0421
...
17
Bottom Drive Frame MTD-10320
...
18
Top Drive Frame Ass'y. MTD-15493
...
19
SHAFT-DRIV MTD-10322
...
20
FRAME ASSEMBLY MTD-10328
...
21
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
22
COLLAR MTD-711-0169
...
23
Drive Frame Stop MTD-10883
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
27
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
28
Spring Pin 3/16" Dia. x 1.12" Lg. MTD-715-0150
...
29
GEAR BOX ASSEMBLY MTD-717-0108
...
30
EXTENSION SPRING MTD-732-0305
...
31
O-RING MTD-735-0193
...
32
Lock Wash. 5/16" I.D. MTD-936-0119
...
33
BALL BEARING MTD-741-0138
...
34
Flange Brg. .630" I.D. MTD-748-0110
...
35
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
36
BEVEL GEAR-.62 ID MTD-748-0135
...
37
SLIDE-PIVOT MTD-748-0180
...
38
DRIVE PINION MTD-748-0182
...
39
Hex Flange Brg. .503" I.D. MTD-748-0226
...
40
Flange Bearing, .503 x .75 MTD-948-0108
...
41
3 V-BELT 28" LG. MTD-754-0143
...
42
ENGINE PULLEY-TWO STEP MTD-756-0154
...
43
PULLEY MTD-756-0155
...
44
Hex L-Nut 3/8-16 Thd. MTD-712-0375
...
45
L-Wash. 3/8 I.D.* MTD-736-0169
...
46
Wheel Brk't. Ass'y. L.H. MTD-10293
...
47
Wheel Brk't. Ass'y. R.H. MTD-10294
...
48
Rear Wheel Brk't. Ass'y. MTD-10297
...
49
Lift Bracket Shaft Ass'y. MTD-15329
...
50
LINK ASSEMBLY MTD-15331
...
51
Frame MTD-15340
...
52
Lift Handle Support Brk't. MTD-15341
...
53
HANDLE-LIF MTD-15342
...
54
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
55
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
56
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
59
Cot. Pin 118" Dia. x 1.00" Lg. MTD-714-0115
...
60
Grip Black MTD-720-0142
...
61
RUBBER WASHER MTD-735-0126A
...
62
Lock Wash. 5/16" I.D. MTD-936-0119
...
63
FLAT WASHER .406 ID X 1 1/4 OD MTD-736-0247
...
64
FLAT WASHER .510 x .995 MTD-736-0272
...
65
Fl-Wash. .385" I.D. x .87" O.D. x .06 MTD-736-0300
...
66
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
67
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
68
Spacer.523" I.D. x .640" O.D. x 1.955 MTD-711-0425
...
69
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
70
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0192
...
71
SHOULDER SCREW .498 DIA x 4.755 MTD-738-0114
...
72
EXTENSION SPRING MTD-732-0206
...
73
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
74
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
