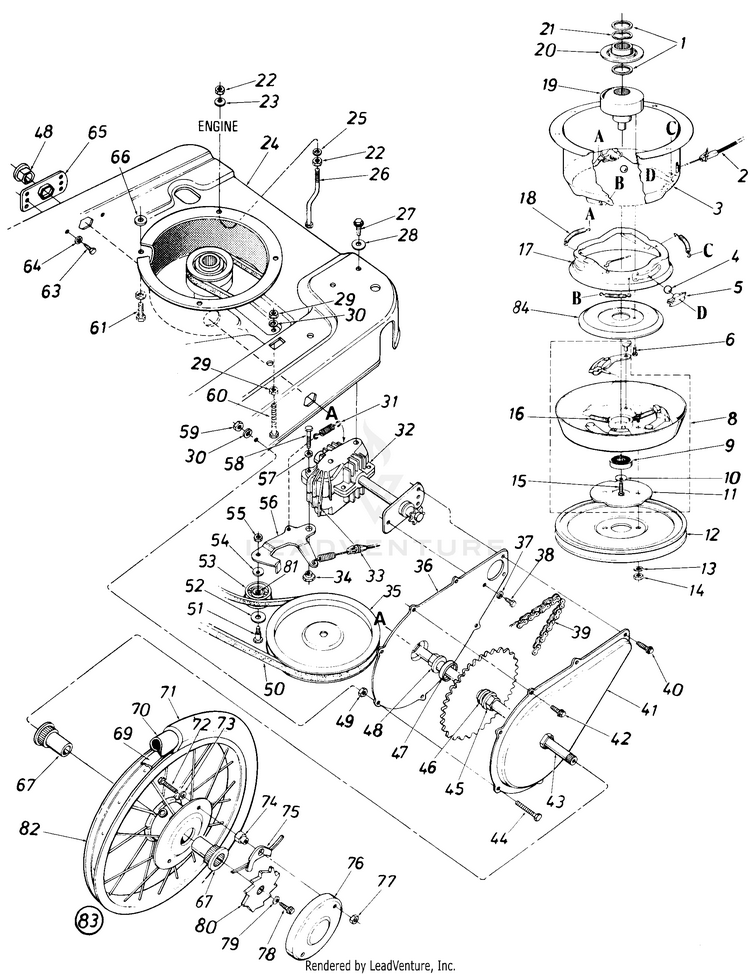

MTD 12560-7 (1987) Self Propelled Mower

Model: 12560-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

Hi-Wheel

...
...
1
SERRATED WASHER MTD-936-0409
...
2
CLUTCH CABLE MTD-946-0405
...
xx
HOUSING-CL MTD-16509
...
3
HOUSING-CL MTD-16509
...
4
STEEL BALL MTD-741-0326
...
5
BALL-BLOCK MTD-731-0520
...
6
Hex Wash. TT-Tap Cl. Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
8
Clutch Blade Housing Ass'y. (Incl. Ref. Nos. 19 & 84) MTD-717-0888
...
9
BALL BEARING MTD-941-0600
...
10
BELL WASHER MTD-736-0412
...
11
Blade Disc. MTD-14302
...
12
PULLEY-5/8 MTD-756-0483
...
13
L-Wash. 3/8" I.D. MTD-736-0169
...
14
Hex Nut 3/8-24 Thd. MTD-712-0241
...
15
Hex Bolt 7/16-20 x 2.0" Lg.Gr. 5 MTD-710-1002
...
16
COMPRESSION SPRING MTD-732-0527
...
17
Brake Cup Cone MTD-14305
...
18
EXTENSION SPRING MTD-732-0545
...
19
ADAPTER-FIXED PULL MTD-756-0504
...
20
MOVABLE PULLEY MTD-756-0503
...
21
Wave Washer MTD-736-0447
...
22
HEX NUT 5/16-18 MTD-712-3010
...
23
Bell-Wash. .336" I.D. x .860" O.D. MTD-736-0242
...
24
Hi-Wheel Frame MTD-16505
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
BELT GUARD-5/16 BOLT MTD-710-0973
...
27
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
28
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
29
HEX NUT 1/4-20 MTD-912-0287
...
30
L-Wash. 1/4" I.D. MTD-936-0329
...
31
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
32
TRANSMISSION (See Breakdown) MTD-917-0417B
...
33
CLUTCH CABLE 50" MTD-946-0650
...
34
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
35
PULLEY MTD-756-0330A
...
36
COVER-CHAI MTD-16504
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
39
#48 CHAIN MTD-713-0257
...
40
Hex Wash. TT-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
41
45 TOOTH CHAIN CASE MTD-16503
...
42
Hex B-Tap Scr. 1/4 X .38" Lg. MTD-710-0352
...
43
AXLE ASSEMBLY MTD-713-0402
...
44
HEX SCREW 1/4-28 X.875 GR5 MTD-710-0281
...
45
Hex Flange Brg. .631" I.D. x .320 MTD-741-0481
...
46
Fl-Wash. MTD-936-0256
...
47
SPACER-.630 x 1.25 MTD-748-0313
...
48
Hex Flange Brg. .631" I.D. x .720 MTD-741-0413
...
49
Hex Jam Nut 1/4-28 Thd. MTD-712-0314
...
50
V-BELT- 3/8 x 28 MTD-754-0327
...
51
SHOULDER SCREW MTD-938-0691
...
52
Fl-Wash. .390" I.D. x 1.00" O.D. MTD-736-0344
...
53
Fl-Idler Plastic 1.50" Dia. x .48 MTD-753-0518
...
54
SPRING WASHER BELL MTD-736-0270
...
55
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
56
BRACKET AS MTD-16502
...
57
L-Wash. #10 MTD-736-0722
...
58
Hex Bolt 1/4-20 X 1.25" Lg. MTD-710-0106
...
59
Hex Nut 1/4-28 Thd. MTD-712-0138
...
60
Hex Bolt 1/4-20 X 2.00" Lg. MTD-710-0501
...
61
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
63
Hex B-Tap Scr. 1/4 X .38" Lg. MTD-710-0352
...
64
L-Wash. 1/4" I.D. MTD-936-0329
...
65
CUP BEARING HEX MTD-16500A-0637
...
66
Fl-Wash. .406" I.D. x .734" O.D. MTD-736-0185
...
67
FLANGE BEARING MTD-741-0485
...
69
RIM STRIP MTD-734-1400
...
70
TUBE-16 x 2.12 MTD-734-1397
...
71
CHEVRON TIRE 16 x 2.125 MTD-734-1396
...
72
Hex Bolt Special 5/16-18 X 1.0" Lg. MTD-710-0376
...
73
Washer, Lock, 5/16 MTD-936-0104
...
74
HEX NUT MTD-712-0329
...
75
PAWL MTD-748-0315
...
76
COVER-WHEE MTD-14967
...
77
HEX NUT 5/16-18 MTD-712-3010
...
78
TAP SCREW MTD-710-0782
...
79
SPRING WASHER BELL MTD-736-0270
...
80
WHEEL RACHET MTD-748-0312
...
81
NEEDLE BEARING MTD-741-0482
...
82
WHEEL RIM 16.0 x 2 MTD-734-1399
...
83
WHEEL ASSEMBLY W/TIRE MTD-734-1398
...
84
CLUTCH CONE MTD-14304
