MTD 12553S (1985) Self Propelled Mower

Model: 12553S (1985)

Back To Assemblies

Save Part Not Listed?
product name

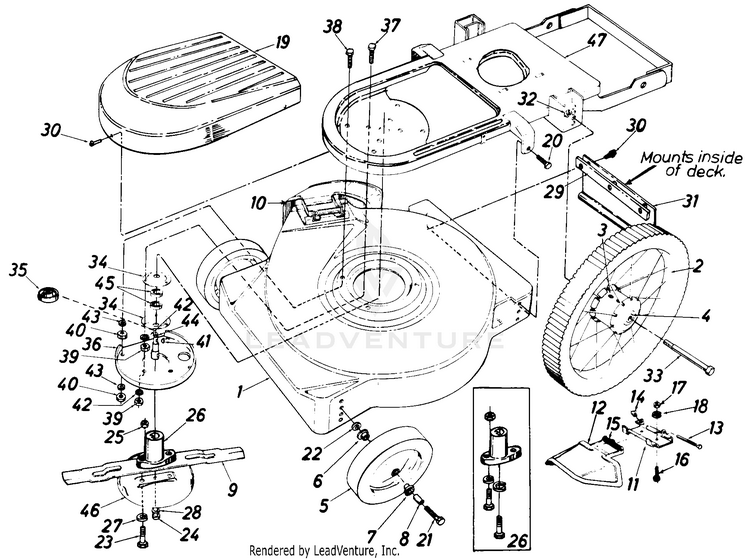

Rotary (Part 3)

...
...
1
DECK ASSEM MTD-14918
...
2
6" Wheel Ass'y. Comp. MTD-734-0438
...
xx
Rim Only MTD-734-0180
...
xx
TIRE-SEMI PNEU-16 x 1.75 MTD-734-0391
...
3
CAP-PLASTIC MTD-718-0132
...
4
BALL BEARING MTD-741-0113
...
5
WHEEL ASSEMBLY W/TIRE- MTD-734-1031
...
6
FORTIFLEX BEARING MTD-741-0267
...
7
BALL BEARING MTD-941-0484
...
8
Spacer MTD-750-0434
...
9
22" BLADE MTD-942-0125B
...
10
DEFLECTOR MTD-11679
...
11
ADAPTER PLATE MTD-11130
...
12
CHUTE DEFLECTO MTD-11141
...
13
PIVOT PIN MTD-711-0555
...
14
PUSH NUT MTD-726-0106
...
15
TORSION SPRING MTD-732-0253
...
16
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
Blade Spindle Cover MTD-08295
...
20
HEX SCREW SEMS 3/8-16 x .62 MTD-710-0209
...
21
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
22
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
23
Hex Bolt 5/16-24 x 1.00" Lg. MTD-710-0888
...
24
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331
...
25
Hex Nut 5/16-24 Thd. MTD-912-3057
...
26
Blade Adapter Kit MTD-753-0348
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
29
STRIP-RETA MTD-14836
...
30
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
31
FLAP-RR Mounts inside of deck MTD-731-0587
...
32
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
33
SHOULDER SCREW .498 DIA x 4.755 MTD-738-0114
...
34
Bearing Housing MTD-08253B
...
35
SHIELD-BRG MTD-13703
...
36
Blade Reinforcement Plate MTD-15486
...
37
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
38
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
39
Hex Nut 5/16-24 Thd. MTD-912-3057
...
40
Hex Nut 3/8-24 Thd. MTD-712-0241
...
41
#6 Hi-Pro Key 5/32" x 5/8" Dia. MTD-714-0365
...
42
Lock Wash. 5/16" I.D. MTD-936-0119
...
43
L-Wash. 3/8 I.D. MTD-736-0169
...
44
BLADE SPINDLE MTD-738-0552
...
45
BALL BEARING .787" I.D. x 1.85" O.D. MTD-749-0919
...
46
PLATE-ANTI SCALP MTD-07919
...
47
FRAME ASS'Y. MTD-15860
