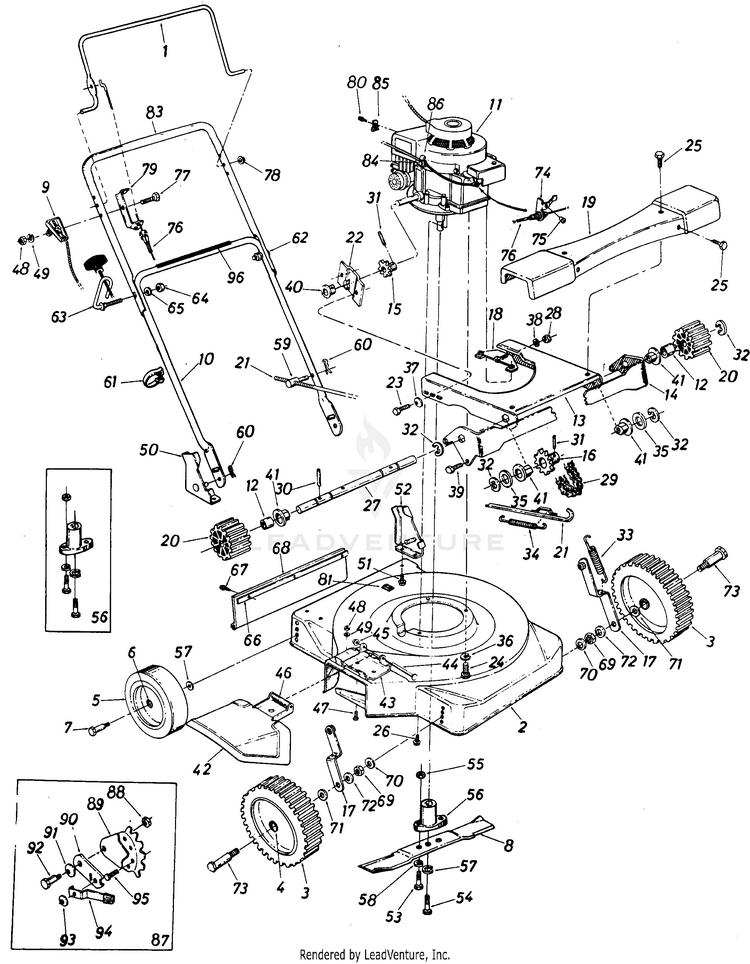

MTD 125-262-120 (1985) Self Propelled Mower

Model: 125-262-120 (1985)

Save Part Not Listed?
product name

Parts

...
...
1
HANDLE-CONTROL MTD-747-0500
...
2
DECK ASSEM MTD-14918
...
3
ASS'Y. COMP. (GEAR TREAD) MTD-734-1026
...
4
BALL BEARING MTD-941-0180
...
5
Wheel Ass'y.-Rear 8 x 1.75 MTD-NA
...
xx
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
xx
WHEEL ASSEMBLY MTD-734-0879
...
xx
SMOOTH TREAD MTD-734-0849
...
xx
ASS'Y. COMP. (GEAR TREAD) MTD-734-0538
...
6
Flange Brg. (Plastic) MTD-741-0262
...
7
Axle Bolt-Rear (260) MTD-738-0213
...
xx
Axle Bolt-Rear (262) MTD-738-0102
...
8
22" BLADE MTD-942-0125B
...
9
Throttle Control MTD-746-0800A
...
10
LOWER HANDLE MTD-749-0392
...
xx
LOWER HANDLE (PAINTED) MTD-749-0446
...
11
Engine MTD-NA
...
12
Crank Spacer .632" I.D. x .75" O.D. x .442 MTD-02265
...
13
PLATE-PIVO MTD-10370
...
14
Drive Support MTD-10372
...
15
SPROCKET A MTD-10377
...
16
SPROCKET A MTD-10378
...
17
Link Ass'y. (260) MTD-10918
...
18
BRACKET AS MTD-10381
...
19
Drive Cover MTD-10913
...
20
PINION-DRI MTD-10914
...
21
ROD ASSEMBLY-C MTD-12613
...
22
SUPPORT-BE MTD-13708
...
23
Hex "B"-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
24
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
25
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
26
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
27
SHAFT MTD-711-0435
...
28
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
29
#48 CHAIN 1/2 PITC MTD-713-0135
...
xx
#48 MASTER LINK MTD-713-0122
...
30
Roll Pin 3/16 x 1.25" MTD-915-0246
...
31
SPRING PIN MTD-715-0247
...
32
"E"-Ring for.625" Dia. Shaft MTD-716-0106
...
33
Spring MTD-932-0209
...
34
TENSION SPRING MTD-732-0433
...
35
Fl-Wash. .635" I.D. x .93" O.D. x .060 MTD-736-0116
...
36
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
38
Fl-Wash. .385" I.D. x .87" O.D. x .06 MTD-736-0300
...
39
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
40
FLANGE BEARING MTD-748-0142
...
41
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A
...
42
DEFLECTOR MTD-11679
...
43
ADAPTER PLATE MTD-11130
...
44
PIVOT PIN MTD-711-0555
...
45
PUSH NUT MTD-726-0106
...
46
TORSION SPRING MTD-732-0253
...
47
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
48
HEX NUT 1/4-20 MTD-912-0287
...
49
L-Wash. 1/4" I.D. MTD-936-0329
...
50
Handle Brkt. Ass'y.-R.H. MTD-14164
...
51
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
52
BRACKET-HA MTD-14165
...
53
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) (Special) MTD-710-0888
...
54
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
55
Hex Nut 5/16-24 Thd. MTD-912-3057
...
56
Blade Adapter Kit MTD-753-0348
...
57
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0217
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
59
ENGINE FERRULE MTD-711-0570
...
60
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
61
CABLE TIE MTD-726-0192
...
62
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
63
OPE GUIDE BOLT MTD-710-0842
...
64
HEX NUT 5/16-18 MTD-712-3010
...
65
Lock Wash. 5/16" I.D. MTD-936-0119
...
66
STRIP-RETA MTD-14836
...
67
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
68
FLAP-RR MTD-731-0667
...
69
JAM LOCK NUT (260 Only) MTD-712-0266A
...
70
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
71
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
72
Fl-Wash. .385" I.D. x .87" O.D. (260 Only) MTD-736-0300
...
73
AXLE BOLT-FRONT (260) MTD-738-0414
...
xx
SHOULDER SCREW .498 (262) MTD-738-0144
...
74
BRACKET-CA MTD-14924
...
75
Pop Rivet .156" Dia. x .379 MTD-726-0171
...
76
Control Cable - 49" MTD-946-0552
...
77
Hex Bolt 1/4-20 x 1.25" Lg.* MTD-710-0106
...
78
Cap Speed Nut 5/16" Rod MTD-726-0135
...
79
BRACKET-CA MTD-16201
...
80
Hex Wash. Hd. Self-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
81
PLUG MTD-731-0564
...
83
UPPER HANDLE MTD-749-0536
...
xx
UPPER HANDLE MTD-749-0538
...
84
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
85
CLAMP-CONDUIT MTD-751-0369
...
86
CABLE CLAMP MTD-12894
...
87
ADJUSTER A (262 Only) MTD-12321
...
xx
ADJUSTER A (262 Only) MTD-12322
...
88
Hex Cent. L-Nut 3/8-16 Thd. (262 Only) MTD-712-0375
...
89
PLATE-INDE (262 Only) MTD-12323
...
90
BAR-WHEEL (262 Only) MTD-10619
...
91
Belleville Washer (262 Only) MTD-736-0255
...
92
SHOULDER SCREW (262 Only) MTD-738-0269
...
93
Belleville Wash. 3/8" I.D. MTD-736-0105
...
94
SPRING LEVER ASS'Y. W/KNOB (262 Only) MTD-10531
...
95
HEX SCREW SEMS 3/8-16 x .62 (262 Only) MTD-710-0209
...
96
LABEL-10/2 MTD-777-3455
...
xx
Hardware Pack MTD-8260-000-5
